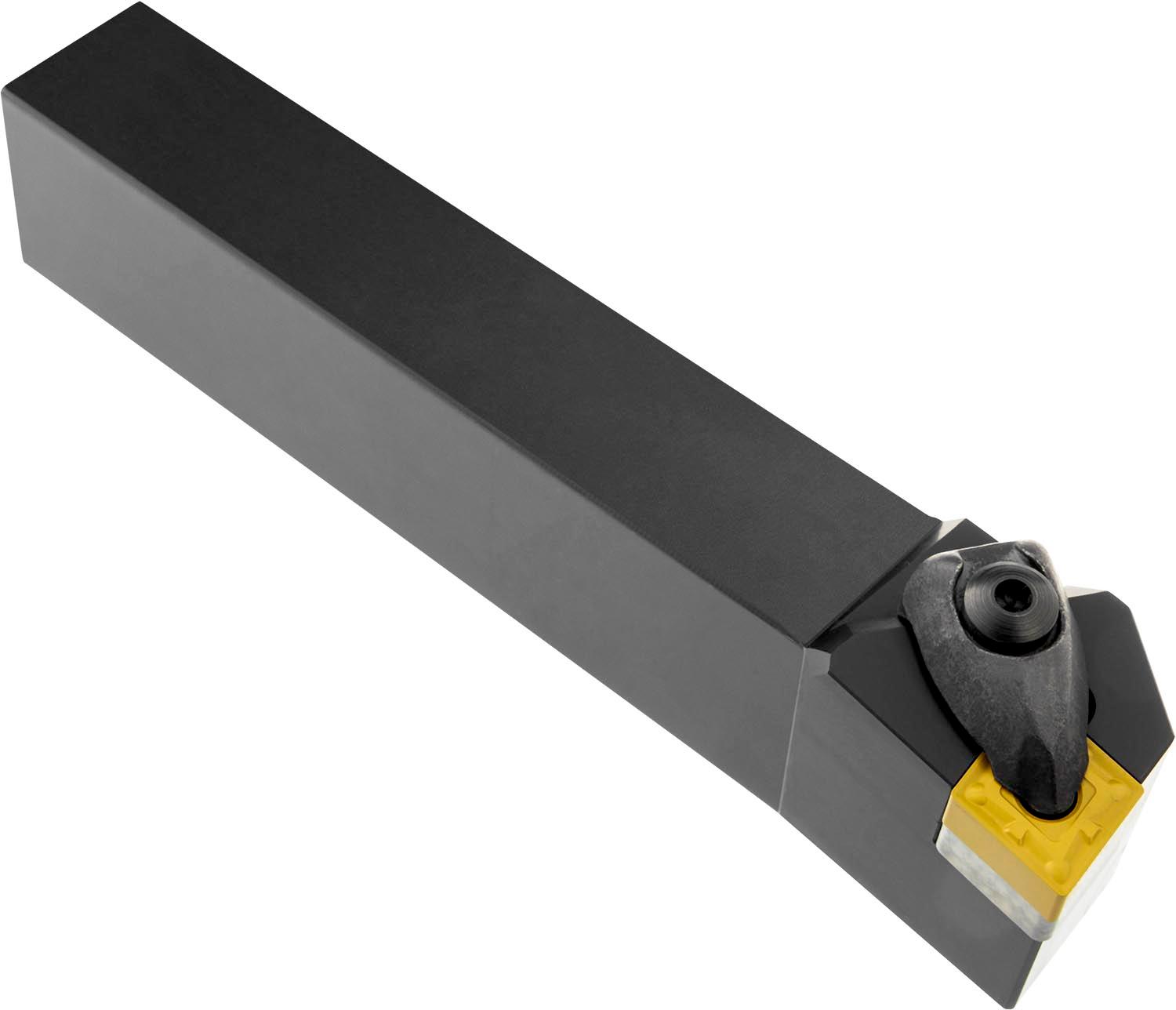

PRAMET DCLNL 2525 M 16 Turning holders external

Product Code: DCLNL 2525 M 16

$176.75$160.68 Ex. GST

Product Code: DCLNL 2525 M 16 SKU DCLNL 2525 M 16 Categories , ,
PRAMET DCLNL 2525 M 16 Turning holders external

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Double clamp turning tool for holding a 80° rhombus negative insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation CN.. 1204.. ), left hand 95° side and end cutting with off-set shank, 32mm tool height x 25mm width x 170mm long for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder

Additional information

Weight 0.1716 kg
barcode
Additional Information

Description: Value
EAN number: 3603603105256
Product number (SAP): 86026950
Ordering code ANSI: DCLNL 2525 M 16
Gross weight – grams: 810.3
Shank height – millimeter (H): 25 mm
Shank width – millimeter (B): 25 mm
Functional height – millimeter (HF): 25 mm
Functional width – millimeter (WF): 32 mm
Functional length – millimeter (LF): 150 mm
Head length – millimeter (LH): 39 mm
Inclination angle (LAMS): -6
Orthogonal rake angle (GAMO): -6
Net weight – grams: 805
Insert size: 16
ISO: DCLNL2525M16

Brand

PRAMET
