PRAMET DCLNR 1616 H 09 Turning holders external

Product Code: DCLNR 1616 H 09

$150.69$136.99 Ex. GST

Product Code: DCLNR 1616 H 09 SKU DCLNR 1616 H 09 Categories , ,
PRAMET DCLNR 1616 H 09 Turning holders external

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

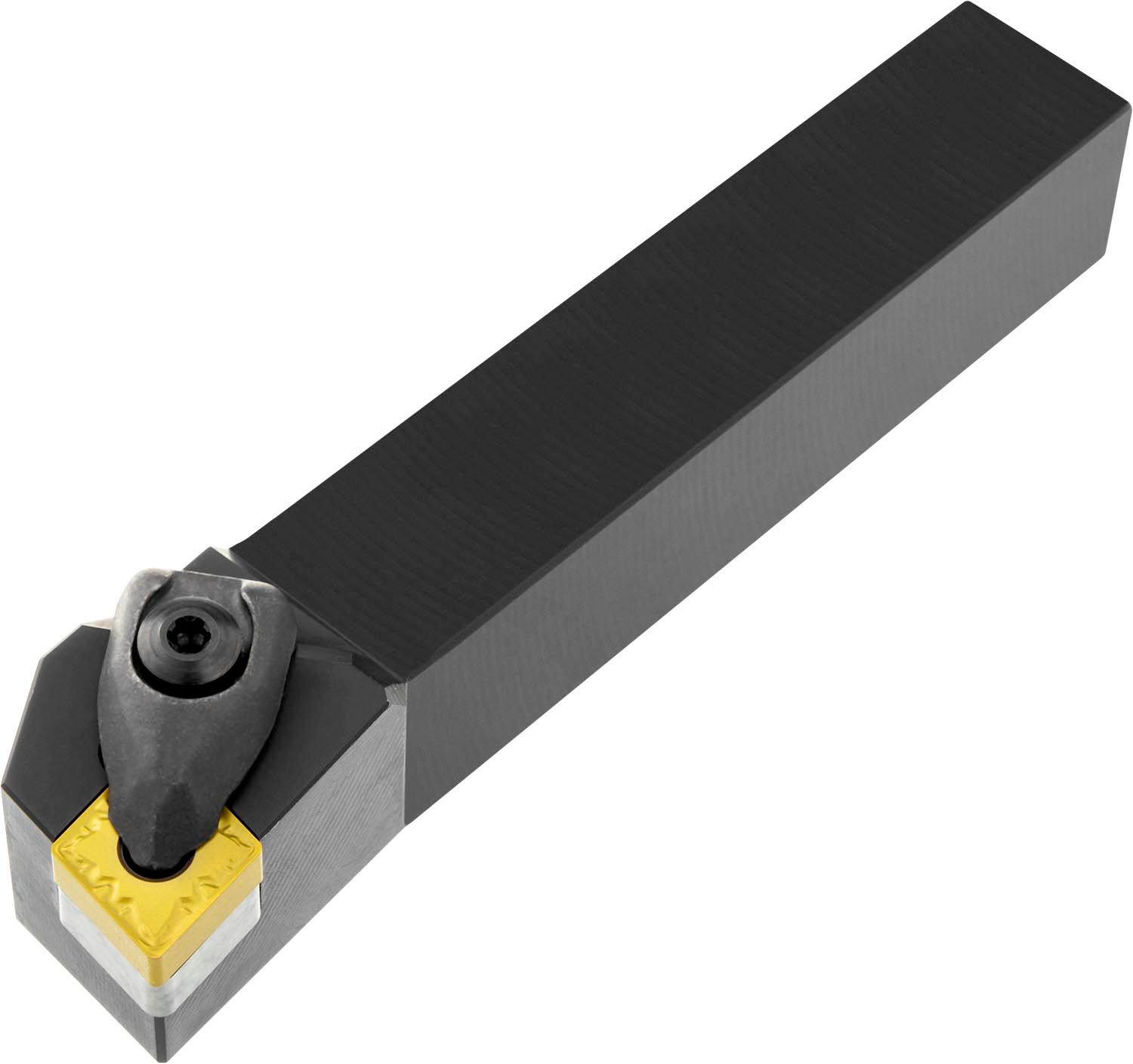

Double clamp turning tool for holding a 80° rhombus negative insert with an inscribed circle diameter of 9.525mm, 3.18mm thick (ISO designation CN.. 0903.. ), right hand 95° side and end cutting with off-set shank, 16mm tool height x 16mm width x 100mm long for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder

Additional information

Weight 0.1463 kg
barcode
Additional Information

Description: Value
EAN number: 3603602932723
Product number (SAP): 84003692
Ordering code ANSI: DCLNR 1616 H 09
Gross weight – grams: 243.5
Shank height – millimeter (H): 16 mm
Shank width – millimeter (B): 16 mm
Functional height – millimeter (HF): 16 mm
Functional width – millimeter (WF): 20 mm
Functional length – millimeter (LF): 100 mm
Head length – millimeter (LH): 25 mm
Inclination angle (LAMS): -6
Orthogonal rake angle (GAMO): -6
Net weight – grams: 243.5
Insert size: 09
ISO: DCLNR1616H09

Brand

PRAMET
