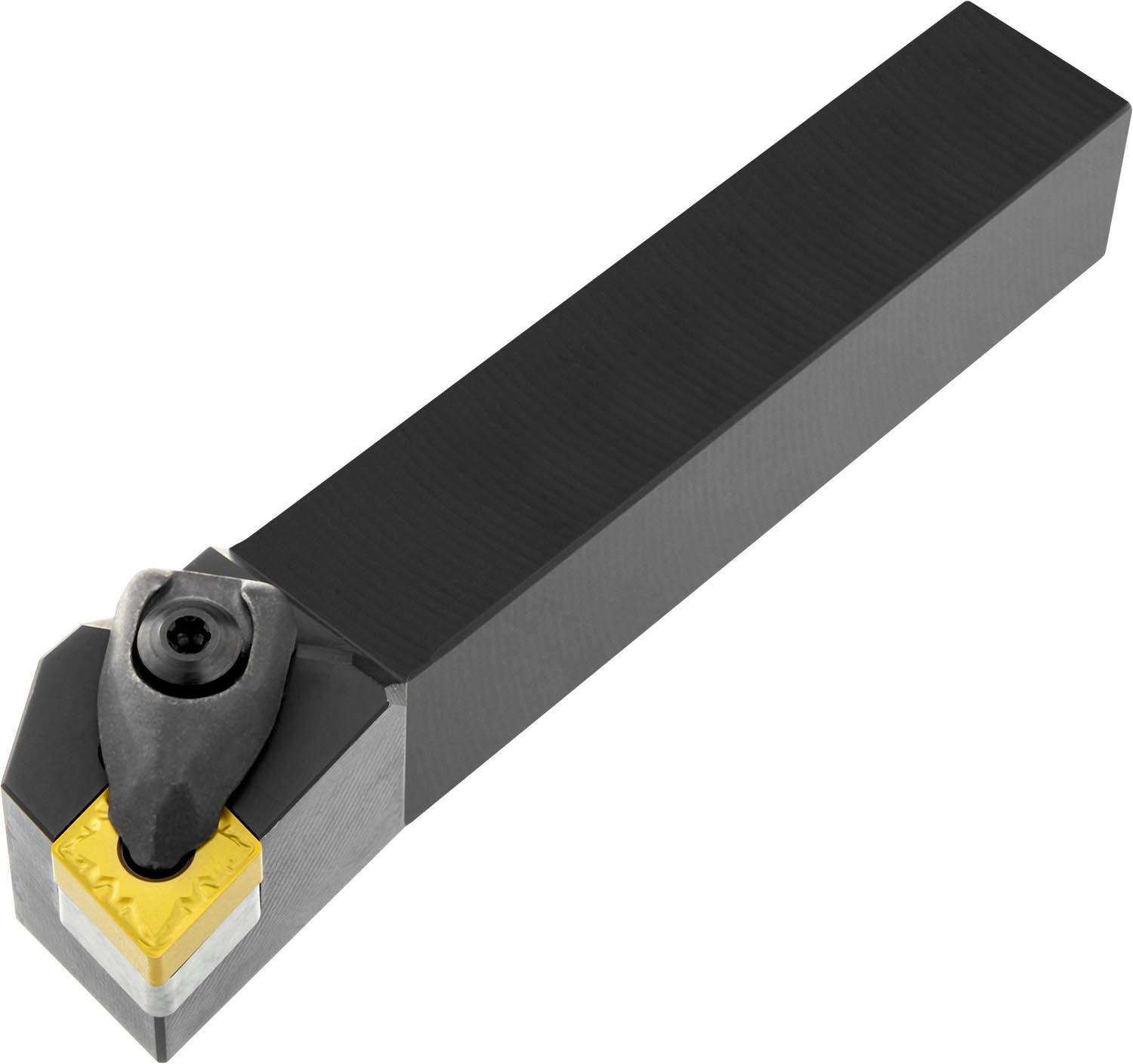

PRAMET DCLNR 1616 H 12 Turning holders external

Description

Double clamp turning tool for holding a 80° rhombus negative insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation CN.. 1204.. ), right hand 95° side and end cutting with off-set shank, 16mm tool height x 16mm width x 100mm long for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder

Additional information

Weight	0.1463 kg
barcode
Additional Information	Description: Value EAN number: 3603603105270 Product number (SAP): 86026951 Ordering code ANSI: DCLNR 1616 H 12 Gross weight – grams: 257 Shank height – millimeter (H): 16 mm Shank width – millimeter (B): 16 mm Functional height – millimeter (HF): 16 mm Functional width – millimeter (WF): 20 mm Functional length – millimeter (LF): 100 mm Head length – millimeter (LH): 32.3 mm Head bottom offset width – millimeter (HBKW): 4.5 mm Inclination angle (LAMS): -6 Orthogonal rake angle (GAMO): -6 Net weight – grams: 257 Insert size: 12 ISO: DCLNR1616H12
