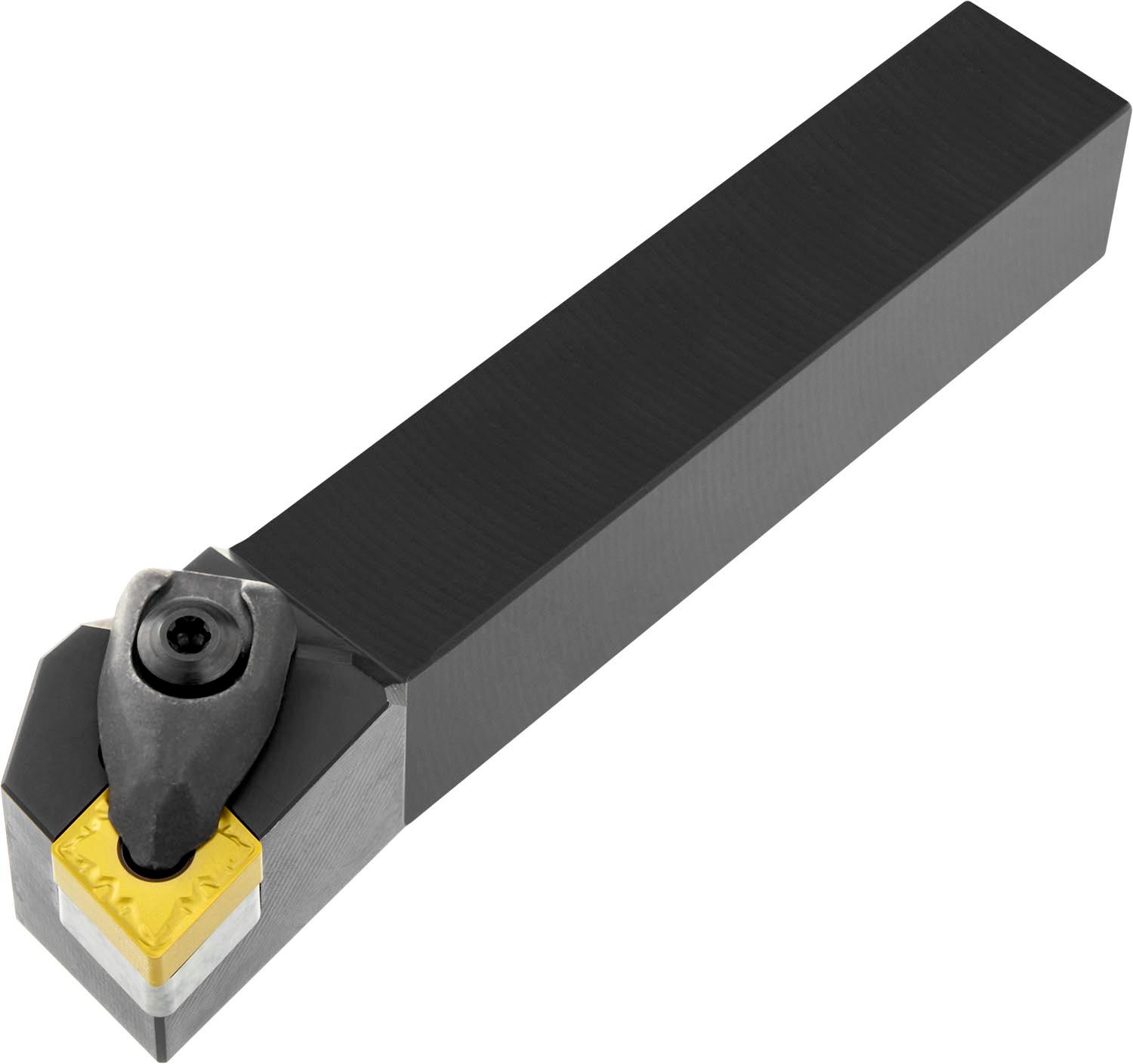

PRAMET DCLNR 3232 P 19 Turning holders external

Description

Double clamp turning tool for holding a 80° rhombus negative insert with an inscribed circle diameter of 19.05mm, 6.35mm thick (ISO designation CN.. 1906.. ), right hand 95° side and end cutting with off-set shank, 32mm tool height x 32mm width x 170mm long for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder

Additional information

Weight	0.231 kg
barcode
Additional Information	Description: Value EAN number: 3603602932860 Product number (SAP): 84003707 Ordering code ANSI: DCLNR 3232 P 19 Gross weight – grams: 1416.5 Shank height – millimeter (H): 32 mm Shank width – millimeter (B): 32 mm Functional height – millimeter (HF): 32 mm Functional width – millimeter (WF): 40 mm Functional length – millimeter (LF): 170 mm Head length – millimeter (LH): 40 mm Inclination angle (LAMS): -6 Orthogonal rake angle (GAMO): -6 Net weight – grams: 1400 Insert size: 19 ISO: DCLNR3232P19
