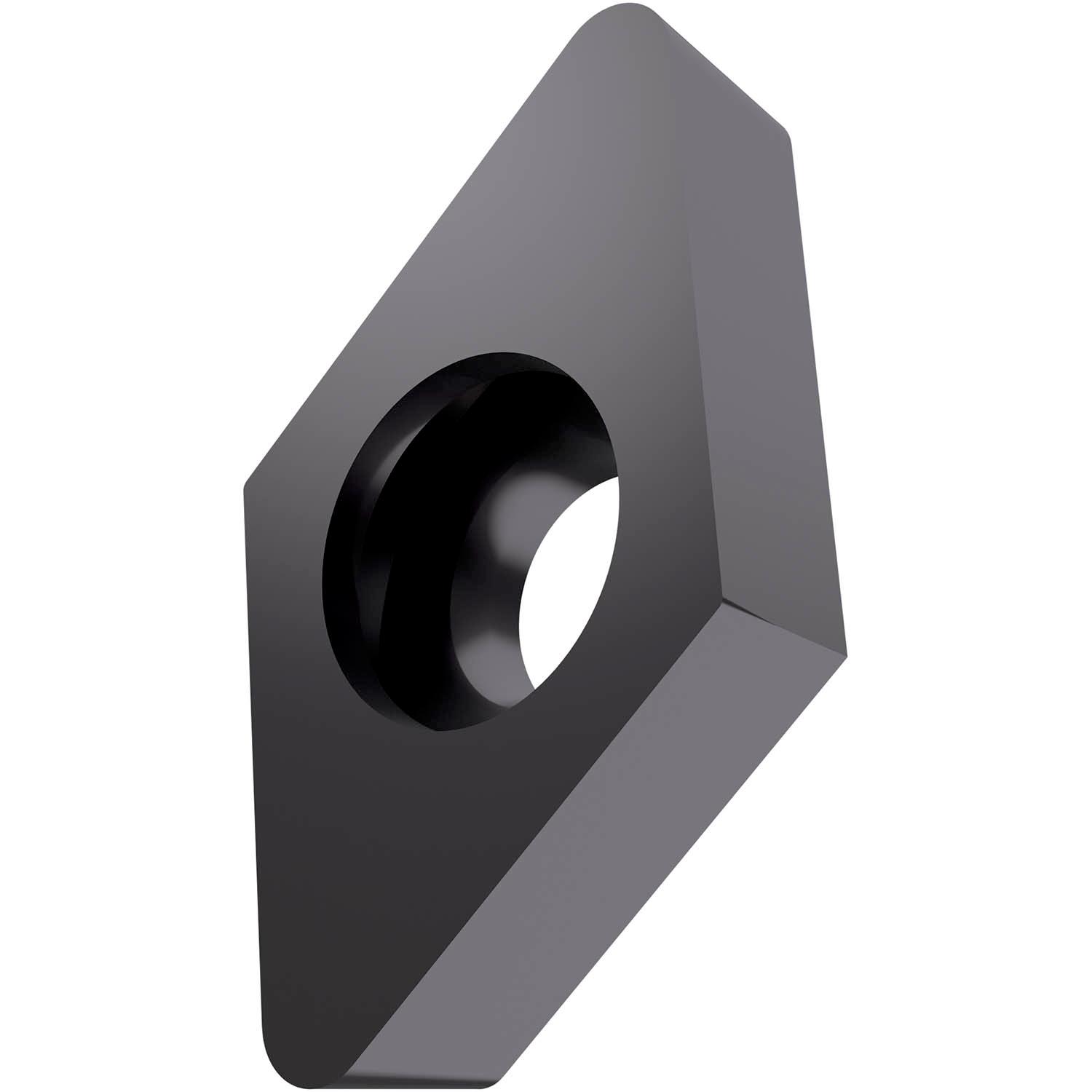

PRAMET DCMW 070204:T6310 Turning inserts positive

Description: Value
EAN number: 3603603172241
Product number (SAP): 80028463
Ordering code ANSI: DCMW 21.51:T6310
Gross weight – grams: 2.4
Inscribed circle diameter – millimeter (IC): 6.35 mm
Fixing hole diameter – millimeter (D1): 2.8 mm
Cutting edge length – millimeter (L): 7.8 mm
Insert thickness – millimeter (S): 2.38 mm
Grade: T6310
Corner radius – millimeter (RE): 0.4 mm
Insert Clearance Code and Angle: C 7°
Insert Design: DCMW
Insert size: 07
Insert Thickness: 02
Insert Type: W
Chipbreaker manufacturer's designation (CBMD): No chipbreaker
Insert shape code (SC): D – rhombic 55° included angle
Tool Design: DC
Insert Geometry: Positive
ISO: DCMW070204:T6310
