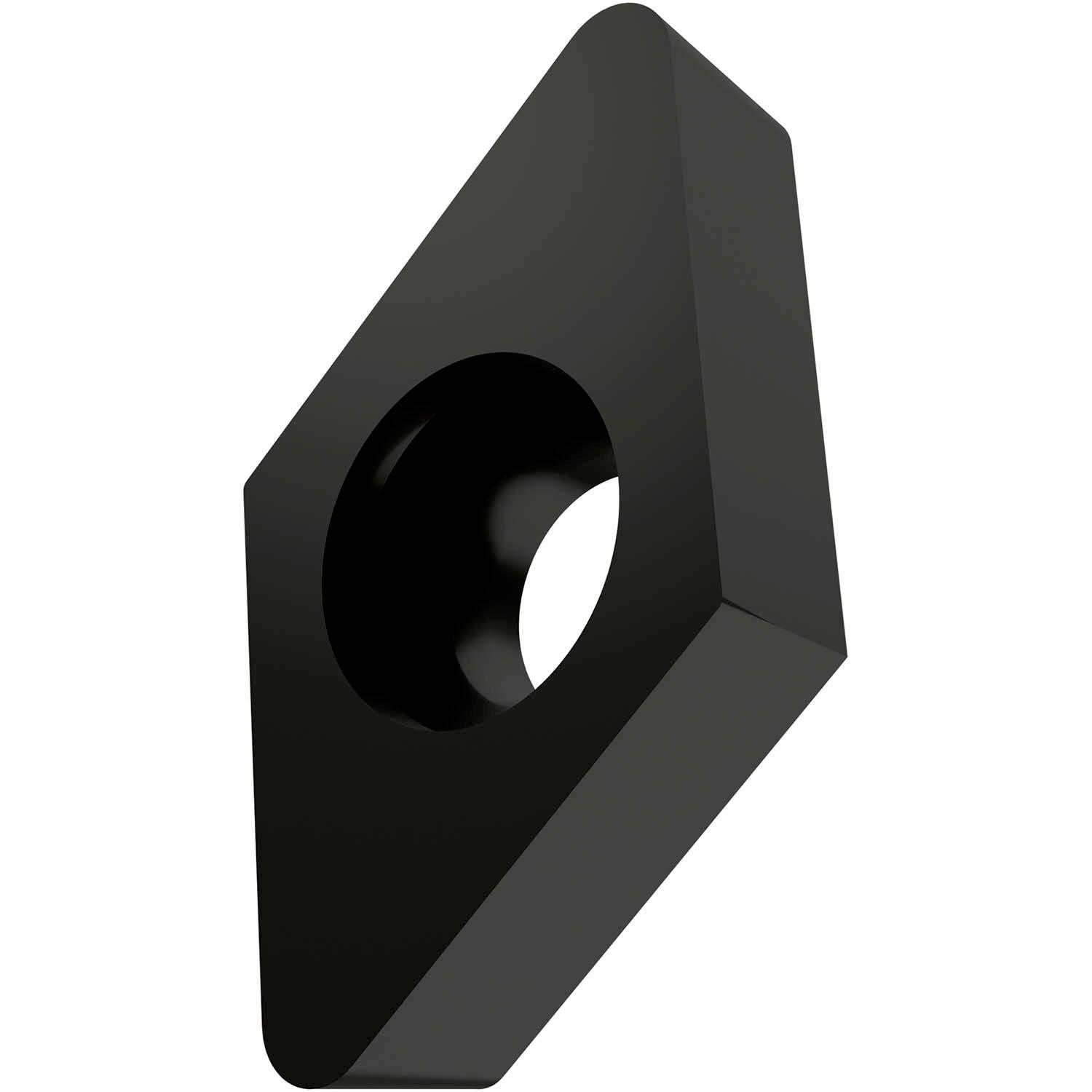

PRAMET DCMW 11T308:T5305 Turning inserts positive

Description: Value
EAN number: 3603602911865
Product number (SAP): 80022975
Ordering code ANSI: DCMW 32.52:T5305
Gross weight – grams: 4.827
Inscribed circle diameter – millimeter (IC): 9.525 mm
Fixing hole diameter – millimeter (D1): 4.4 mm
Cutting edge length – millimeter (L): 11.6 mm
Insert thickness – millimeter (S): 3.97 mm
Grade: T5305
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: C 7°
Insert Design: DCMW
Insert size: 11
Insert Thickness: T3
Insert Type: W
Chipbreaker manufacturer's designation (CBMD): No chipbreaker
Insert shape code (SC): D – rhombic 55° included angle
Tool Design: DC
Insert Geometry: Positive
ISO: DCMW11T308:T5305
