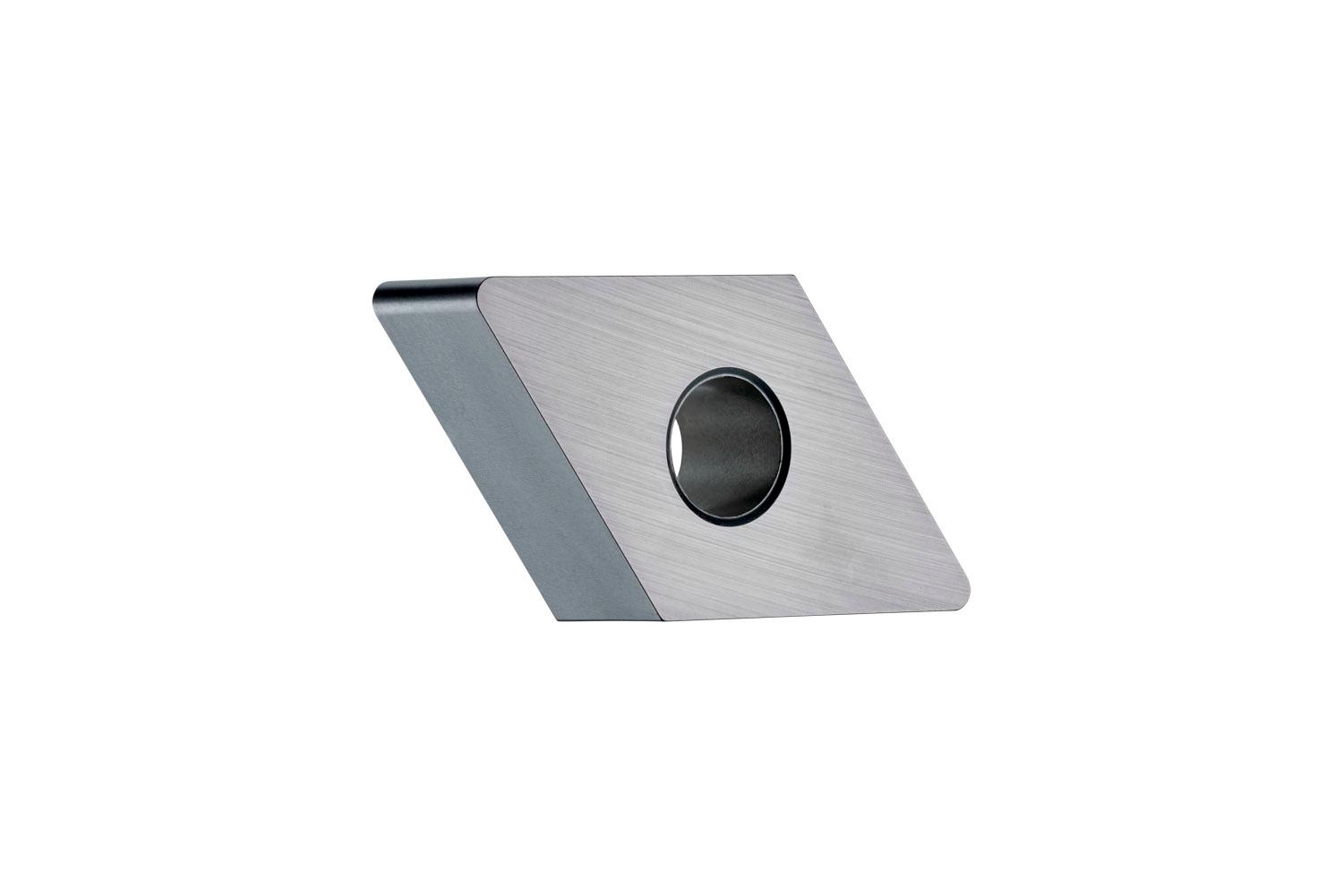

PRAMET DNMA 150604:T6310 Turning inserts negative

Description: Value
EAN number: 3603603076822
Product number (SAP): 80026321
Ordering code ANSI: DNMA 441:T6310
Gross weight – grams: 16.379
Inscribed circle diameter – millimeter (IC): 12.7 mm
Fixing hole diameter – millimeter (D1): 5.16 mm
Cutting edge length – millimeter (L): 15.5 mm
Insert thickness – millimeter (S): 6.35 mm
Grade: T6310
Corner radius – millimeter (RE): 0.4 mm
Insert Clearance Code and Angle: N 0°
Insert Design: DNMA
Insert size: 15
Insert Thickness: 06
Insert Type: A
Chipbreaker manufacturer's designation (CBMD): No chipbreaker
Insert shape code (SC): D – rhombic 55° included angle
Tool Design: DN
Insert Geometry: Negative
ISO: DNMA150604:T6310
