PRAMET DNMA 150612:T5010 Focus Products

Product Code: DNMA 150612:T5010

$19.71$17.92 Ex. GST

Product Code: DNMA 150612:T5010 SKU DNMA 150612:T5010 Categories CUTTING TOOLS (HSS & Carbide), Turning

PRAMET DNMA 150612:T5010 Focus Products

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

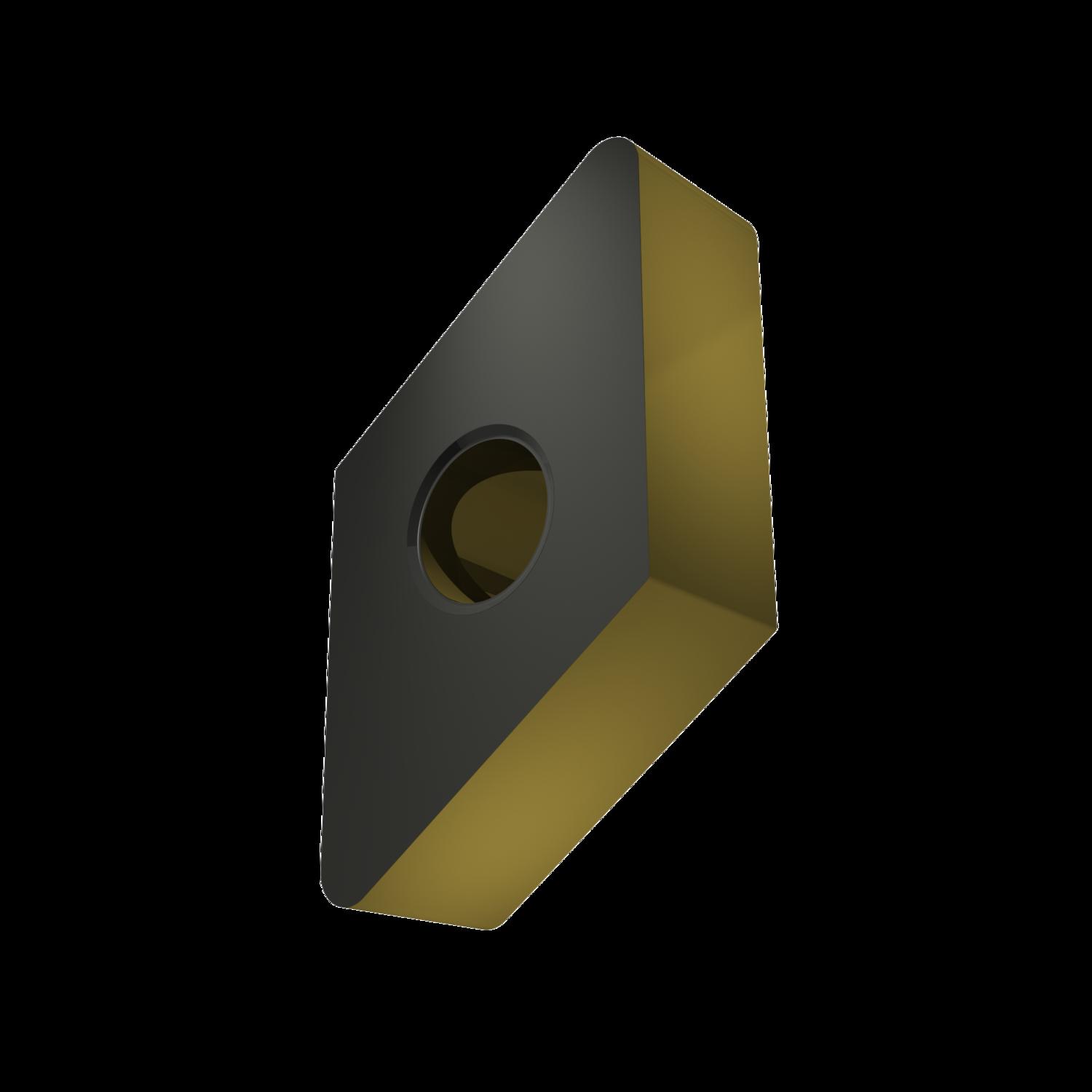

Double-sided negative turning insert, 55° rhomboid with inscribed circle diameter of 12.7mm, nose radius and indexing accuracy according to ISO-tolerance class-M, coated WC-Co carbide, for fine to medium machining.

Additional information

Weight	0.0165 kg
barcode	3603604165402
Additional Information	Description: Value EAN number: 3603604165402 Product number (SAP): 80035924 Ordering code ANSI: DNMA 443:T5010 Gross weight – grams: 16.467 Inscribed circle diameter – millimeter (IC): 12.7 mm Fixing hole diameter – millimeter (D1): 5.16 mm Cutting edge length – millimeter (L): 15.5 mm Insert thickness – millimeter (S): 6.35 mm Grade: T5010 Corner radius – millimeter (RE): 1.2 mm Insert Clearance Code and Angle: N 0° Insert Design: DNMA Insert size: 15 Insert Thickness: 06 Insert Type: A Chipbreaker manufacturer's designation (CBMD): No chipbreaker Insert shape code (SC): D – rhombic 55° included angle Tool Design: DN Insert Geometry: Negative ISO: DNMA150612:T5010
