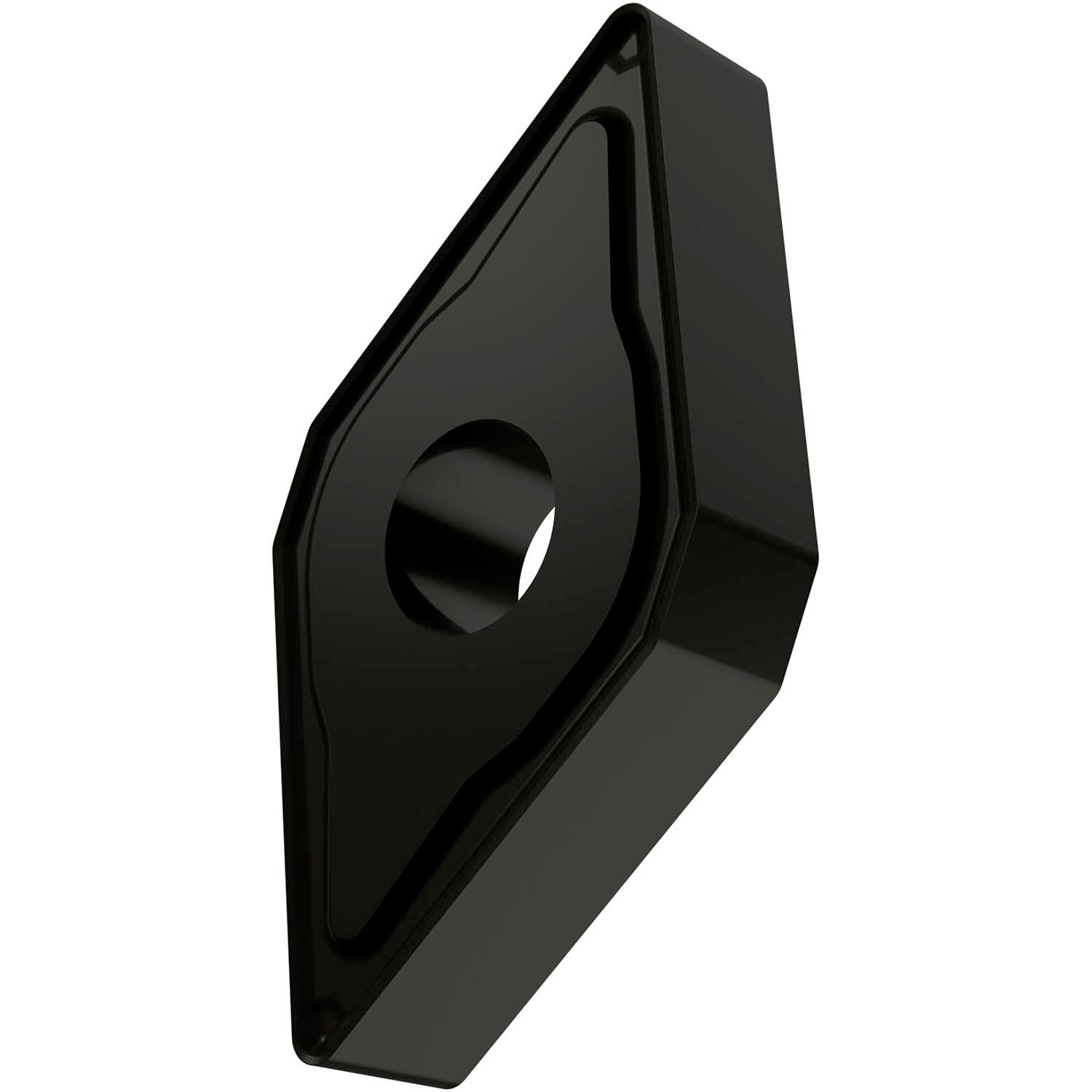

PRAMET DNMG 110404E-NM:T9325 Turning inserts negative

Description

Double-sided negative turning insert, 55° rhomboid with inscribed circle diameter of 9.525mm, 4.76mm thick, 0.4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker NM with rounded cutting edges, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P15 -P35 and M10 -M30, for fine to heavy machining of steels and stainless-steels

Additional information

Weight	0.0229 kg
barcode
Additional Information	Description: Value EAN number: 3603602893086 Product number (SAP): 80015998 Ordering code ANSI: DNMG 331-NM:T9325 Gross weight – grams: 6.021 Inscribed circle diameter – millimeter (IC): 9.525 mm Fixing hole diameter – millimeter (D1): 3.81 mm Cutting edge length – millimeter (L): 11.6 mm Insert thickness – millimeter (S): 4.76 mm Grade: T9325 Corner radius – millimeter (RE): 0.4 mm Insert Clearance Code and Angle: N 0° Insert Design: DNMG Insert size: 11 Insert Thickness: 04 Insert Type: G Chipbreaker manufacturer's designation (CBMD): NM Insert shape code (SC): D – rhombic 55° included angle Tool Design: DN Insert Geometry: Negative ISO: DNMG110404E-NM:T9325

Need Technical Advice?

Description

Additional information

Brand

PRAMET
