PRAMET DNMG 110404E-SF:T6310 Turning inserts negative

Description

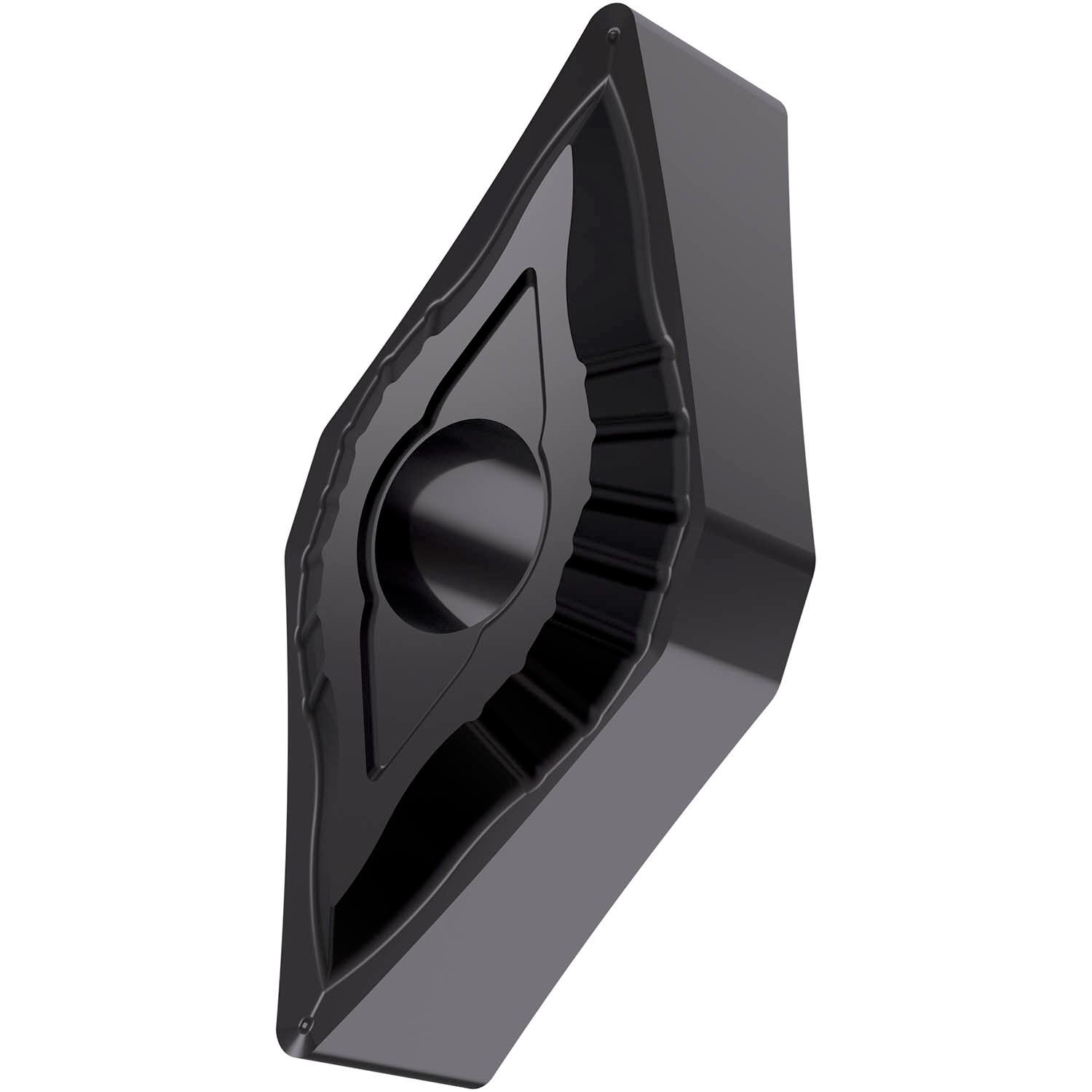

Double-sided negative turning insert, 55° rhomboid with inscribed circle diameter of 9.525mm, 4.76mm thick, 0.4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker SF with rounded cutting edges, in grade T6310, a PVD coated extra fine grained WC-Co carbide within ISO ranges P01 -P15/M01 -M15/K05 -K20/S01 -S15 and H01 -H15, for fine to medium machining of steels, stainless-steels, cast-irons, super-alloys and hardened materials

Additional information

Weight	0.0229 kg
barcode
Additional Information	Description: Value EAN number: 3603603073180 Product number (SAP): 80025989 Ordering code ANSI: DNMG 331-SF:T6310 Gross weight – grams: 6.154 Inscribed circle diameter – millimeter (IC): 9.525 mm Fixing hole diameter – millimeter (D1): 3.81 mm Cutting edge length – millimeter (L): 11.6 mm Insert thickness – millimeter (S): 4.76 mm Grade: T6310 Corner radius – millimeter (RE): 0.4 mm Insert Clearance Code and Angle: N 0° Insert Design: DNMG Insert size: 11 Insert Thickness: 04 Insert Type: G Chipbreaker manufacturer's designation (CBMD): SF Insert shape code (SC): D – rhombic 55° included angle Tool Design: DN Insert Geometry: Negative ISO: DNMG110404E-SF:T6310

Need Technical Advice?

Description

Additional information

Brand

PRAMET
