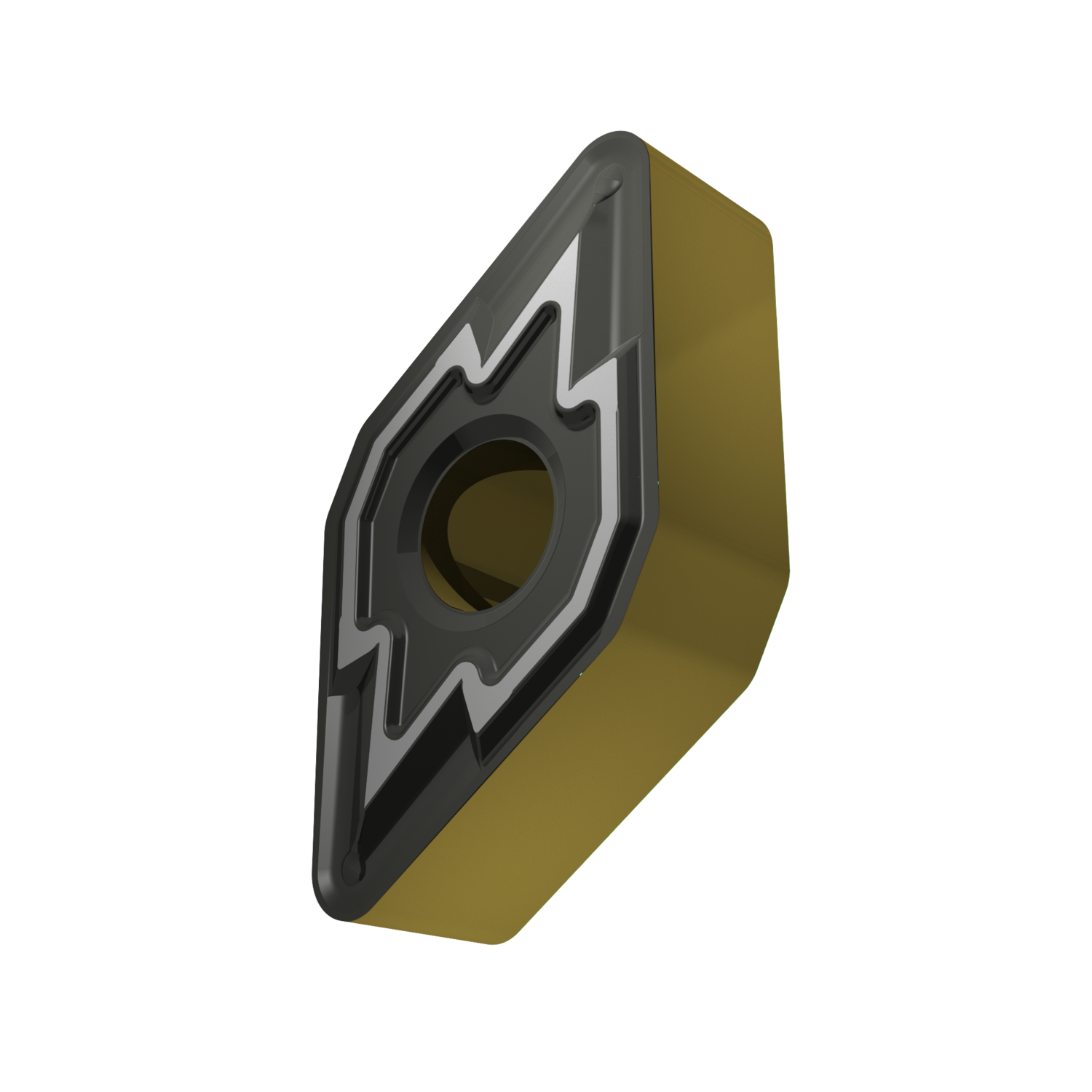

PRAMET DNMG 110412E-M:T9415 Turning inserts negative

Description

Double-sided negative turning insert, 55° rhomboid with inscribed circle diameter of 9.525mm, 4.76mm thick, 1.2mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker M with rounded cutting edges, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 -P30, for fine to heavy machining of steels

Additional information

Weight	0.0061 kg
barcode	3603604107648
Additional Information	Description: Value EAN number: 3603604107648 Product number (SAP): 80035405 Ordering code ANSI: DNMG 333-M:T9415 Gross weight – grams: 7.37 Inscribed circle diameter – millimeter (IC): 9.525 mm Fixing hole diameter – millimeter (D1): 3.81 mm Cutting edge length – millimeter (L): 11.6 mm Insert thickness – millimeter (S): 4.76 mm Grade: T9415 Corner radius – millimeter (RE): 1.2 mm Insert Clearance Code and Angle: N 0° Insert Design: DNMG Insert size: 11 Insert Type: G Chipbreaker manufacturer's designation (CBMD): M Insert shape code (SC): D – rhombic 55° included angle Tool Design: DN Insert Geometry: Negative ISO: DNMG110412E-M:T9415
