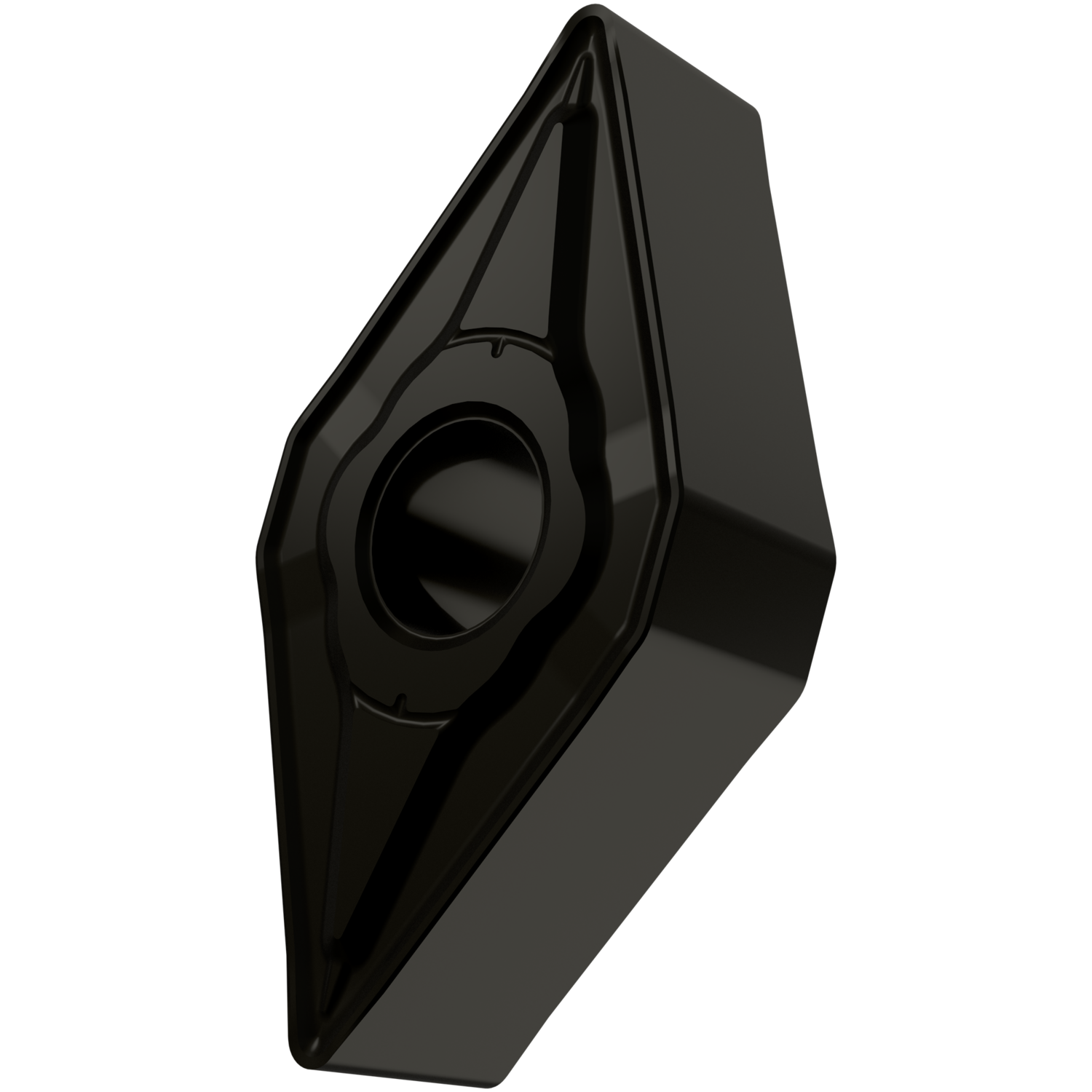

PRAMET DNMG 150608-NRM:T7335 Turning inserts negative

Description

Double-sided negative turning insert, 55° rhomboid with inscribed circle diameter of 12.7mm, 6.35mm thick, 0.8mm nose radius and indexing accuracy according to ISO-tolerance class-M, chip-breaker NRM, in grade T7335, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges M20 -M40 and S15 -S25, for medium to heavy machining of stainless-steels and super-alloys

Additional information

Weight	0.0295 kg
barcode
Additional Information	Description: Value EAN number: 3603603511088 Product number (SAP): 80031043 Ordering code ANSI: DNMG 442-NRM:T7335 Gross weight – grams: 14.327 Inscribed circle diameter – millimeter (IC): 12.7 mm Fixing hole diameter – millimeter (D1): 5.16 mm Cutting edge length – millimeter (L): 15.5 mm Insert thickness – millimeter (S): 6.35 mm Grade: T7335 Corner radius – millimeter (RE): 0.8 mm Insert Clearance Code and Angle: N 0° Insert Design: DNMG Insert size: 15 Insert Thickness: 06 Insert Type: G Chipbreaker manufacturer's designation (CBMD): NRM Insert shape code (SC): D – rhombic 55° included angle Tool Design: DN Insert Geometry: Negative ISO: DNMG150608-NRM:T7335
