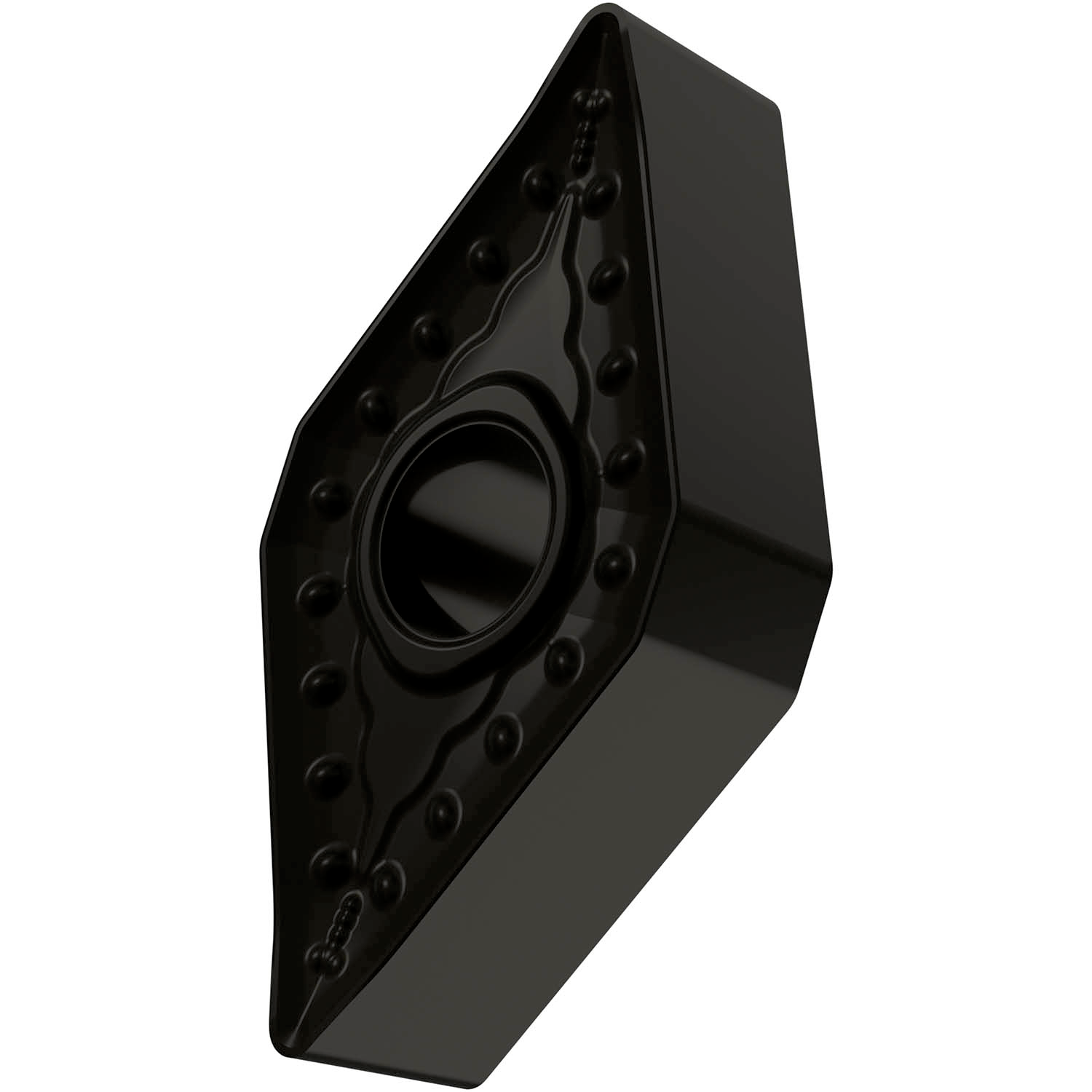

PRAMET DNMM 150608E-OR:T9325 Turning inserts negative

Description

Double-sided negative turning insert, 55° rhomboid with inscribed circle diameter of 12.7mm, 6.35mm thick, 0.8mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker OR with rounded cutting edges, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15 -P35, for medium to extra heavy machining of steels

Additional information

Weight	0.0295 kg
barcode
Additional Information	Description: Value EAN number: 3603602893413 Product number (SAP): 80016034 Ordering code ANSI: DNMM 442-OR:T9325 Gross weight – grams: 16.4 Inscribed circle diameter – millimeter (IC): 12.7 mm Fixing hole diameter – millimeter (D1): 5.16 mm Cutting edge length – millimeter (L): 15.5 mm Insert thickness – millimeter (S): 6.35 mm Grade: T9325 Corner radius – millimeter (RE): 0.8 mm Insert Clearance Code and Angle: N 0° Insert Design: DNMM Insert size: 15 Insert Thickness: 06 Insert Type: M Chipbreaker manufacturer's designation (CBMD): OR_ Insert shape code (SC): D – rhombic 55° included angle Tool Design: DN Insert Geometry: Negative ISO: DNMM150608E-OR:T9325
