PRAMET DRSNL 2525 M 12 Turning holders external

Product Code: DRSNL 2525 M 12

$176.75$160.68 Ex. GST

Product Code: DRSNL 2525 M 12 SKU DRSNL 2525 M 12 Categories , ,
PRAMET DRSNL 2525 M 12 Turning holders external

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

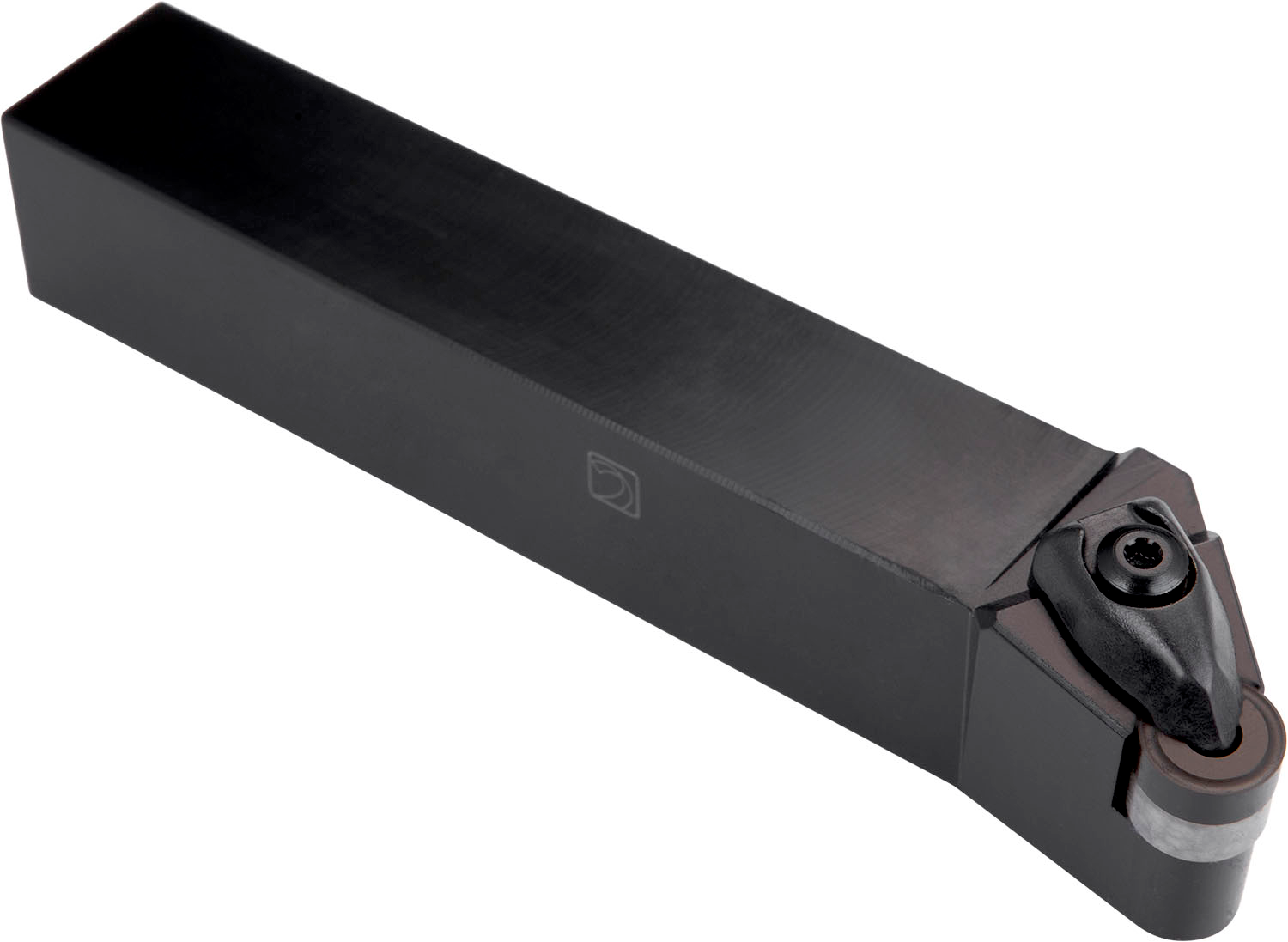

Double clamp turning tool for holding a round negative insert with a diameter of 12.7mm, 4.76mm thick (ISO designation RN.. 120400 ), left hand side cutting with off-set shank, 25mm tool height x 25mm width x 150mm long for taper turning, face turning without shoulder and longitudinal turning without shoulder

Additional information

Weight 0.1716 kg
barcode
Additional Information

Description: Value
EAN number: 3603603105324
Product number (SAP): 86026954
Ordering code ANSI: DRSNL 2525 M 12
Gross weight – grams: 747
Shank height – millimeter (H): 25 mm
Shank width – millimeter (B): 25 mm
Functional height – millimeter (HF): 25 mm
Functional width – millimeter (WF): 32 mm
Functional length – millimeter (LF): 150 mm
Head length – millimeter (LH): 31.6 mm
Inclination angle (LAMS): -6
Orthogonal rake angle (GAMO): -6
Net weight – grams: 747
Insert size: 12
ISO: DRSNL2525M12

Brand

PRAMET
