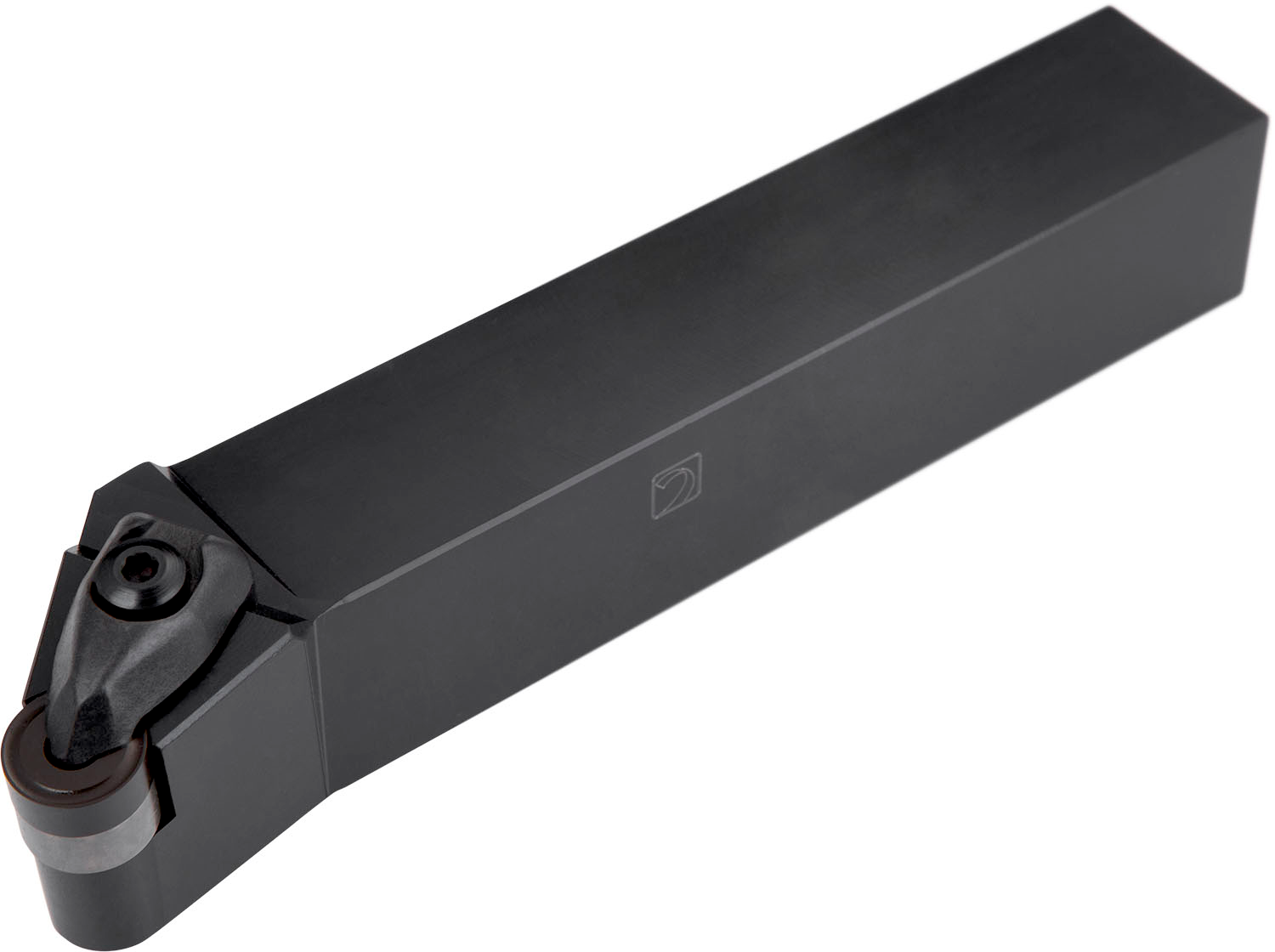

PRAMET DRSNR 2525 M 12 Turning holders external

Description

Double clamp turning tool for holding a round negative insert with a diameter of 12.7mm, 4.76mm thick (ISO designation RN.. 120400 ), right hand side cutting with off-set shank, 25mm tool height x 25mm width x 150mm long for taper turning, face turning without shoulder and longitudinal turning without shoulder

Additional information

Weight	0.1716 kg
barcode
Additional Information	Description: Value EAN number: 3603603105331 Product number (SAP): 86026955 Ordering code ANSI: DRSNR 2525 M 12 Gross weight – grams: 744.5 Shank height – millimeter (H): 25 mm Shank width – millimeter (B): 25 mm Functional height – millimeter (HF): 25 mm Functional width – millimeter (WF): 32 mm Functional length – millimeter (LF): 150 mm Head length – millimeter (LH): 31.6 mm Inclination angle (LAMS): -6 Orthogonal rake angle (GAMO): -6 Net weight – grams: 744.5 Insert size: 12 ISO: DRSNR2525M12

Need Technical Advice?

Description

Additional information

Brand

PRAMET
