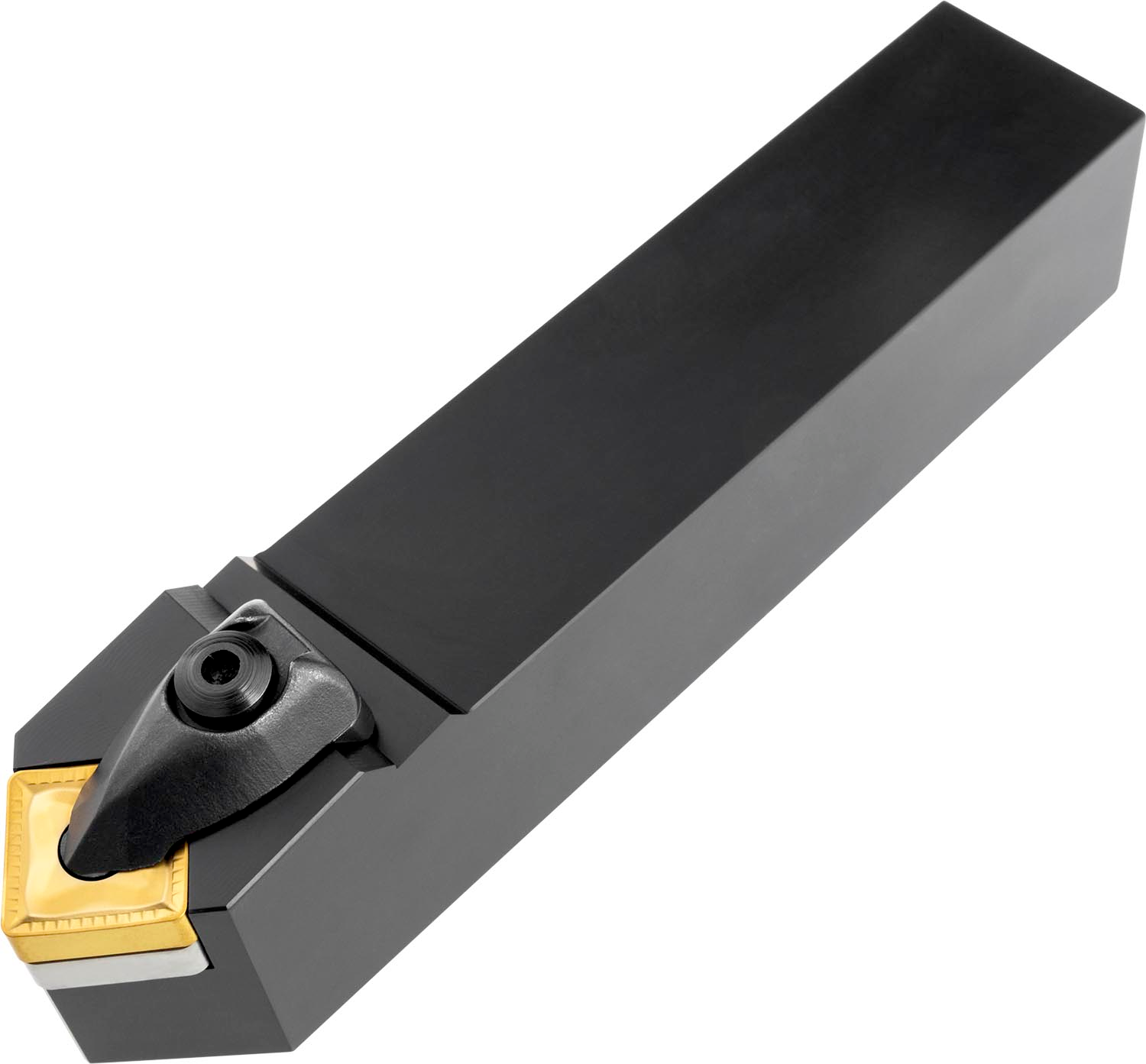

PRAMET DSDNN 2525 M 12 Turning holders external

Product Code: DSDNN 2525 M 12

$176.75$160.68 Ex. GST

Product Code: DSDNN 2525 M 12 SKU DSDNN 2525 M 12 Categories , ,
PRAMET DSDNN 2525 M 12 Turning holders external

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Double clamp turning tool for holding a square negative insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation SN.. 1204.. ), neutral hand 45° side cutting with straight shank, 25mm tool height x 25mm width x 150mm long for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning without shoulder

Additional information

Weight 0.1716 kg
barcode
Additional Information

Description: Value
EAN number: 3603603105409
Product number (SAP): 86026960
Ordering code ANSI: DSDNN 2525 M 12
Gross weight – grams: 744.6
Shank height – millimeter (H): 25 mm
Shank width – millimeter (B): 25 mm
Functional height – millimeter (HF): 25 mm
Functional width – millimeter (WF): 12.8 mm
Functional length – millimeter (LF): 150 mm
Head length – millimeter (LH): 36.5 mm
Inclination angle (LAMS): -6
Orthogonal rake angle (GAMO): -6
Net weight – grams: 741
Insert size: 12
ISO: DSDNN2525M12

Brand

PRAMET
