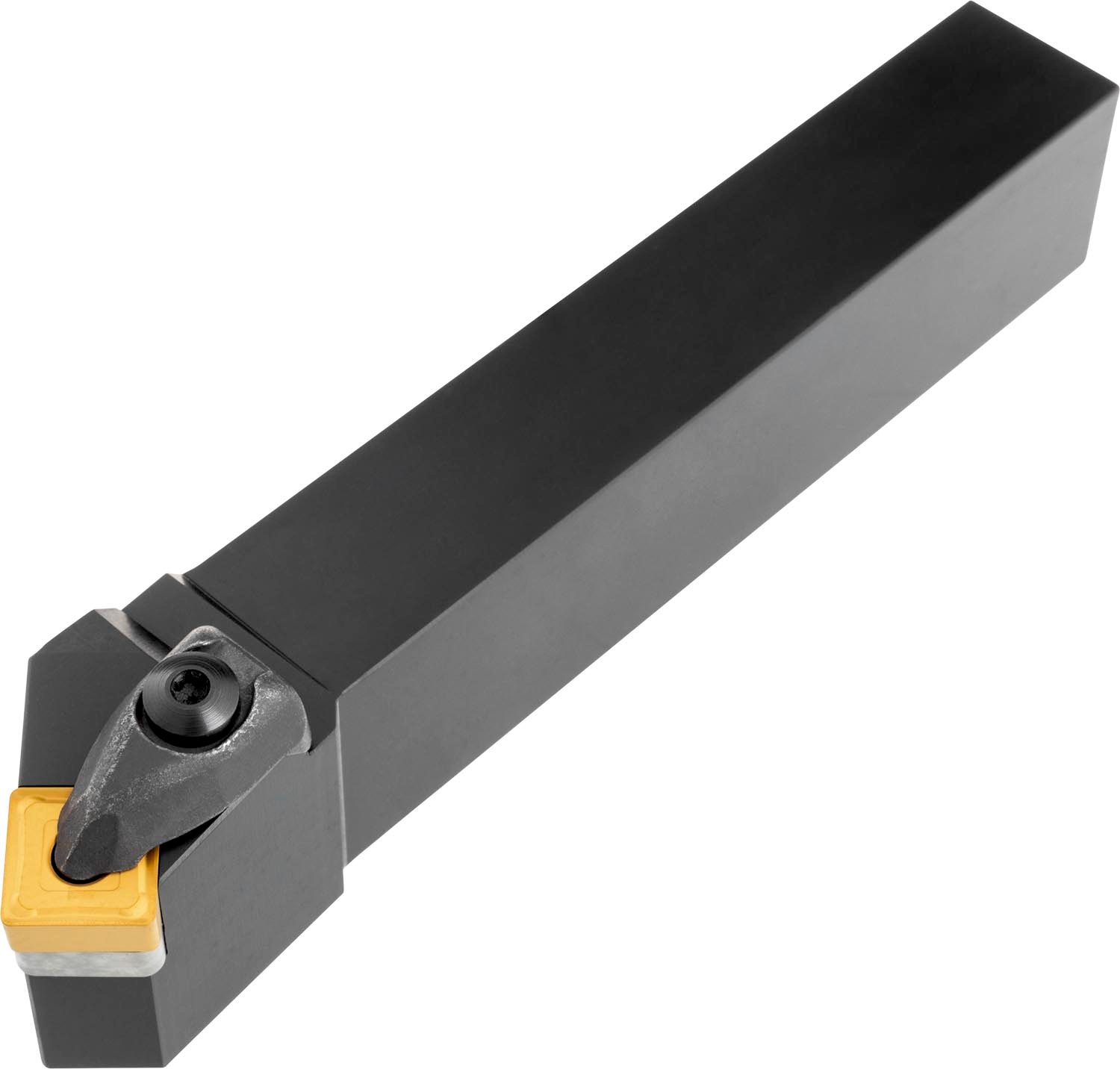

PRAMET DSSNR 3225 P 15 Turning holders external

Description

Double clamp turning tool for holding a square negative insert with an inscribed circle diameter of 15.875mm, 6.35mm thick (ISO designation SN.. 1506.. ), right hand 45° side cutting with off-set shank, 32mm tool height x 25mm width x 170mm long for chamfering, taper turning, single and multi-directional copy turning, face turning without shoulder and longitudinal turning without shoulder

Additional information

Weight	0.1892 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 3603603105577 Product number (SAP): 86026975 Ordering code ANSI: DSSNR 3225 P 15 Gross weight – grams: 1161 Shank height – millimeter (H): 32 mm Shank width – millimeter (B): 25 mm Functional height – millimeter (HF): 32 mm Functional width – millimeter (WF): 32 mm Functional width secondary – millimeter (WFS): 21.8 mm Functional length – millimeter (LF): 170 mm Overall length – millimeter (OAL): 180.2 mm Head length – millimeter (LH): 34.9 mm Inclination angle (LAMS): 0 Orthogonal rake angle (GAMO): -8 Net weight – grams: 1157 Insert size: 15 ISO: DSSNR3225P15
