PRAMET DWLNL 4040 S 13 Turning holders external

Description

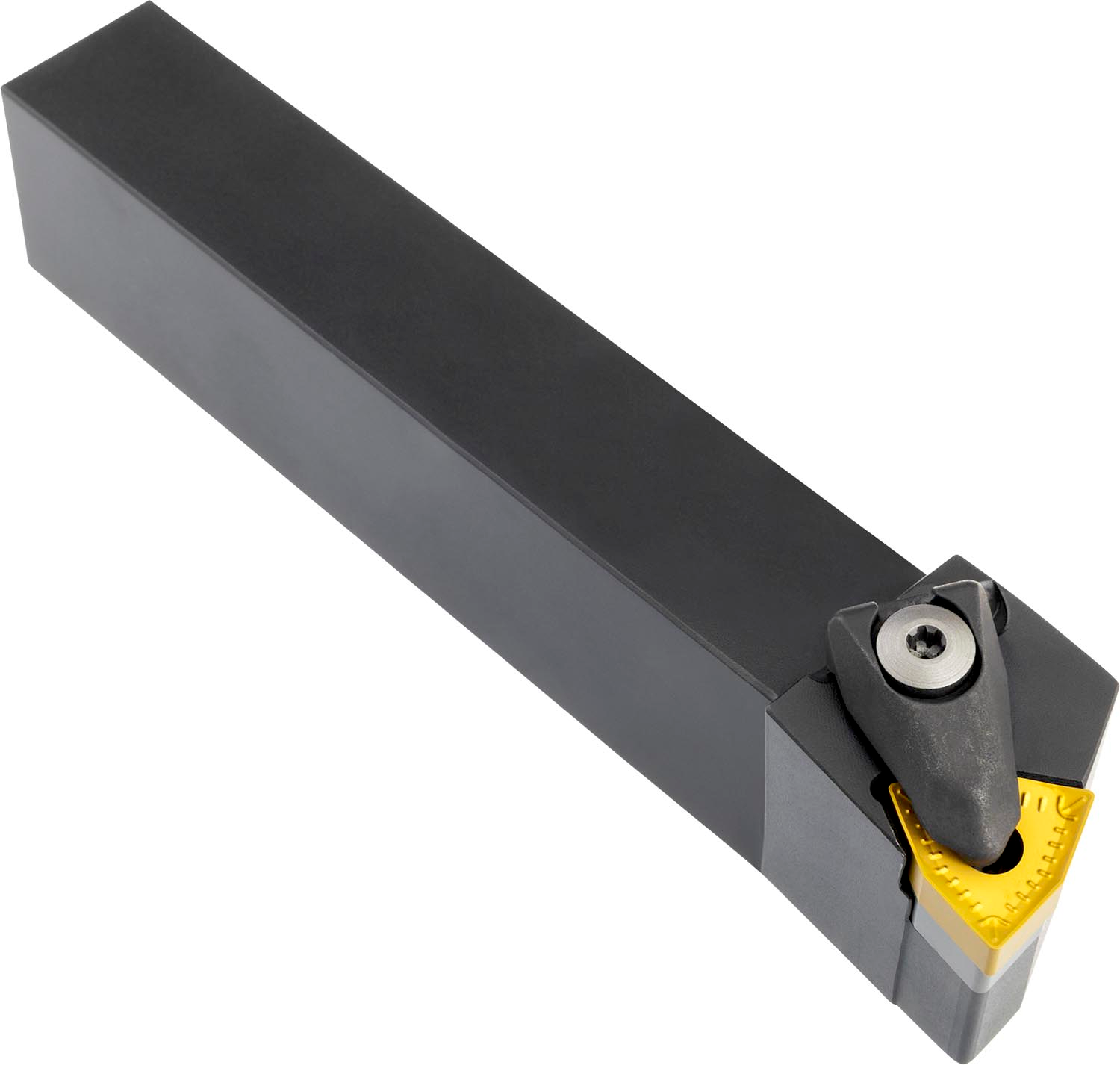

Double clamp turning tool for holding a 80° trigon negative insert with an inscribed circle diameter of 19.05mm, 6.35mm thick (ISO designation WN.. 1306.. ), left hand 95° side and end cutting with off-set shank, 40mm tool height x 40mm width x 250mm long for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder

Additional information

Weight	0.308 kg
barcode
Additional Information	Description: Value EAN number: 3603602938657 Product number (SAP): 84005611 Ordering code ANSI: DWLNL 4040 S 13 Gross weight – grams: 3203.5 Shank height – millimeter (H): 40 mm Shank width – millimeter (B): 40 mm Functional height – millimeter (HF): 40 mm Functional width – millimeter (WF): 50 mm Functional length – millimeter (LF): 250 mm Head length – millimeter (LH): 41 mm Inclination angle (LAMS): -6 Orthogonal rake angle (GAMO): -6 Net weight – grams: 3170 Insert size: 13 ISO: DWLNL4040S13
