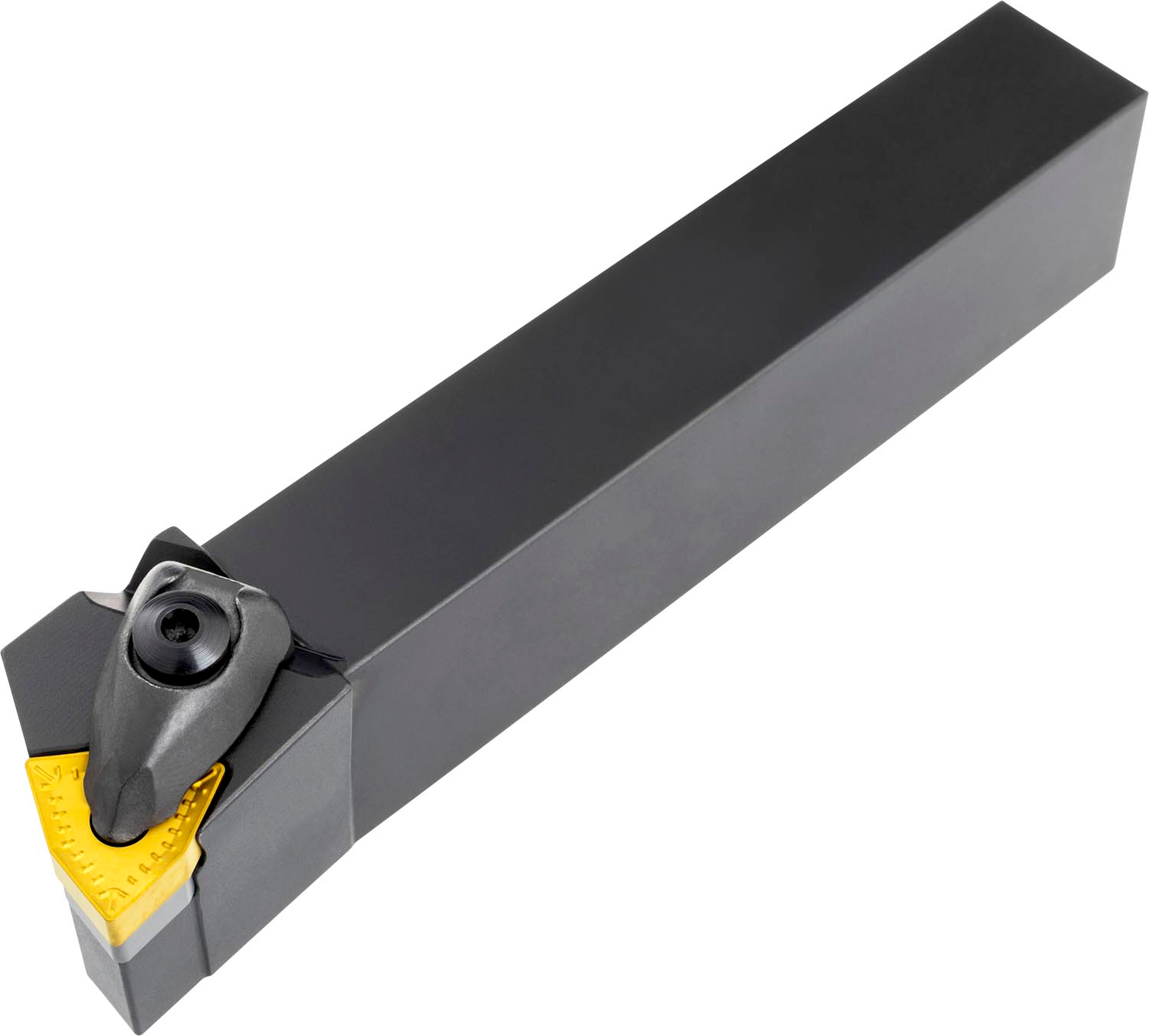

PRAMET DWLNR 2020 K 08 Turning holders external

Description

Double clamp turning tool for holding a 80° trigon negative insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation WN.. 0804.. ), right hand 95° side and end cutting with off-set shank, 20mm tool height x 20mm width x 125mm long for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder

Additional information

Weight	0.1628 kg
barcode
Additional Information	Description: Value EAN number: 3603602934352 Product number (SAP): 84004034 Ordering code ANSI: DWLNR 2020 K 08 Gross weight – grams: 432.4 Shank height – millimeter (H): 20 mm Shank width – millimeter (B): 20 mm Functional height – millimeter (HF): 20 mm Functional width – millimeter (WF): 25 mm Functional length – millimeter (LF): 125 mm Head length – millimeter (LH): 34.3 mm Inclination angle (LAMS): -6 Orthogonal rake angle (GAMO): -6 Net weight – grams: 432 Insert size: 08 ISO: DWLNR2020K08

Need Technical Advice?

Description

Additional information

Brand

PRAMET
