PRAMET DWLNR 2525 M 08 Turning holders external

Product Code: DWLNR 2525 M 08

$176.75$160.68 Ex. GST

Product Code: DWLNR 2525 M 08 SKU DWLNR 2525 M 08 Categories , ,
PRAMET DWLNR 2525 M 08 Turning holders external

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

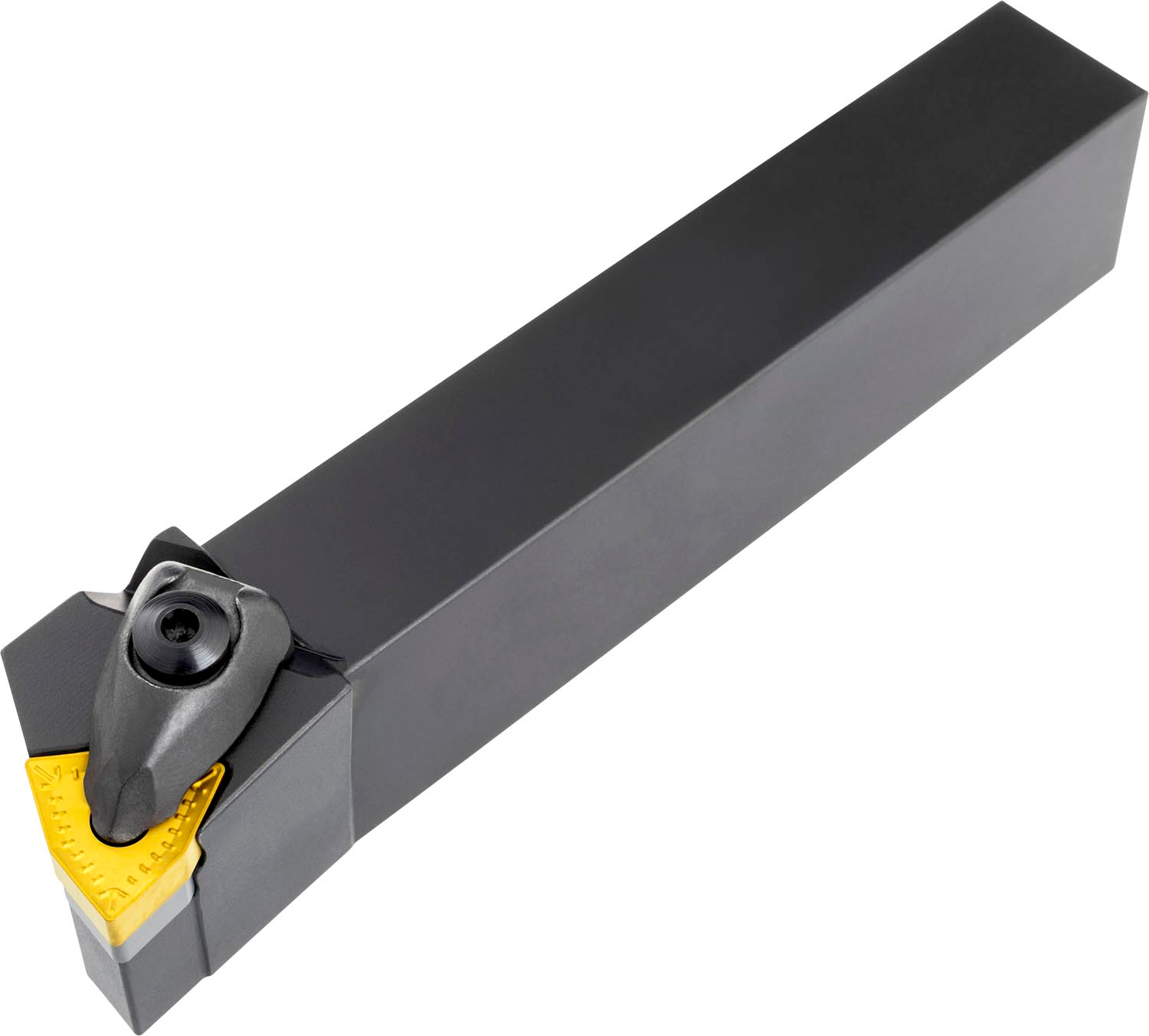

Double clamp turning tool for holding a 80° trigon negative insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation WN.. 0804.. ), right hand 95° side and end cutting with off-set shank, 25mm tool height x 25mm width x 150mm long for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder

Additional information

Weight 0.1716 kg
barcode
Additional Information

Description: Value
EAN number: 3603602934376
Product number (SAP): 84004036
Ordering code ANSI: DWLNR 2525 M 08
Gross weight – grams: 767.8
Shank height – millimeter (H): 25 mm
Shank width – millimeter (B): 25 mm
Functional height – millimeter (HF): 25 mm
Functional width – millimeter (WF): 32 mm
Functional length – millimeter (LF): 150 mm
Head length – millimeter (LH): 35 mm
Inclination angle (LAMS): -6
Orthogonal rake angle (GAMO): -6
Net weight – grams: 750
Insert size: 08
ISO: DWLNR2525M08

Brand

PRAMET
