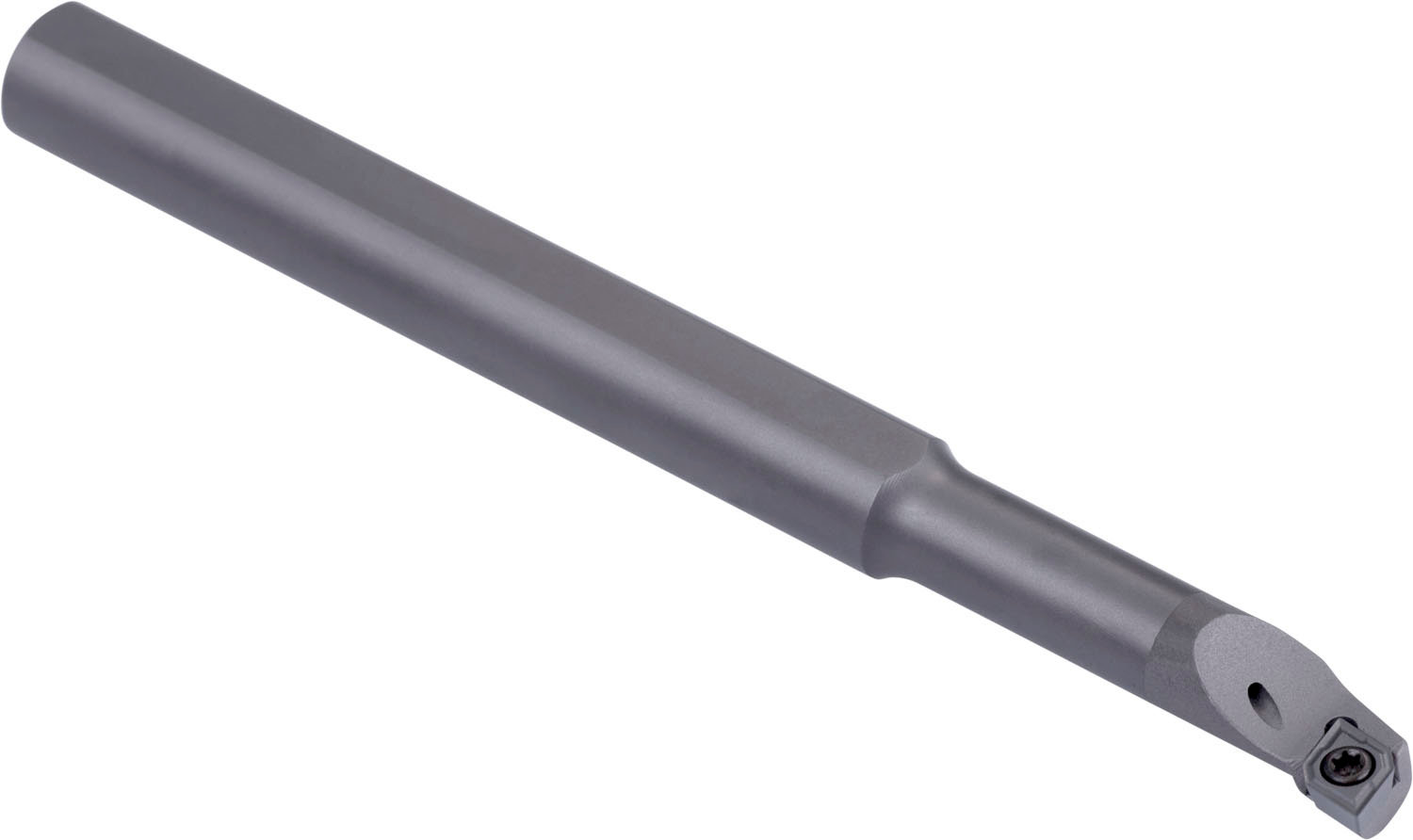

PRAMET E0608H-SELPL 05 Internal Boring bar

Product Code: E0608H-SELPL 05

$712.66$647.87 Ex. GST

Product Code: E0608H-SELPL 05 SKU E0608H-SELPL 05 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Screw clamp boring bar for holding a 75° rhombus positive insert with an inscribed circle diameter of 5.56mm, 2.38mm thick (ISO designation EP.. 0502.. ), left hand 95° side and end cutting with off-set shank, carbide with coolant hole, 6mm diameter x 100mm long for taper boring and longitudinal boring with and without shoulder

Additional information

Weight 0.6919 kg
barcode
Additional Information

Description: Value
EAN number: 3603602958235
Product number (SAP): 86002095
Ordering code ANSI: E0608H-SELPL 05
Gross weight – grams: 63
Connection diameter – millimeter (DCON MS): 8 mm
Minimum bore diameter – millimeter (DMIN): 8 mm
Body diameter – millimeter (BD): 6 mm
Functional width – millimeter (WF): 4.5 mm
Functional length – millimeter (LF): 100 mm
Head length – millimeter (LH): 28 mm
Inclination angle (LAMS): -10
Orthogonal rake angle (GAMO): 0
Net weight – grams: 63
Insert size: 05
ISO: E0608H-SELPL05

Brand

PRAMET
