PRAMET E0608H-SEXPL 05 Internal Boring bar

Product Code: E0608H-SEXPL 05

$714.92$649.93 Ex. GST

Product Code: E0608H-SEXPL 05 SKU E0608H-SEXPL 05 Categories , ,
PRAMET E0608H-SEXPL 05 Internal Boring bar

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

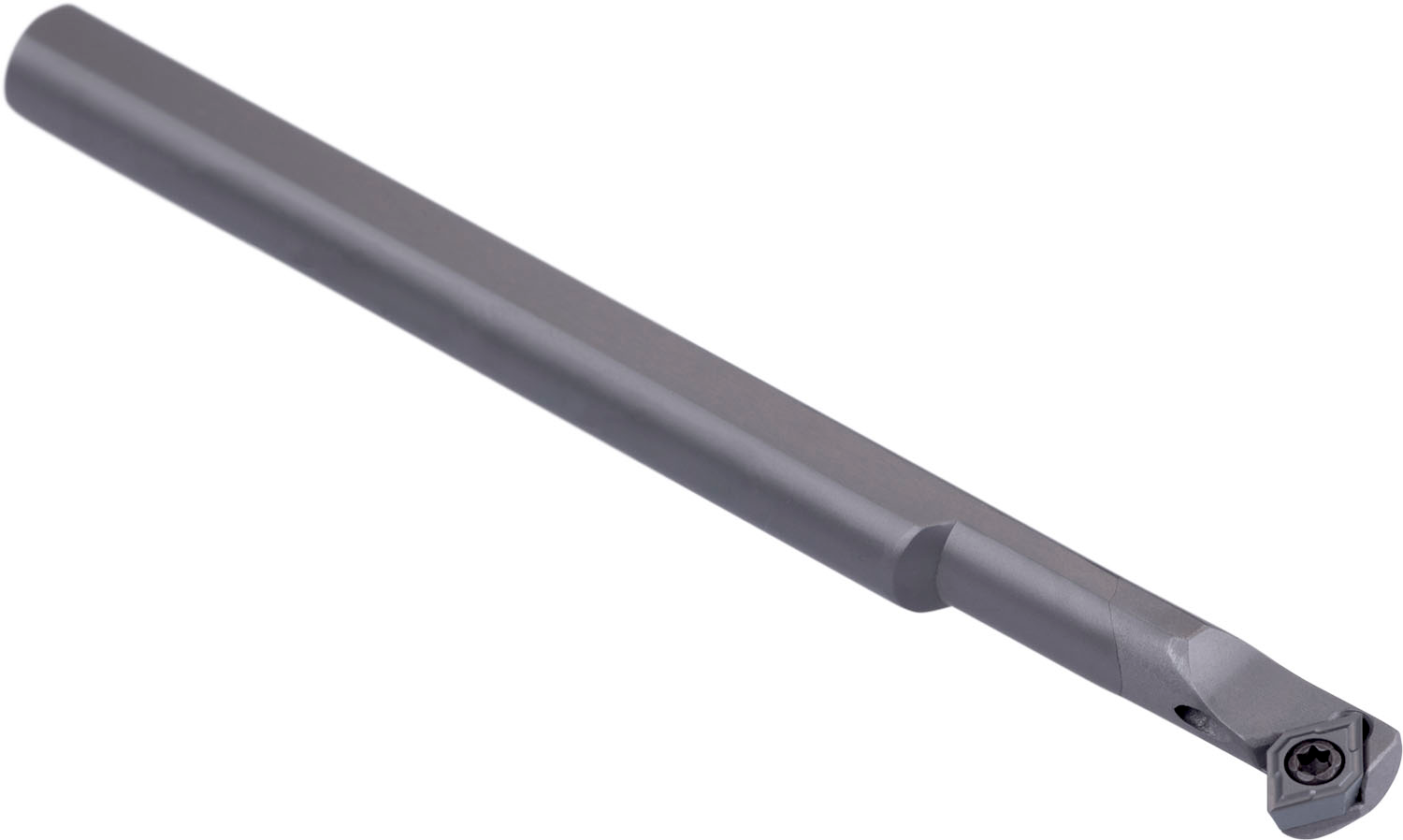

Screw clamp boring bar for holding a 75° rhombus positive insert with an inscribed circle diameter of 5.56mm, 2.38mm thick (ISO designation EP.. 0502.. ), left hand special tool style, carbide with coolant hole, 6mm diameter x 100mm long for taper boring, single and multi-directional copy boring and back chamfering

Additional information

Weight 0.6941 kg
barcode
Additional Information

Description: Value
EAN number: 3603602961181
Product number (SAP): 86004774
Ordering code ANSI: E0608H-SEXPL 05
Gross weight – grams: 65.6
Connection diameter – millimeter (DCON MS): 8 mm
Minimum bore diameter – millimeter (DMIN): 9.5 mm
Body diameter – millimeter (BD): 6 mm
Functional width – millimeter (WF): 5.5 mm
Functional length – millimeter (LF): 100 mm
Head length – millimeter (LH): 28 mm
Axial rake angle (GAMP): -7
Net weight – grams: 64
Insert size: 05
ISO: E0608H-SEXPL05

Brand

PRAMET
