PRAMET E0608H-SWUCL 02 Turning holders internal

Product Code: E0608H-SWUCL 02

$714.92$649.93 Ex. GST

Product Code: E0608H-SWUCL 02 SKU E0608H-SWUCL 02 Categories , ,
PRAMET E0608H-SWUCL 02 Turning holders internal

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

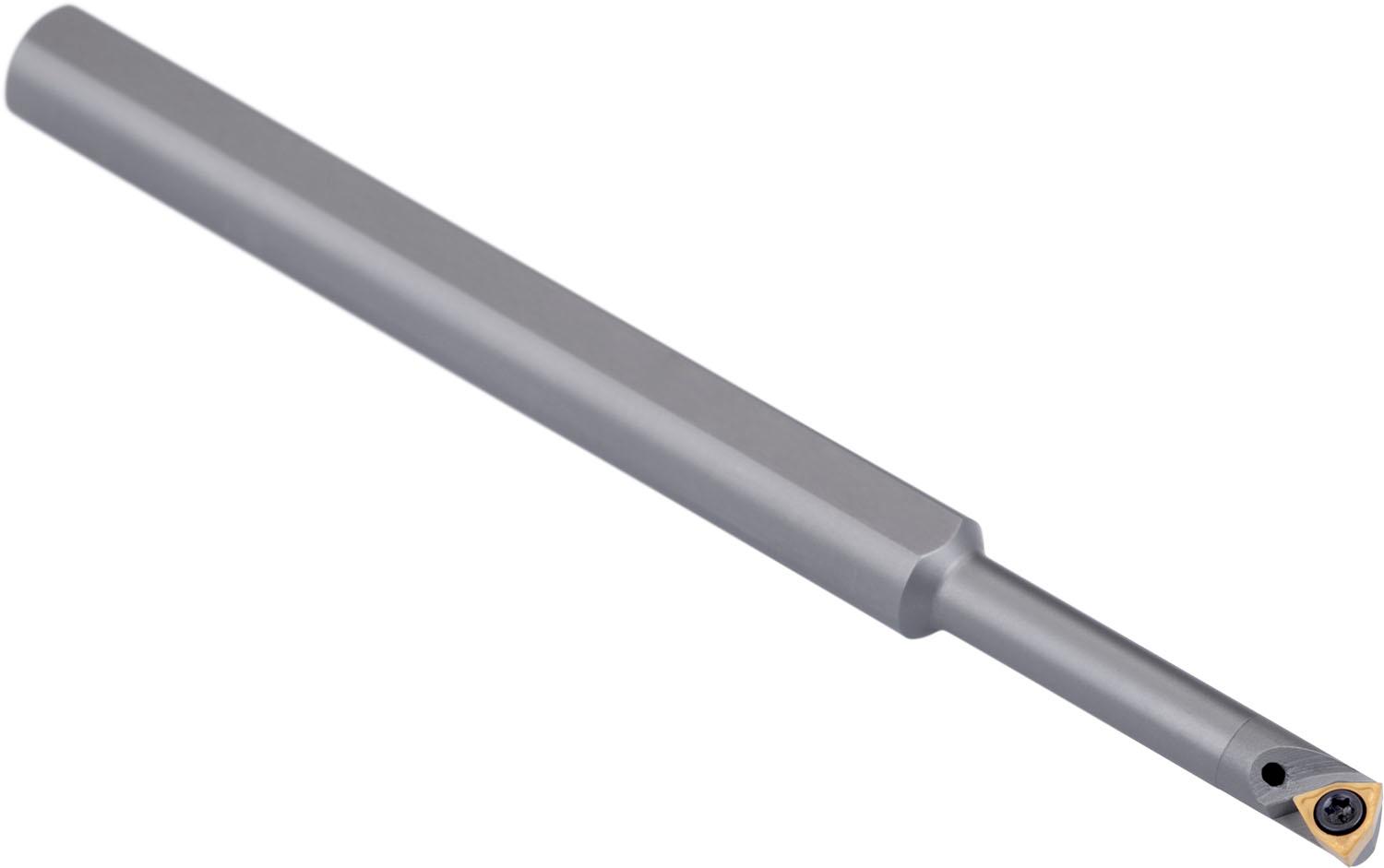

Screw clamp boring bar for holding a 80° trigon positive insert with an inscribed circle diameter of 3.97mm, 1.59mm thick (ISO designation WC.. 0201.. ), left hand 93° end cutting with off-set shank, carbide with coolant hole, 6mm diameter x 100mm long for taper boring and longitudinal boring with and without shoulder

Additional information

Weight 0.6941 kg
barcode
Additional Information

Description: Value
EAN number: 3603602959362
Product number (SAP): 86003412
Ordering code ANSI: E0608H-SWUCL 02
Gross weight – grams: 62.9
Connection diameter – millimeter (DCON MS): 8 mm
Minimum bore diameter – millimeter (DMIN): 7.8 mm
Body diameter – millimeter (BD): 6 mm
Functional width – millimeter (WF): 3.9 mm
Functional length – millimeter (LF): 100 mm
Head length – millimeter (LH): 32 mm
Axial rake angle (GAMP): -12
Net weight – grams: 62.9
Insert size: 02
ISO: E0608H-SWUCL02

Brand

PRAMET
