PRAMET E06H-STFCL 06-R Turning holders internal

Product Code: E06H-STFCL 06-R

$380.69$346.08 Ex. GST

Product Code: E06H-STFCL 06-R SKU E06H-STFCL 06-R Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

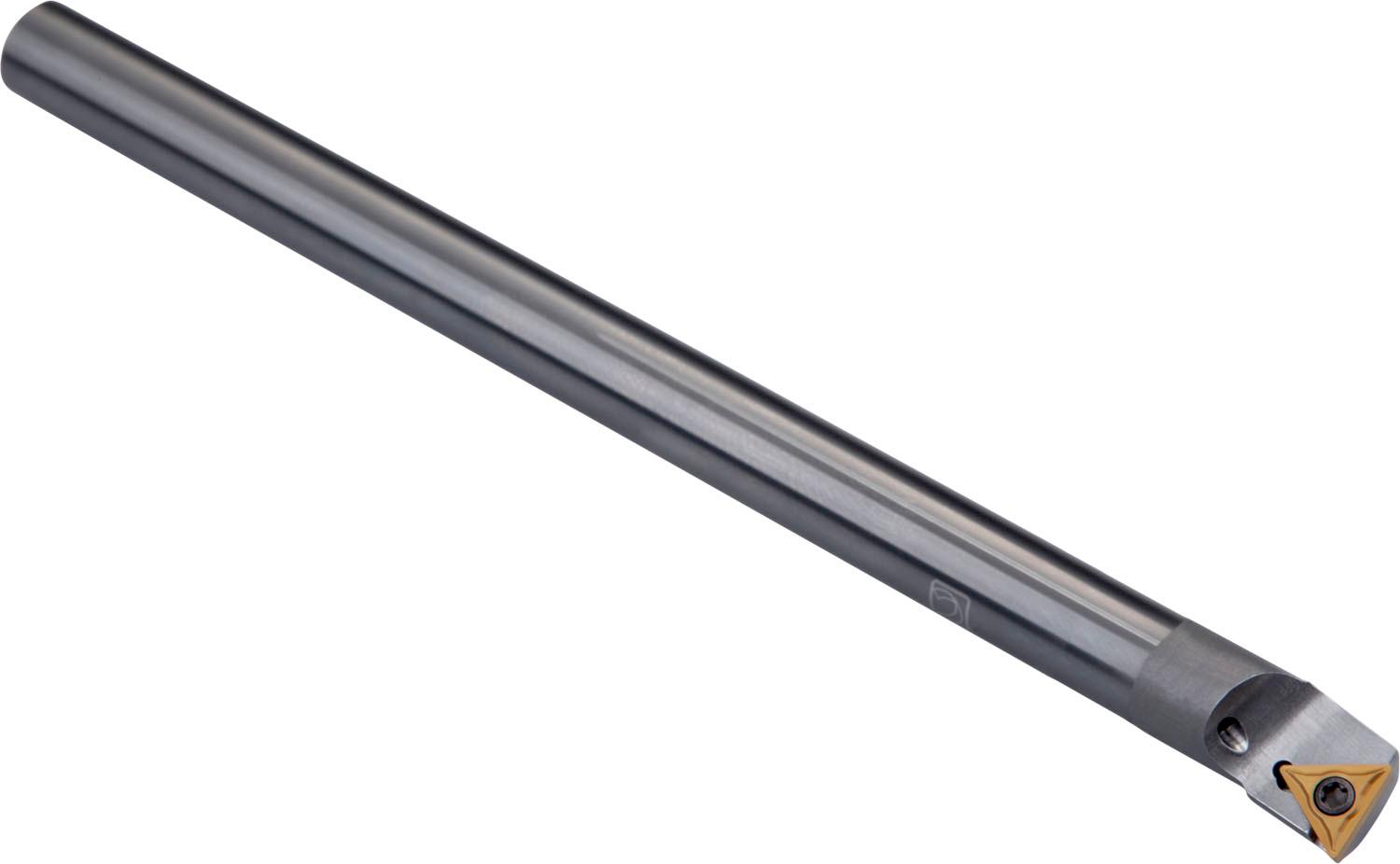

Screw clamp boring bar for holding a triangular positive insert with an inscribed circle diameter of 3.97mm, 1.98mm thick (ISO designation TC.. 06T1.. ), left hand 90° end cutting with off-set shank, carbide with coolant hole, 6mm diameter x 100mm long for taper boring and longitudinal boring with and without shoulder

Additional information

Weight 0.3696 kg
barcode
Additional Information

Description: Value
EAN number: 3603602958402
Product number (SAP): 86002402
Ordering code ANSI: E06H-STFCL 06-R
Gross weight – grams: 64
Connection diameter – millimeter (DCON MS): 6 mm
Minimum bore diameter – millimeter (DMIN): 8.5 mm
Functional width – millimeter (WF): 4.5 mm
Shank height – millimeter (H): 6 mm
Functional height – millimeter (HF): 3 mm
Functional length – millimeter (LF): 100 mm
Inclination angle (LAMS): -10
Orthogonal rake angle (GAMO): 0
Net weight – grams: 54
Insert size: 06
ISO: E06H-STFCL06-R

Brand

PRAMET
