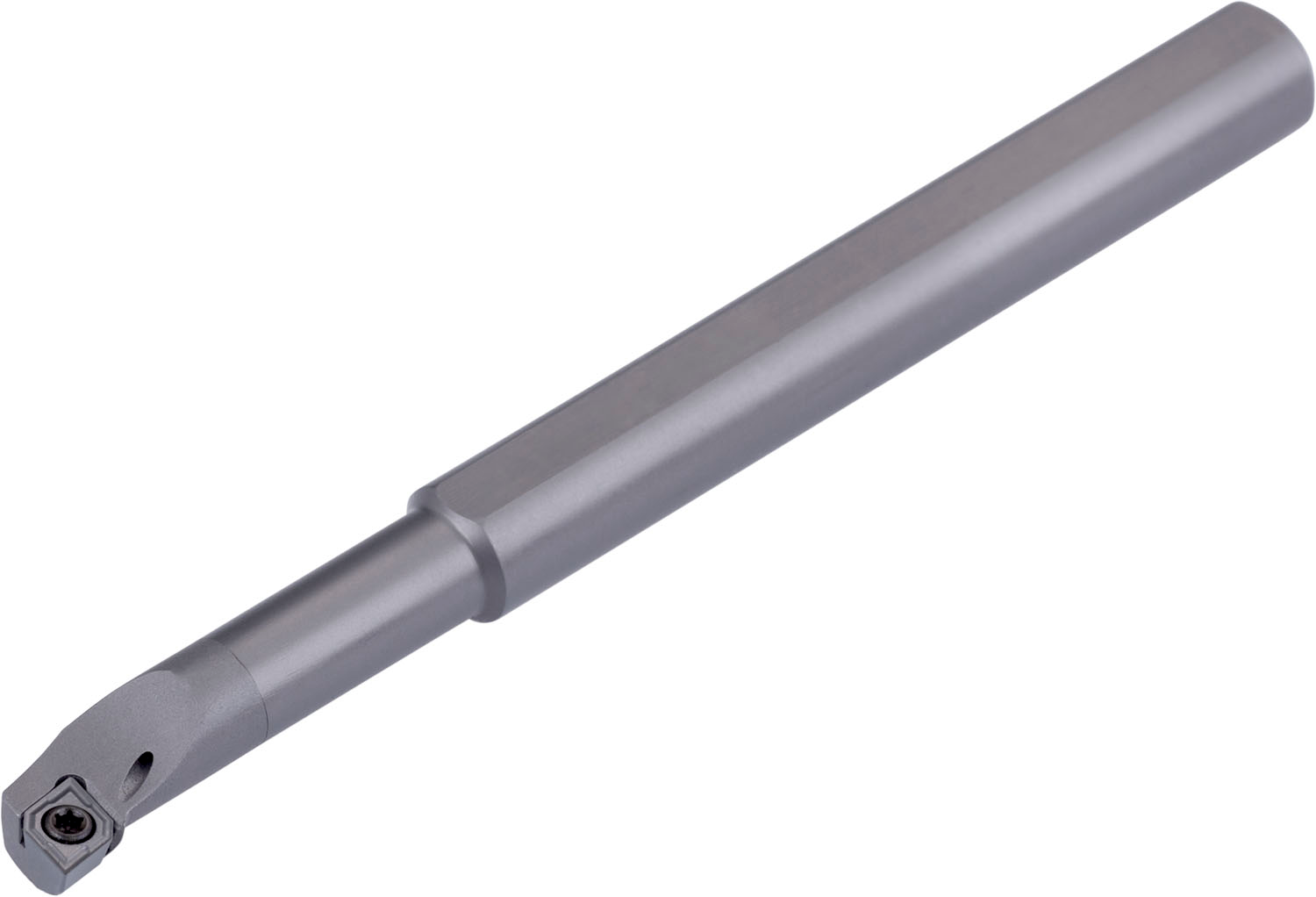

PRAMET E0810J-SELPR 05 Internal Boring bar

Product Code: E0810J-SELPR 05

$803.30$730.27 Ex. GST

Product Code: E0810J-SELPR 05 SKU E0810J-SELPR 05 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Screw clamp boring bar for holding a 75° rhombus positive insert with an inscribed circle diameter of 5.56mm, 2.38mm thick (ISO designation EP.. 0502.. ), right hand 95° side and end cutting with off-set shank, carbide with coolant hole, 8mm diameter x 110mm long for taper boring and longitudinal boring with and without shoulder

Additional information

Weight 0.7799 kg
barcode
Additional Information

Description: Value
EAN number: 3603602958266
Product number (SAP): 86002098
Ordering code ANSI: E0810J-SELPR 05
Gross weight – grams: 102.7
Connection diameter – millimeter (DCON MS): 10 mm
Minimum bore diameter – millimeter (DMIN): 11 mm
Body diameter – millimeter (BD): 8 mm
Functional width – millimeter (WF): 6 mm
Functional length – millimeter (LF): 110 mm
Head length – millimeter (LH): 36 mm
Inclination angle (LAMS): -5
Orthogonal rake angle (GAMO): 0
Net weight – grams: 102.7
Insert size: 05
ISO: E0810J-SELPR05

Brand

PRAMET
