PRAMET E1012K-SEXPR 05 Internal Boring bar

Product Code: E1012K-SEXPR 05

$1,029.90$936.27 Ex. GST

Product Code: E1012K-SEXPR 05 SKU E1012K-SEXPR 05 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

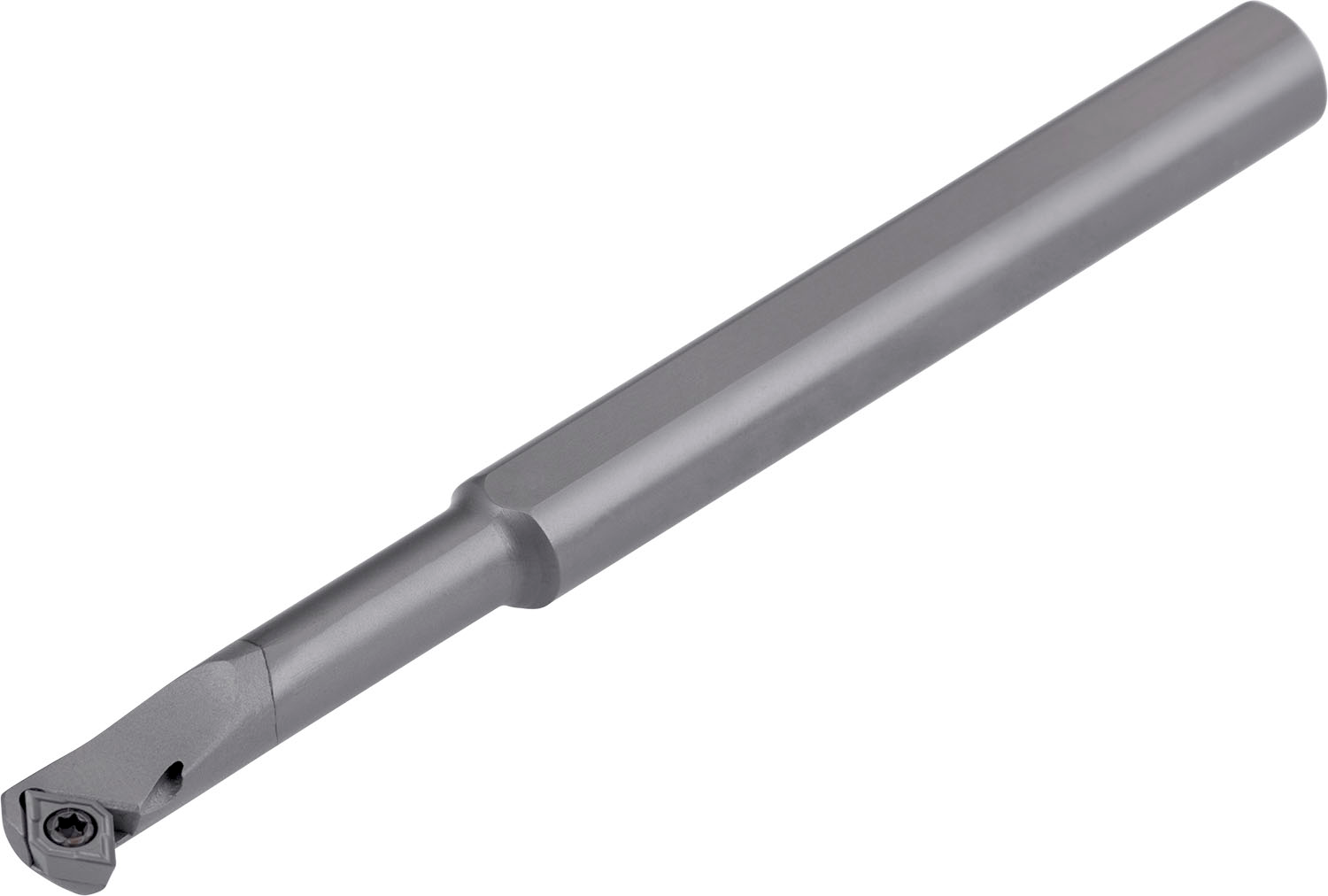

Screw clamp boring bar for holding a 75° rhombus positive insert with an inscribed circle diameter of 5.56mm, 2.38mm thick (ISO designation EP.. 0502.. ), right hand special tool style, carbide with coolant hole, 10mm diameter x 125mm long for taper boring, single and multi-directional copy boring and back chamfering

Additional information

Weight 0.9999 kg
barcode
Additional Information

Description: Value
EAN number: 3603602961211
Product number (SAP): 86004777
Ordering code ANSI: E1012K-SEXPR 05
Gross weight – grams: 164
Connection diameter – millimeter (DCON MS): 12 mm
Minimum bore diameter – millimeter (DMIN): 13 mm
Body diameter – millimeter (BD): 10 mm
Functional width – millimeter (WF): 7 mm
Functional length – millimeter (LF): 125 mm
Head length – millimeter (LH): 44 mm
Axial rake angle (GAMP): -5
Net weight – grams: 164
Insert size: 05
ISO: E1012K-SEXPR05

Brand

PRAMET
