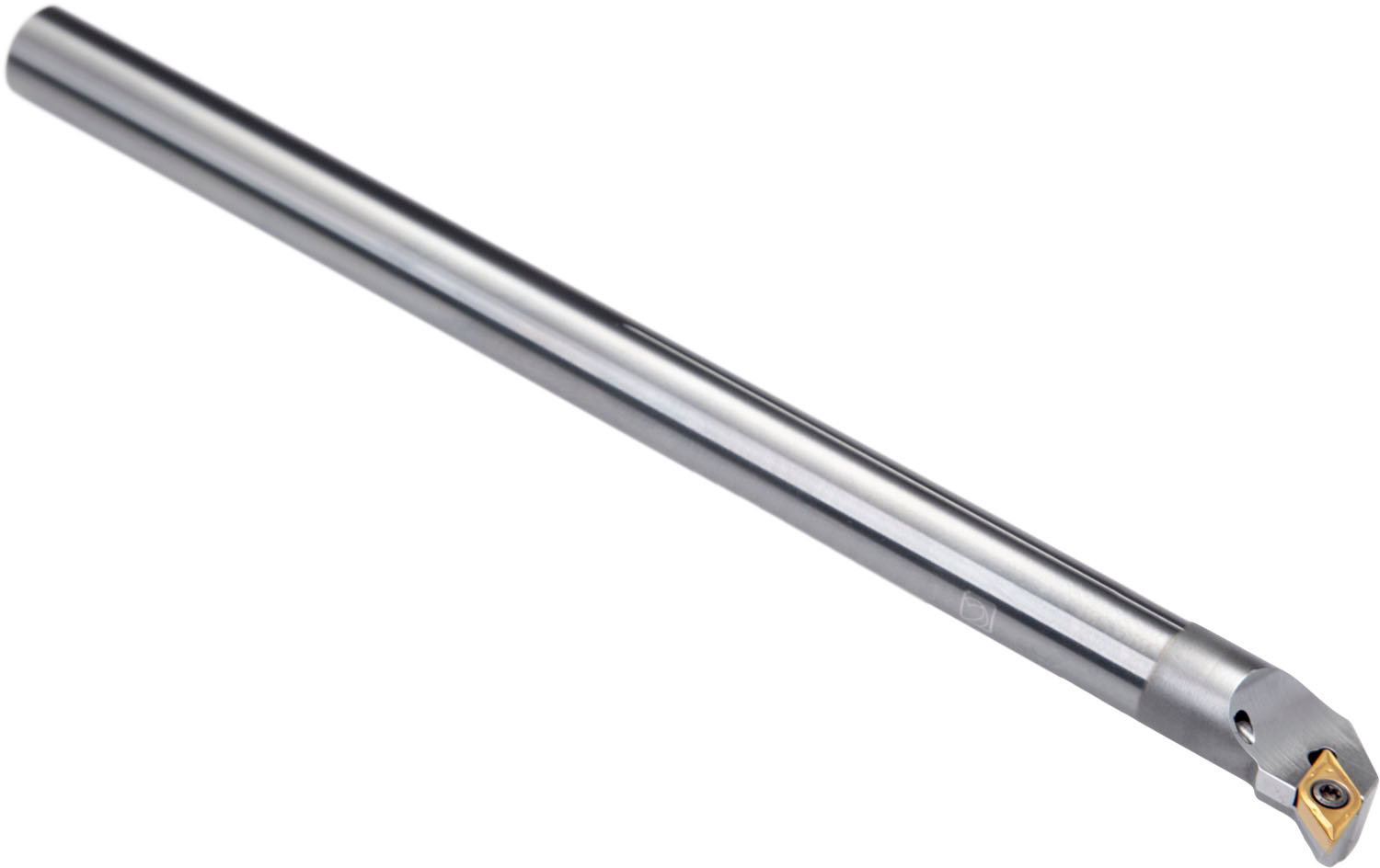

PRAMET E10M-SDUCL 07-ER Internal Boring Bar

Description

Screw clamp boring bar for holding a 55° rhombus positive insert with an inscribed circle diameter of 6.35mm, 2.38mm thick (ISO designation DC.. 0702.. ), left hand 93° end cutting with off-set shank, carbide with coolant hole, 10mm diameter x 150mm long for taper boring, single and multi-directional copy boring and longitudinal boring with and without shoulder

Additional information

Weight	0.5577 kg
barcode
Additional Information	Description: Value EAN number: 3603602958440 Product number (SAP): 86002406 Ordering code ANSI: E10M-SDUCL 07-ER Gross weight – grams: 152 Connection diameter – millimeter (DCON MS): 10 mm Minimum bore diameter – millimeter (DMIN): 15 mm Functional width – millimeter (WF): 9 mm Functional height – millimeter (HF): 5.6 mm Functional length – millimeter (LF): 150 mm Inclination angle (LAMS): -5 Orthogonal rake angle (GAMO): 0 Net weight – grams: 152 Insert size: 07 ISO: E10M-SDUCL07-ER
