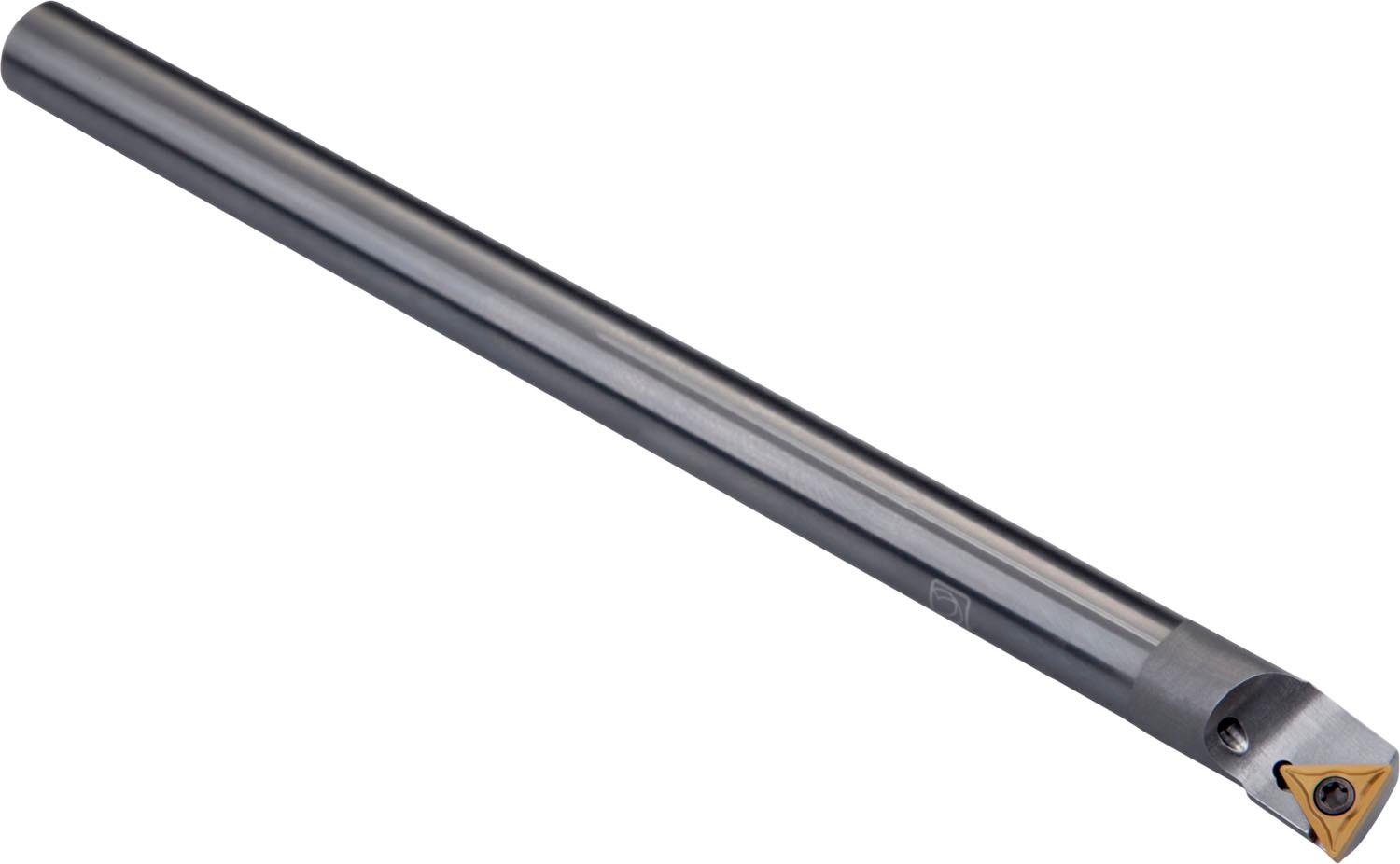

PRAMET E10M-STFCL 09-R Turning holders internal

Description

Screw clamp boring bar for holding a triangular positive insert with an inscribed circle diameter of 5.56mm, 2.38mm thick (ISO designation TC.. 0902.. ), left hand 90° end cutting with off-set shank, carbide with coolant hole, 10mm diameter x 150mm long for taper boring and longitudinal boring with and without shoulder

Additional information

Weight	0.5577 kg
barcode
Additional Information	Description: Value EAN number: 3603602958464 Product number (SAP): 86002408 Ordering code ANSI: E10M-STFCL 09-R Gross weight – grams: 154 Connection diameter – millimeter (DCON MS): 10 mm Minimum bore diameter – millimeter (DMIN): 13 mm Functional width – millimeter (WF): 7 mm Shank height – millimeter (H): 10 mm Functional height – millimeter (HF): 5 mm Functional length – millimeter (LF): 150 mm Inclination angle (LAMS): -8 Orthogonal rake angle (GAMO): 0 Net weight – grams: 154 Insert size: 09 ISO: E10M-STFCL09-R
