PRAMET E12Q-STFCR 09-R Turning holders internal

Product Code: E12Q-STFCR 09-R

$708.13$643.75 Ex. GST

Product Code: E12Q-STFCR 09-R SKU E12Q-STFCR 09-R Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

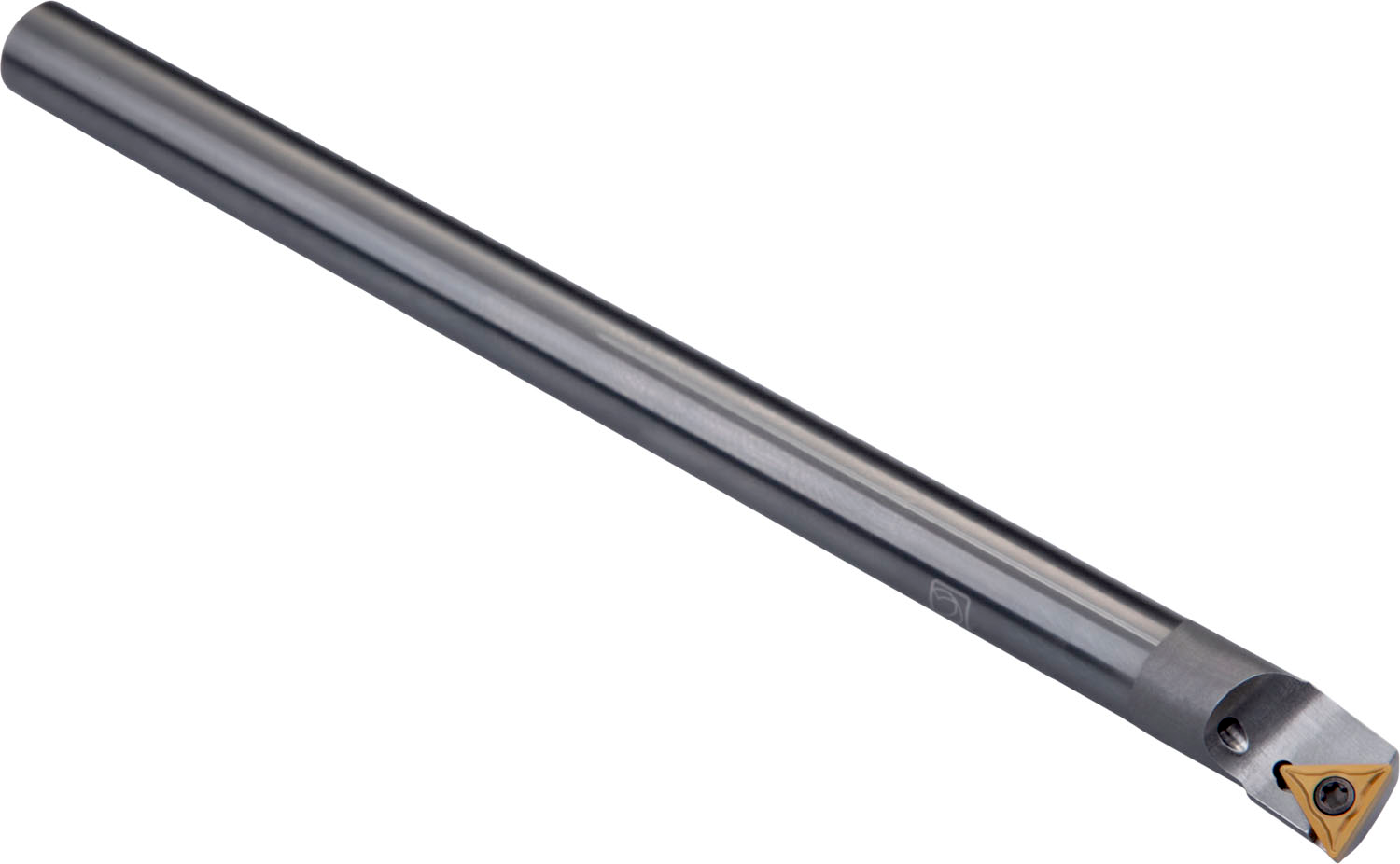

Screw clamp boring bar for holding a triangular positive insert with an inscribed circle diameter of 5.56mm, 2.38mm thick (ISO designation TC.. 0902.. ), right hand 90° end cutting with off-set shank, carbide with coolant hole, 12mm diameter x 180mm long for taper boring and longitudinal boring with and without shoulder

Additional information

Weight 0.6875 kg
barcode
Additional Information

Description: Value
EAN number: 3603602958518
Product number (SAP): 86002413
Ordering code ANSI: E12Q-STFCR 09-R
Gross weight – grams: 256
Connection diameter – millimeter (DCON MS): 12 mm
Minimum bore diameter – millimeter (DMIN): 16 mm
Functional width – millimeter (WF): 9 mm
Shank height – millimeter (H): 12 mm
Functional height – millimeter (HF): 6 mm
Functional length – millimeter (LF): 180 mm
Inclination angle (LAMS): -6
Orthogonal rake angle (GAMO): 0
Net weight – grams: 256
Insert size: 09
ISO: E12Q-STFCR09-R

Brand

PRAMET
