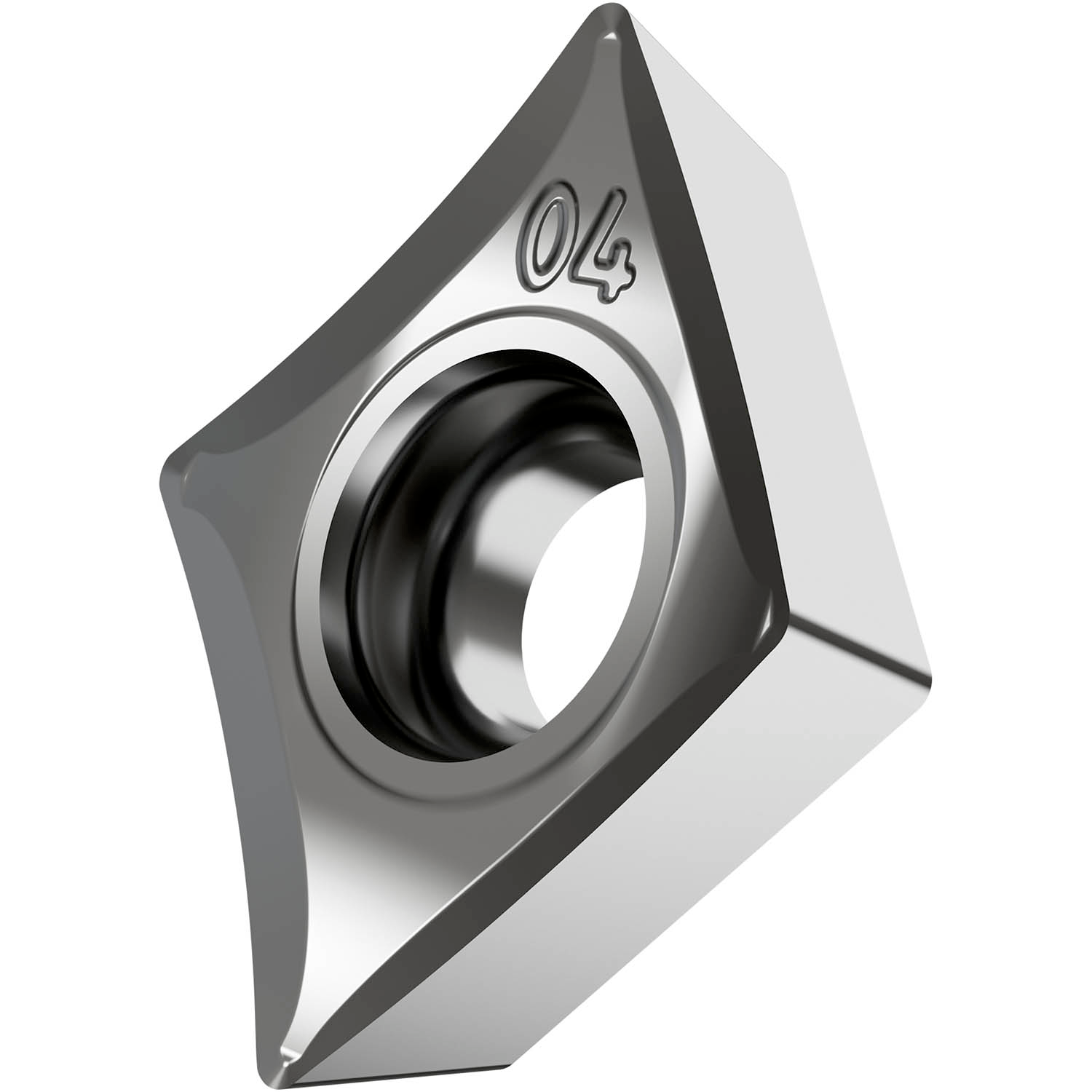

PRAMET ECGT 080304E-SF3:H07 Turning inserts positive

Description

Single-sided positive turning insert, 75° rhomboid with 7° clearance, inscribed circle diameter of 7.94mm, 3.18mm thick, 0.4mm nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker SF3 with rounded cutting edges, in grade H07, an uncoated WC-Co carbide within ISO ranges N10 -N30 and S01 -S20, for fine to medium machining of non-ferrous metals and super-alloys

Additional information

Weight	0.0174 kg
barcode
Additional Information	Description: Value EAN number: 3603603171688 Product number (SAP): 80028407 Ordering code ANSI: ECGT 2.521-SF3:H07 Gross weight – grams: 2.056 Inscribed circle diameter – millimeter (IC): 7.94 mm Fixing hole diameter – millimeter (D1): 3.4 mm Cutting edge length – millimeter (L): 8.2 mm Insert thickness – millimeter (S): 3.43 mm Grade: H07 Corner radius – millimeter (RE): 0.4 mm Insert Clearance Code and Angle: C 7° Insert Design: ECGT Insert size: 08 Insert Thickness: 03 Insert Type: T Chipbreaker manufacturer's designation (CBMD): SF3 Insert shape code (SC): E – rhombic 75° included angle Tool Design: EC Insert Geometry: Positive ISO: ECGT080304E-SF3:H07

Need Technical Advice?

Description

Additional information

Brand

PRAMET
