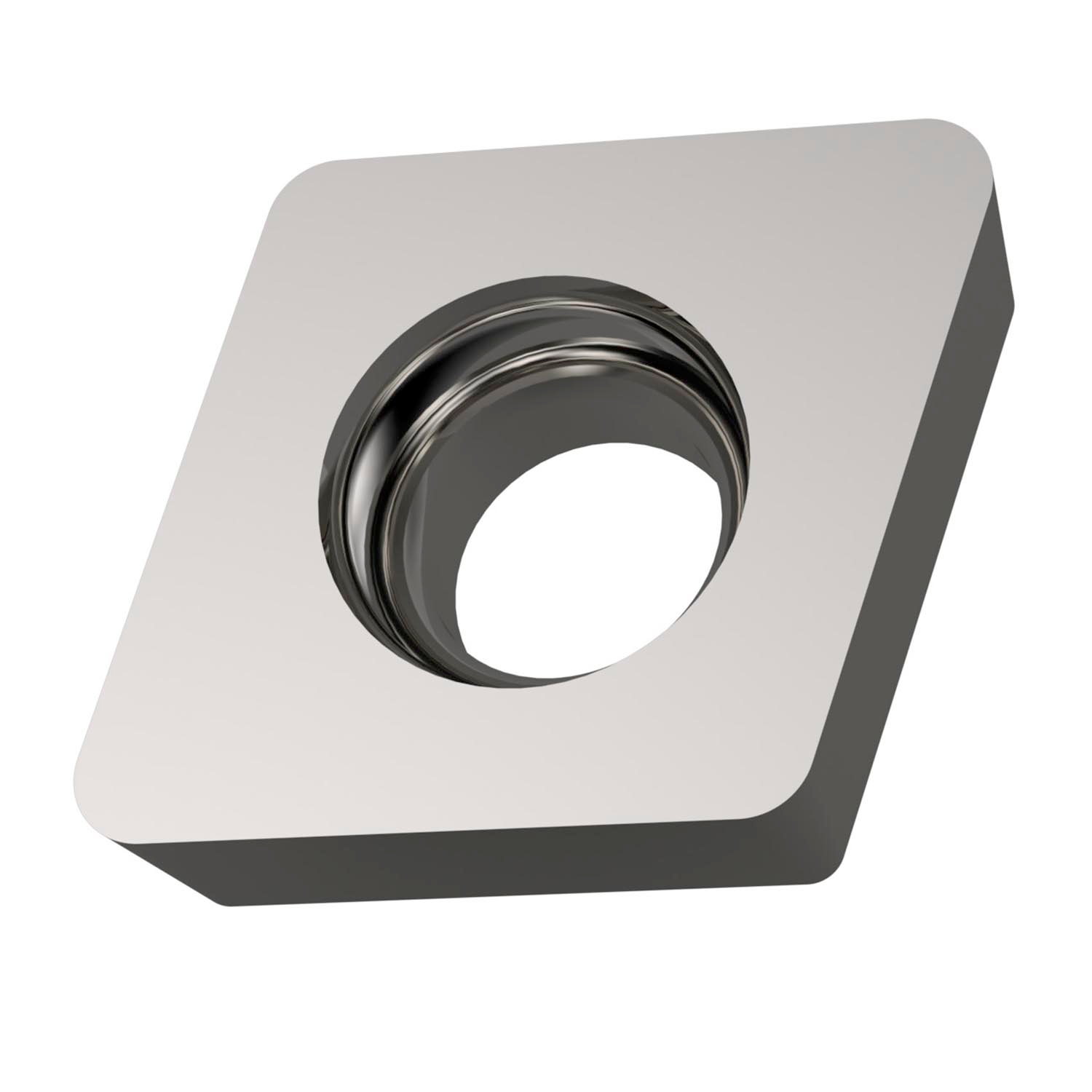

PRAMET ECMW 060204:H07 Turning inserts positive

Description: Value
EAN number: 3603603172371
Product number (SAP): 80028476
Ordering code ANSI: ECMW 21.51:H07
Gross weight – grams: 1.039
Inscribed circle diameter – millimeter (IC): 6.35 mm
Fixing hole diameter – millimeter (D1): 2.8 mm
Cutting edge length – millimeter (L): 6.5 mm
Insert thickness – millimeter (S): 2.38 mm
Grade: H07
Corner radius – millimeter (RE): 0.4 mm
Insert Clearance Code and Angle: C 7°
Insert Design: ECMW
Insert size: 06
Insert Thickness: 02
Insert Type: W
Chipbreaker manufacturer's designation (CBMD): No chipbreaker
Insert shape code (SC): E – rhombic 75° included angle
Tool Design: EC
Insert Geometry: Positive
ISO: ECMW060204:H07
