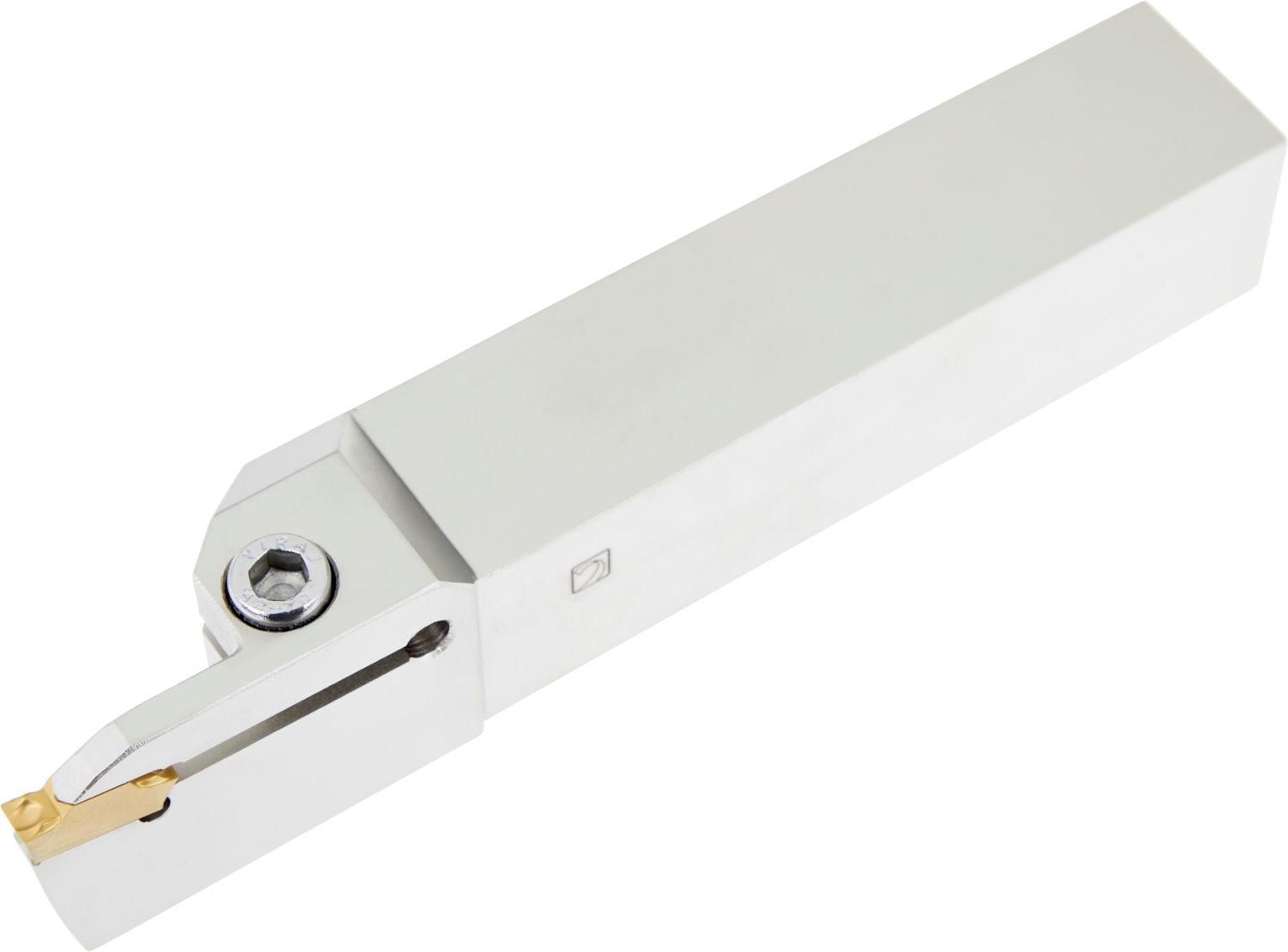

PRAMET GFMR 3225 P 0516 Turning holders for parting, grooving and copy turning

Product Code: GFMR 3225 P 0516

$302.51$275.01 Ex. GST

Product Code: GFMR 3225 P 0516 SKU GFMR 3225 P 0516 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Top clamp grooving tool for holding a 16.4mm long double or single ended insert with 5mm cutting width (designation LCM. 0516.. ), right handed with insert parallel to the shank for a maximum parting diameter of 50mm, shank height 32mm, width 25mm and tool length 170mm for multi-directional copy turning, shallow and deep radial grooving, radial groove turning, parting-off and tube parting-off

Additional information

Weight 0.2937 kg
barcode
Additional Information

Description: Value
EAN number: 3603602957269
Product number (SAP): 86001685
Ordering code ANSI: GFMR 3225 P 0516
Gross weight – grams: 956.2
Functional height – millimeter (HF): 32 mm
Shank height – millimeter (H): 32 mm
Shank width – millimeter (B): 25 mm
Functional length – millimeter (LF): 170 mm
Cutting width – millimeter (CW): 5 mm
Work piece parting diameter maximum – millimeter (CUTDIA): 50 mm
Net weight – grams: 956.2
ISO: GFMR3225P0516

Brand

PRAMET
