PRAMET GL1-D150M015-PM:G8330 Turning inserts for grooving

Product Code: GL1-D150M015-PM:G8330

$36.49$33.17 Ex. GST

Product Code: GL1-D150M015-PM:G8330 SKU GL1-D150M015-PM:G8330 Categories ,

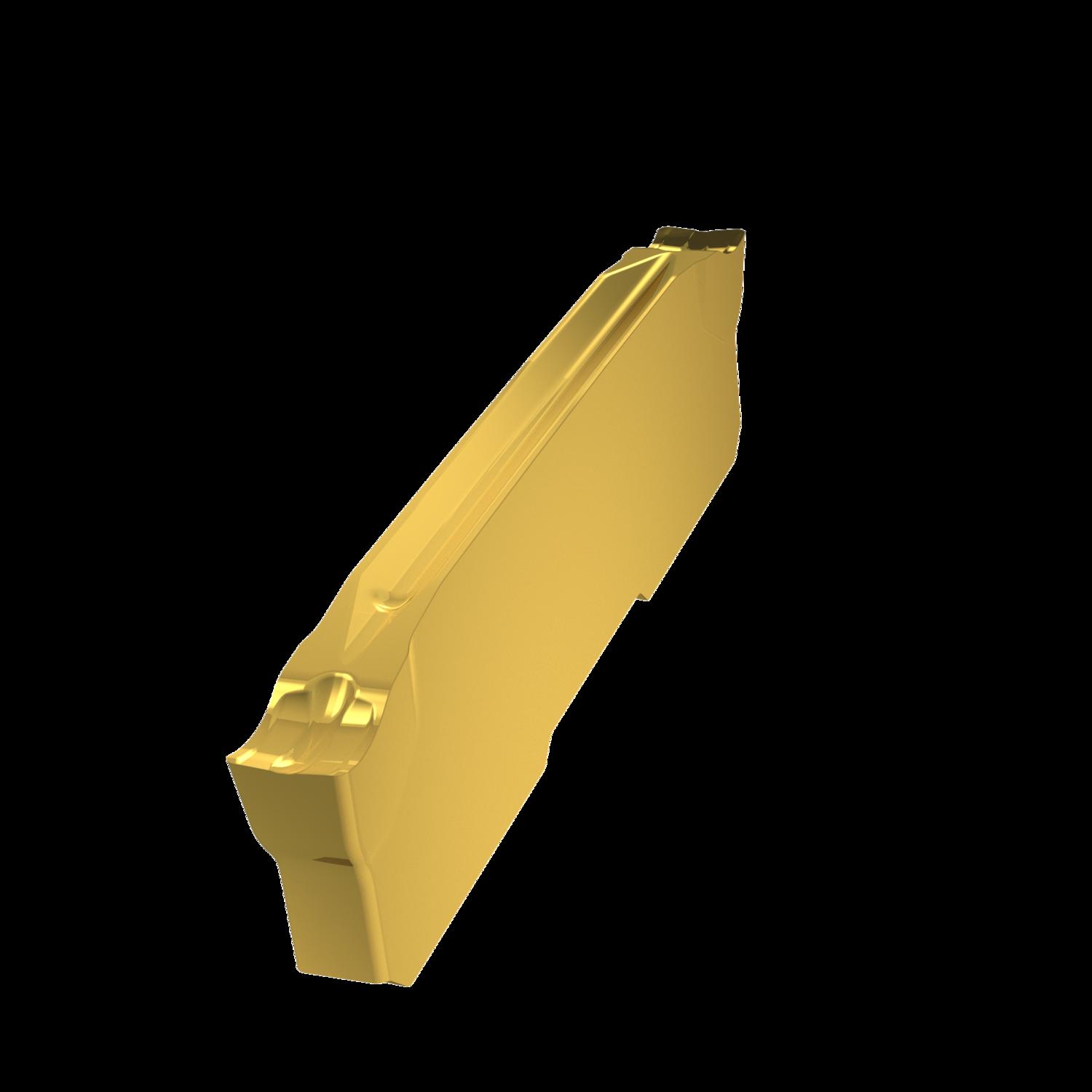

PRAMET GL1-D150M015-PM:G8330 Turning inserts for grooving

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Double ended parting and grooving insert, 16.5 mm long with a 1.5mm cutting width and 0.15mm corner radii, a cutting width tolerance of ±0.04. Grade G8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40 and M20-M35 for machining of steel and stainless-steel. PM geometry with highly positive rake, first choice for parting-off, and continuous to slightly interrupted cuts

Additional information

Weight 0.0011 kg
barcode

3603604193351
Additional Information

Description: Value
EAN number: 3603604193351
Product number (SAP): 80036035
Ordering code ANSI: GL1-D150M015-PM:G8330
Gross weight – grams: 4.01
Cutting width – millimeter (CW): 1.5 mm
Cutting width lower tolerance – millimeter (CWTOLL): -0.04 mm
Cutting width upper tolerance – millimeter (CWTOLU): 0.04 mm
Insert length – millimeter (INSL): 16.5 mm
Grade: G8330
Corner radius – millimeter (RE): 0.15 mm
Insert Design: GL. D
Chipbreaker manufacturer's designation (CBMD): PM
ISO: GL1-D150M015-PM:G8330
Pocket Size: 1
