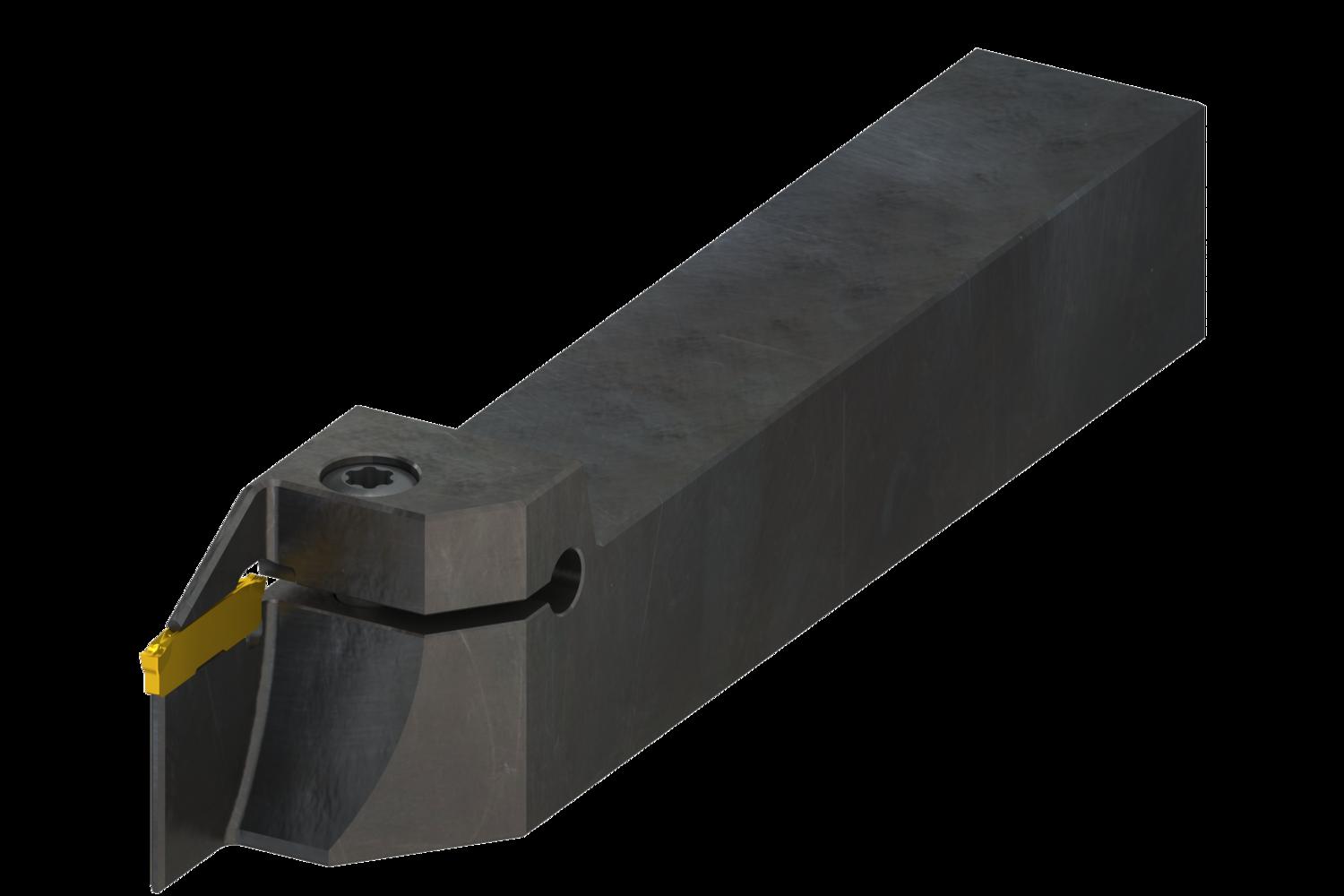

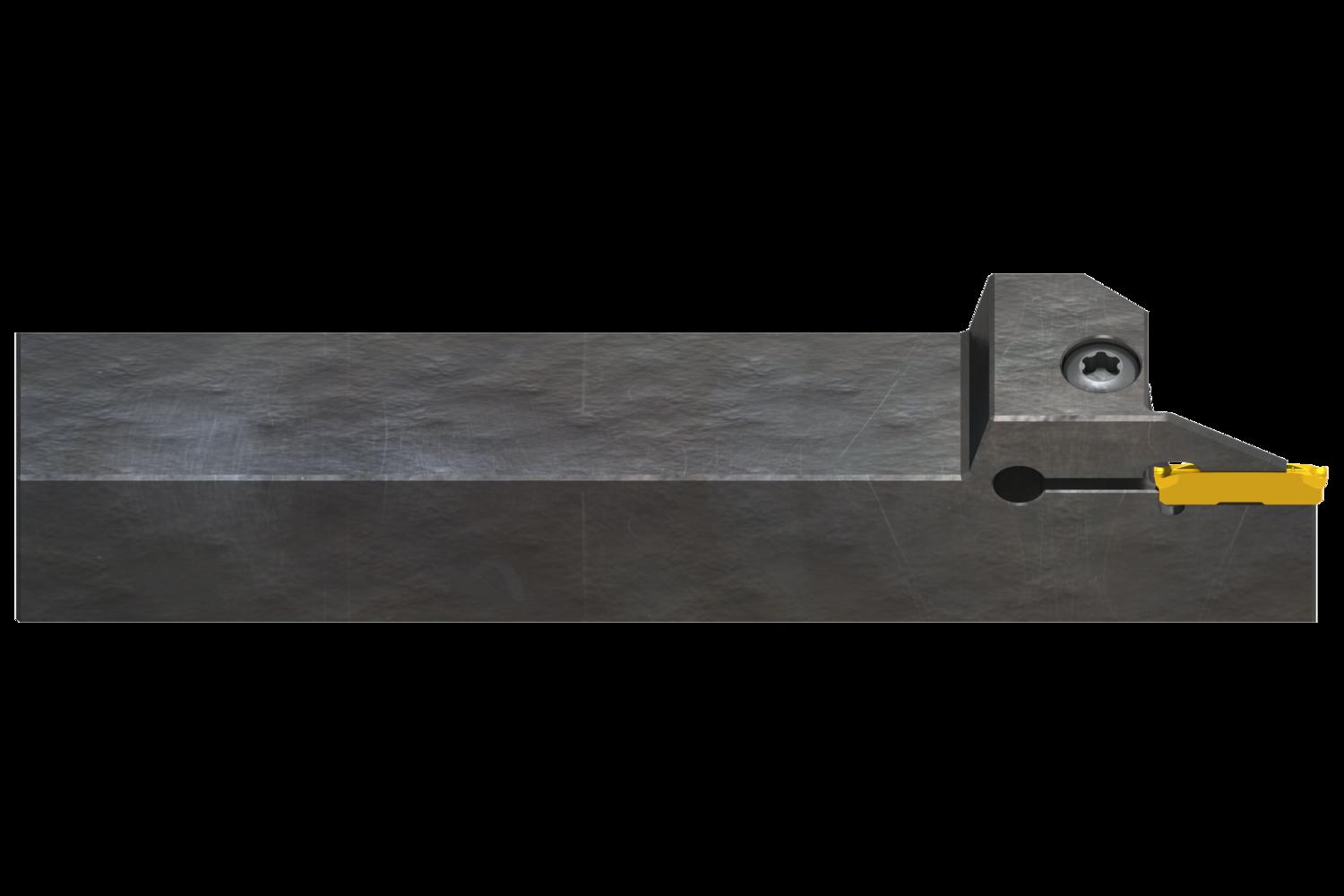

PRAMET GL1-S2020KFL-16-60 Turning holders for parting, grooving and copy turning

Description

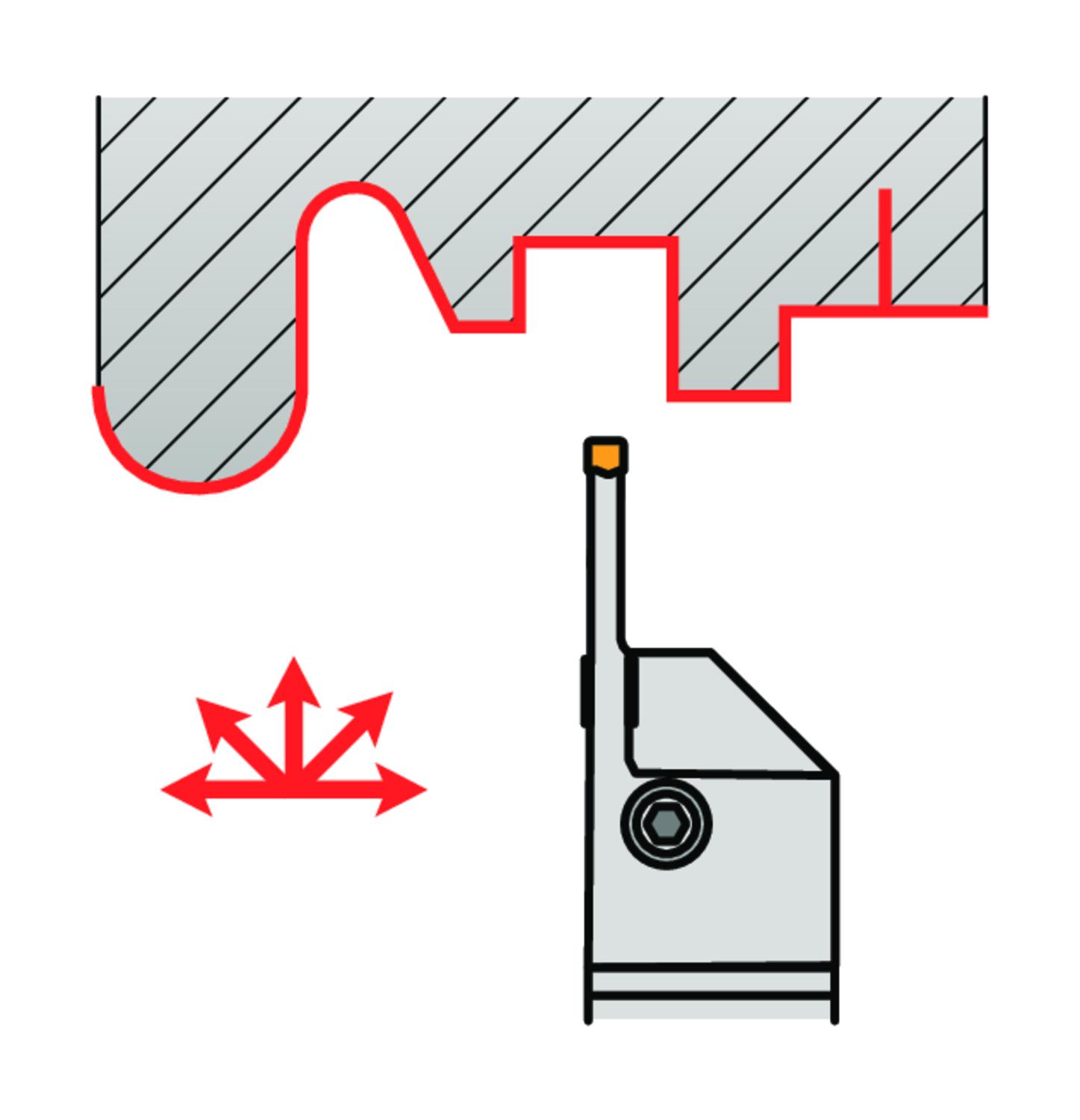

GL1-S2020KFL-16-60 is external left handed tool for GL inserts. Suited for radial grooving, parting-off, turning and profiling applications. Reinforced body design for longer tool life and low vibrations. Body treated for longer tool life

Additional information

Weight	0.3500 kg
barcode	3603604196574

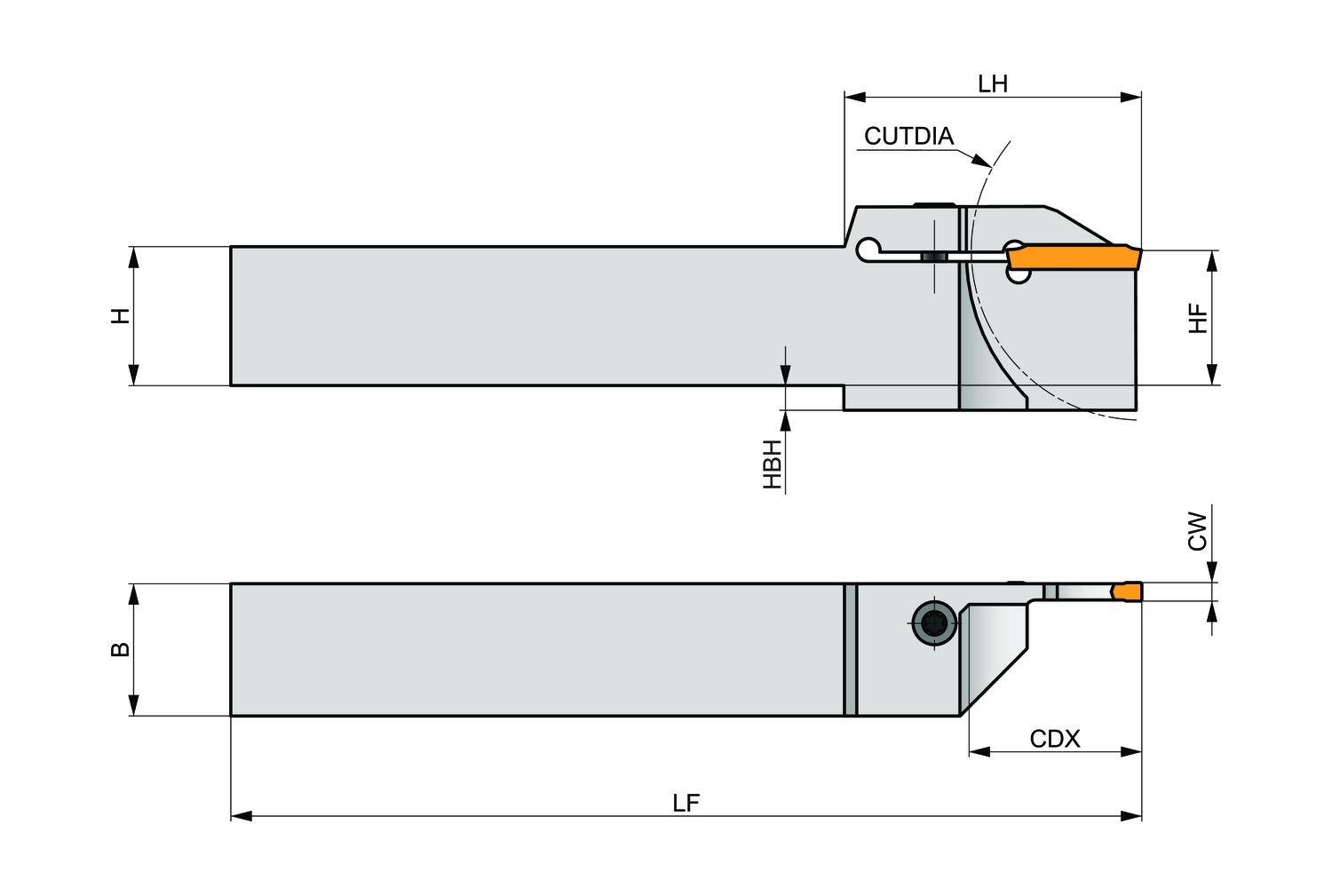

Additional Information	Description: Value EAN number: 3603604196574 Product number (SAP): 86044029 Ordering code ANSI: GL1-S2020KFL-16-60 Gross weight – grams: 378.8 Functional height – millimeter (HF): 20 mm Shank height – millimeter (H): 20 mm Shank width – millimeter (B): 20 mm Functional length – millimeter (LF): 125 mm Cutting width – millimeter (CW): 1.5 mm Cutting depth maximum – millimeter (CDX): 16 mm Work piece parting diameter maximum – millimeter (CUTDIA): 60 mm Net weight – grams: 350 Pocket Size: 1 ISO: GL1-S2020KFL-16-60
