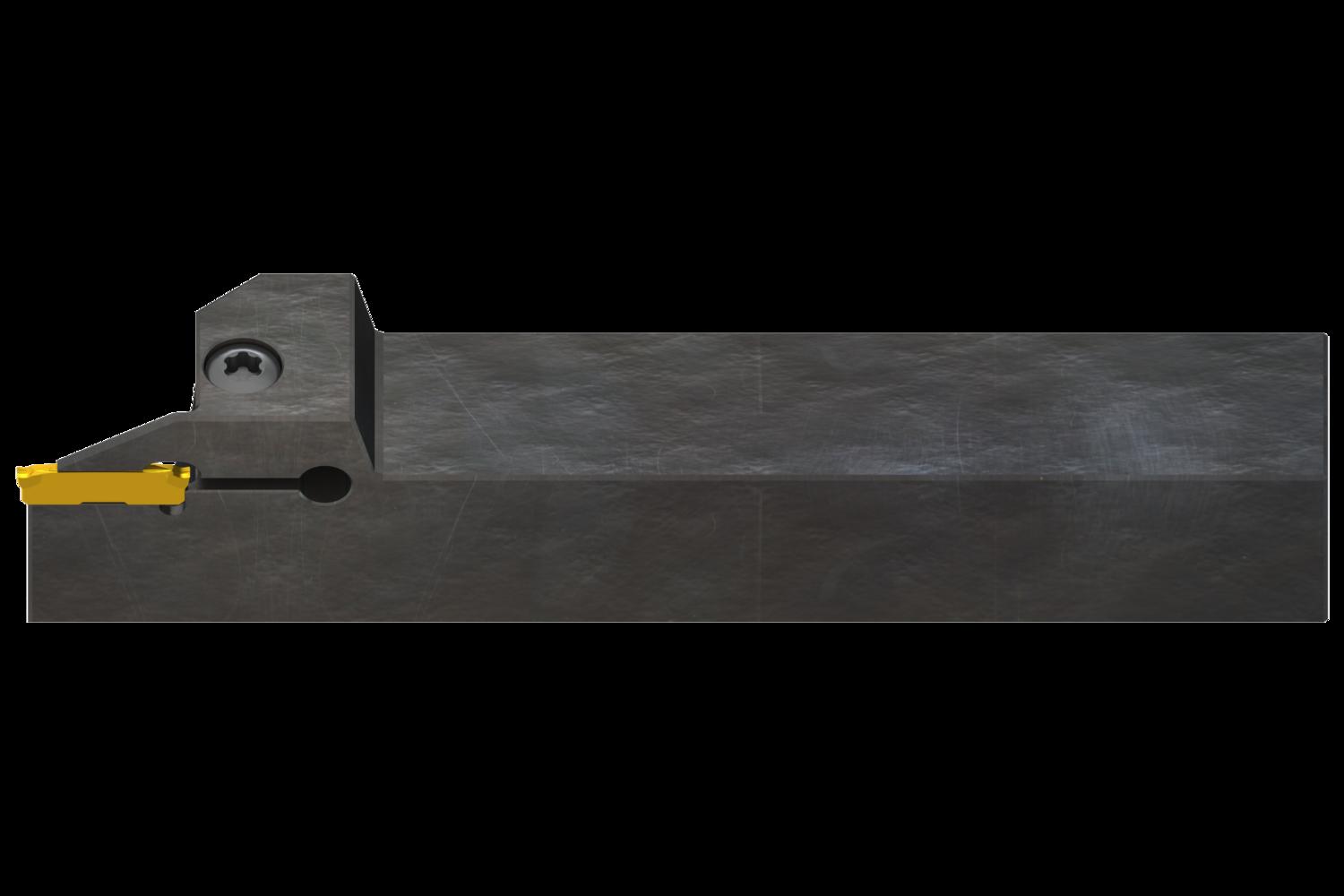

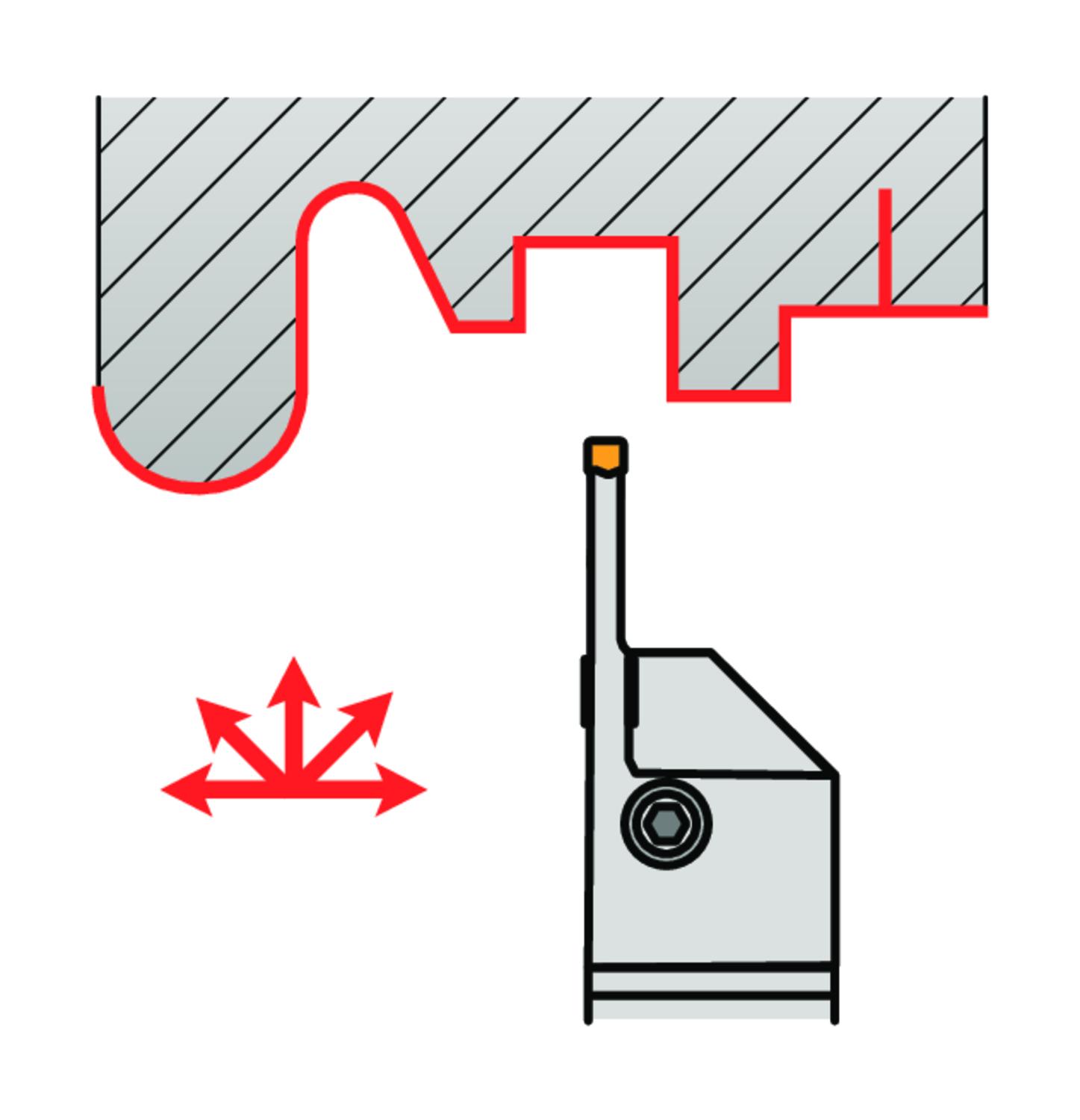

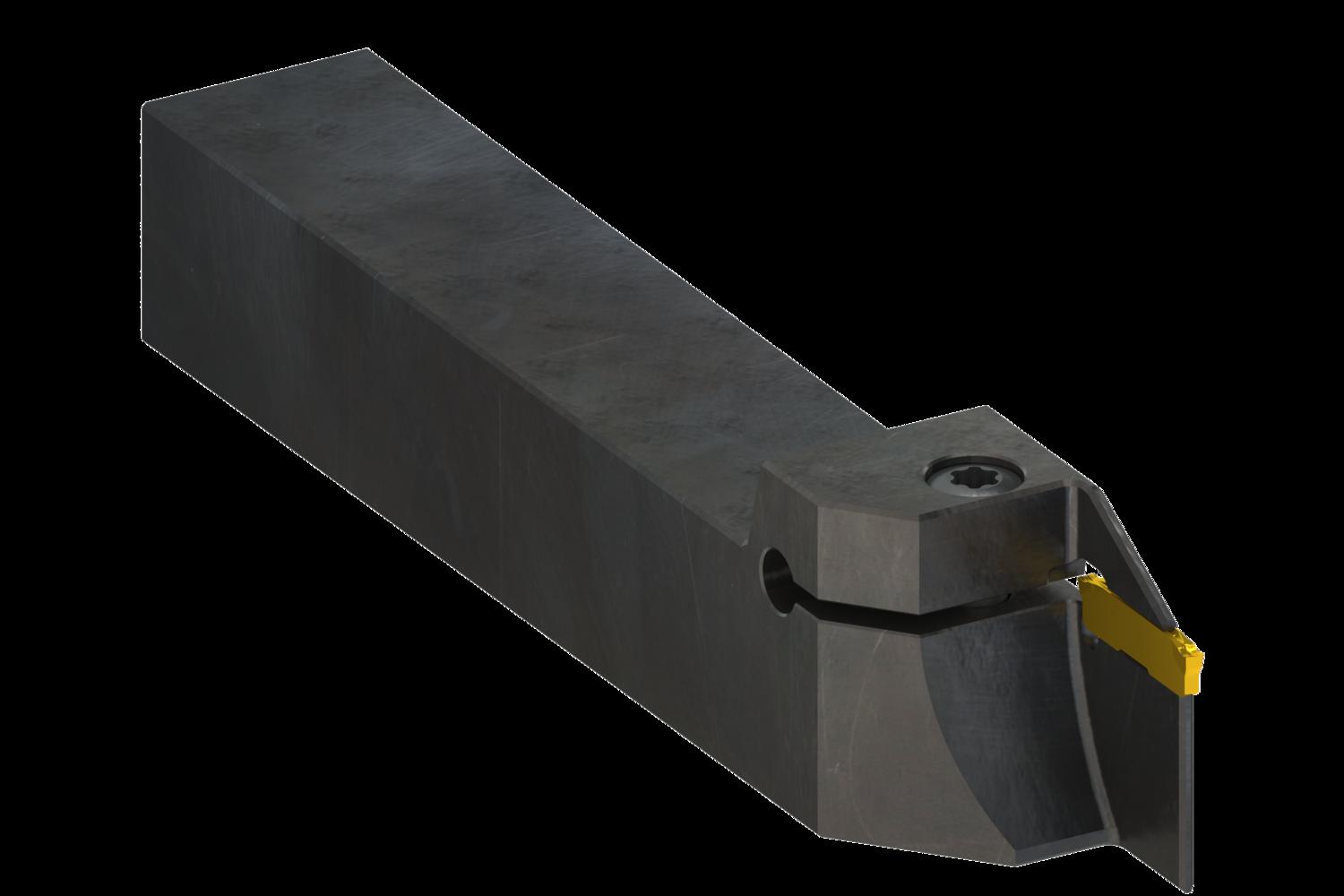

PRAMET GL1-S2020KFR-16-60 Turning holders for parting, grooving and copy turning

Description: Value
EAN number: 3603604196581
Product number (SAP): 86044030
Ordering code ANSI: GL1-S2020KFR-16-60
Gross weight – grams: 379

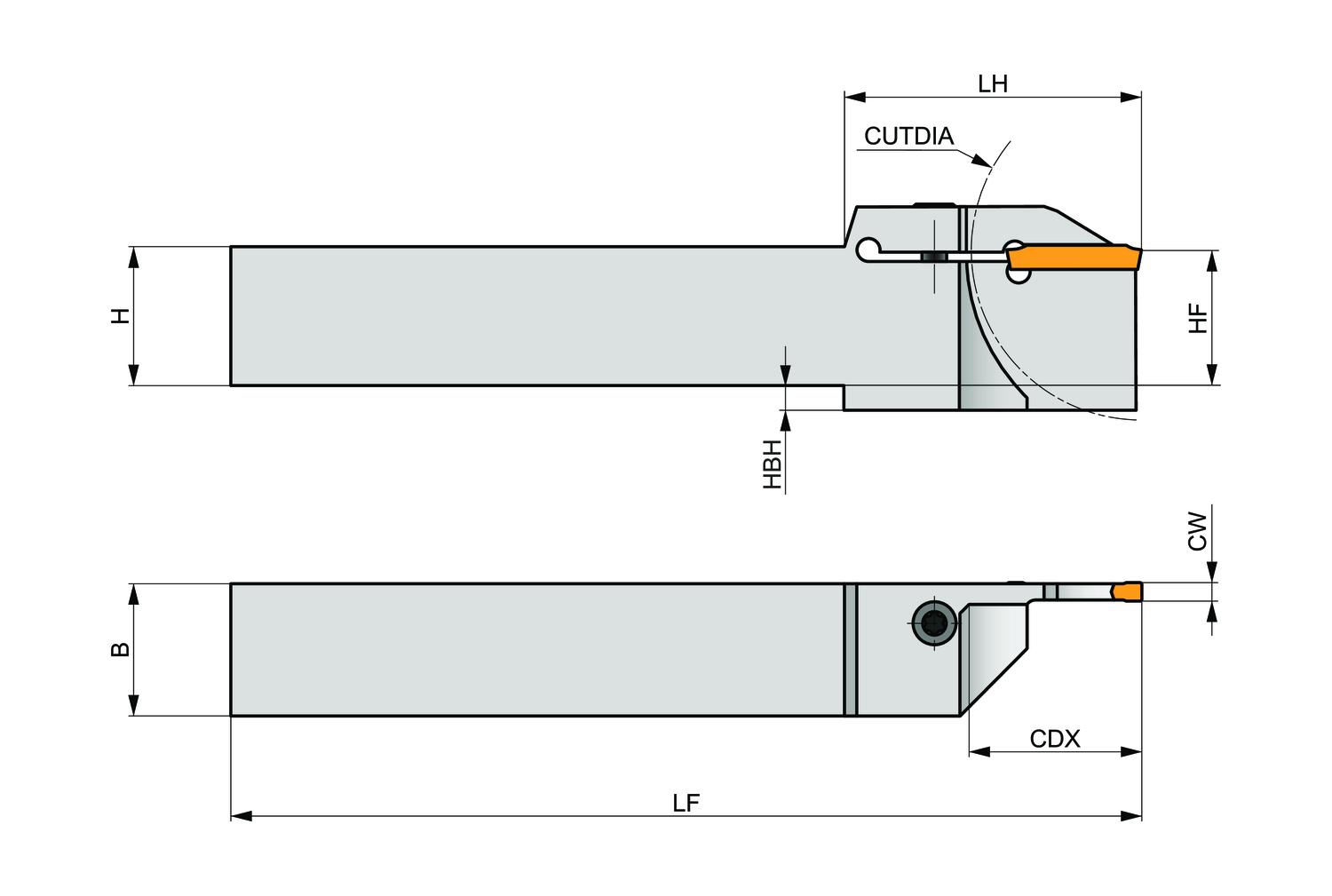

Functional height – millimeter (HF): 20 mm
Shank height – millimeter (H): 20 mm
Shank width – millimeter (B): 20 mm
Functional length – millimeter (LF): 125 mm
Cutting width – millimeter (CW): 1.5 mm
Cutting depth maximum – millimeter (CDX): 16 mm
Work piece parting diameter maximum – millimeter (CUTDIA): 60 mm
Net weight – grams: 350
Pocket Size: 1
ISO: GL1-S2020KFR-16-60
