PRAMET GL1-S32MBL-16 Turning holders for parting, grooving and copy turning

Product Code: GL1-S32MBL-16

$209.61$190.55 Ex. GST

Product Code: GL1-S32MBL-16 SKU GL1-S32MBL-16 Categories ,

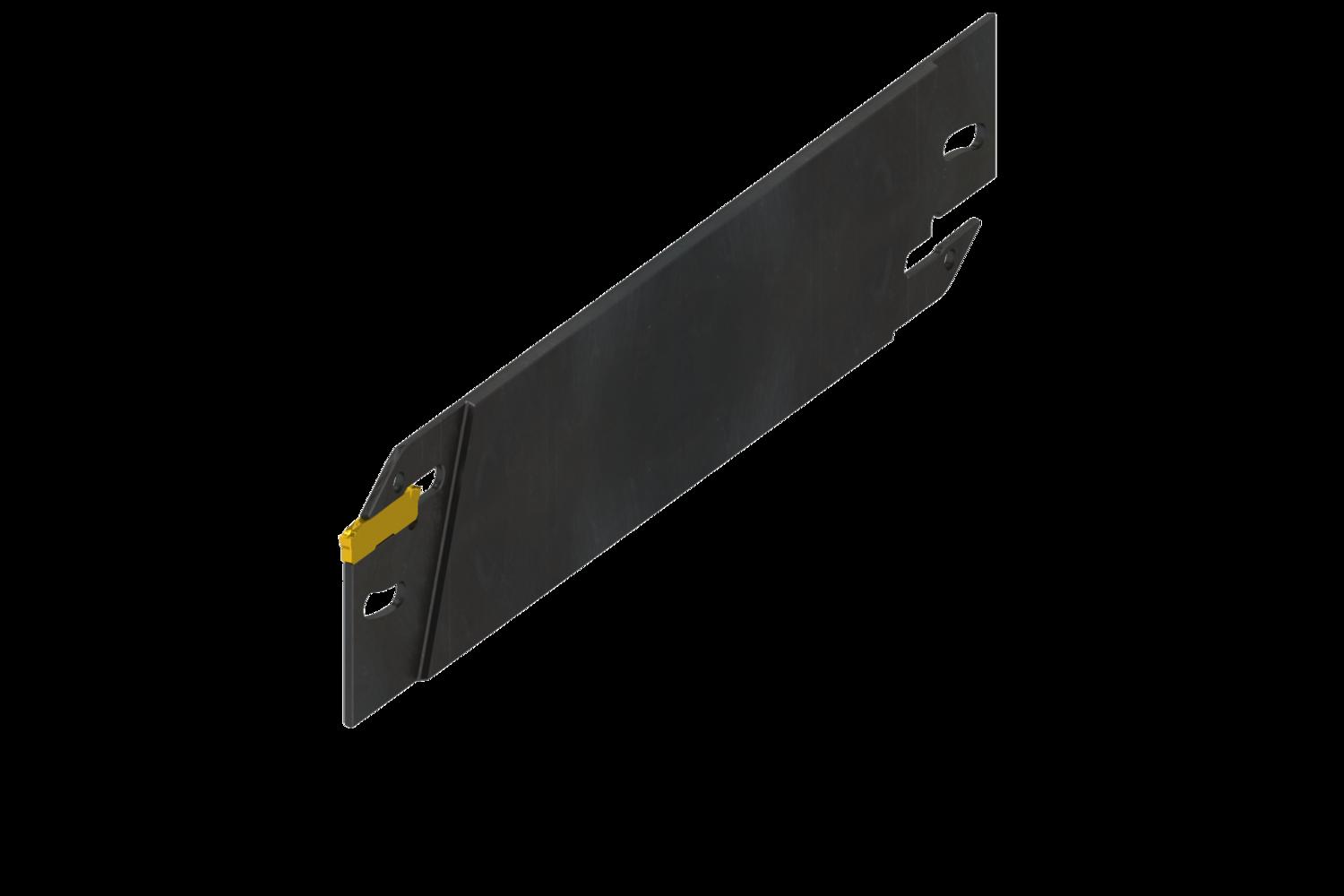

PRAMET GL1-S32MBL-16 Turning holders for parting, grooving and copy turning

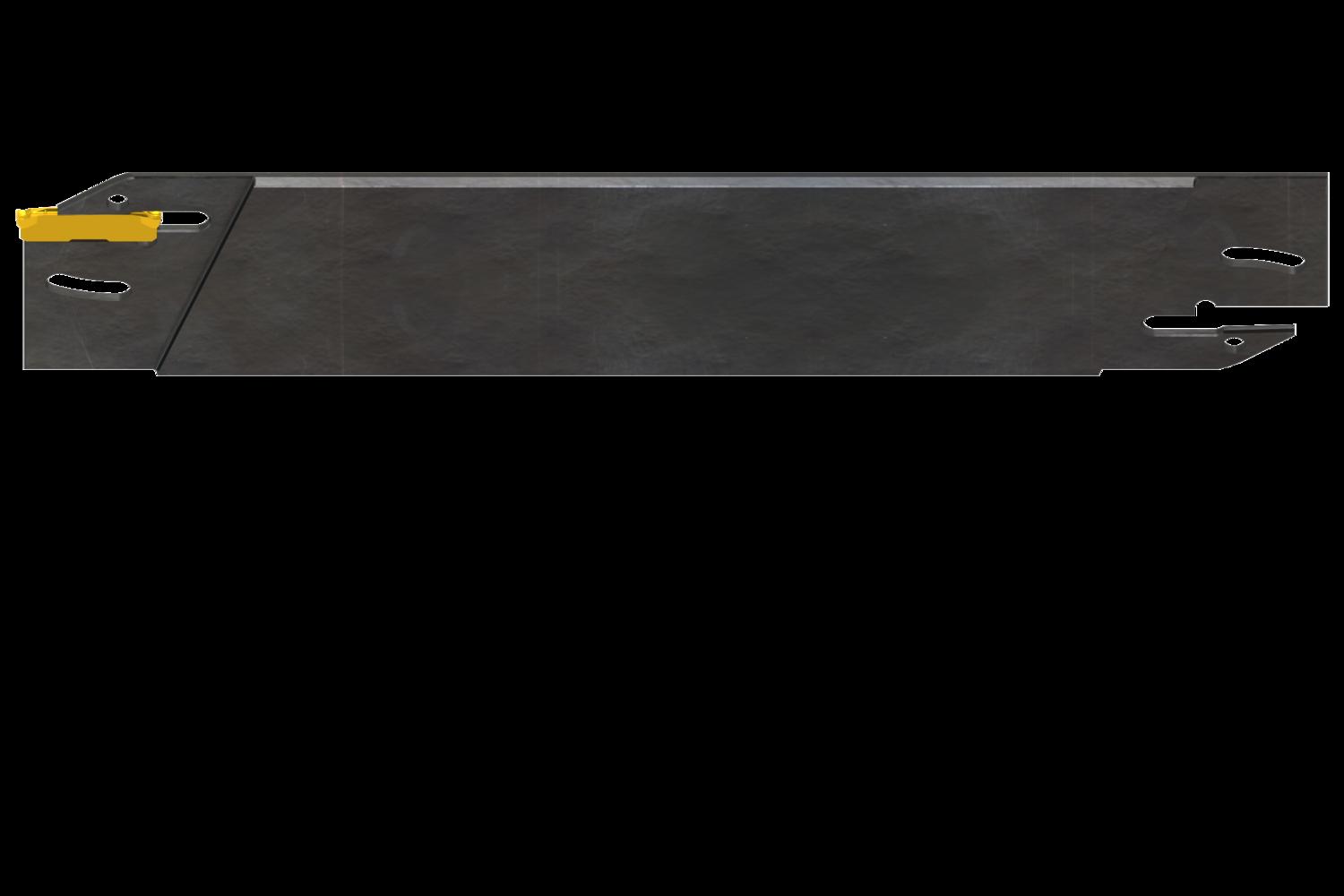

PRAMET GL1-S32MBL-16 Turning holders for parting, grooving and copy turning - Image 2
PRAMET GL1-S32MBL-16 Turning holders for parting, grooving and copy turning - Image 3
PRAMET GL1-S32MBL-16 Turning holders for parting, grooving and copy turning - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

GL1-S32MBL-16 is blade for GL inserts, suited for parting-off and grooving applications. Easy inserts replacement by specific key (included in package). Can be fitted into the DU, D tool block. Body treated for longer tool life

Additional information

Weight 0.0716 kg
barcode

3603604196611
Additional Information

Description: Value
EAN number: 3603604196611
Product number (SAP): 86044033
Ordering code ANSI: GL1-S32MBL-16
Gross weight – grams: 163.4

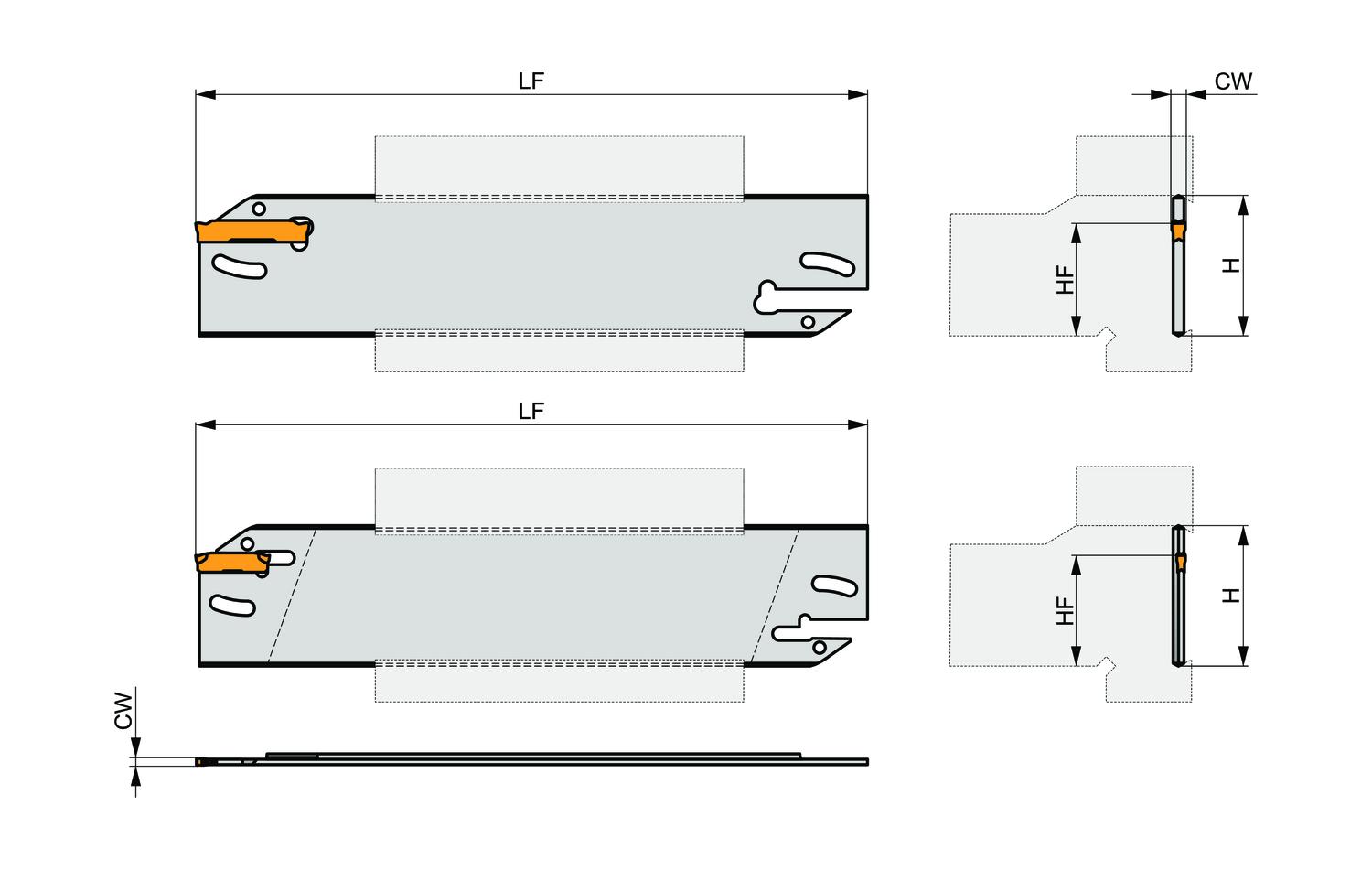

Functional height – millimeter (HF): 32 mm
Shank height – millimeter (H): 32 mm
Functional length – millimeter (LF): 150 mm
Cutting width – millimeter (CW): 1.5 mm

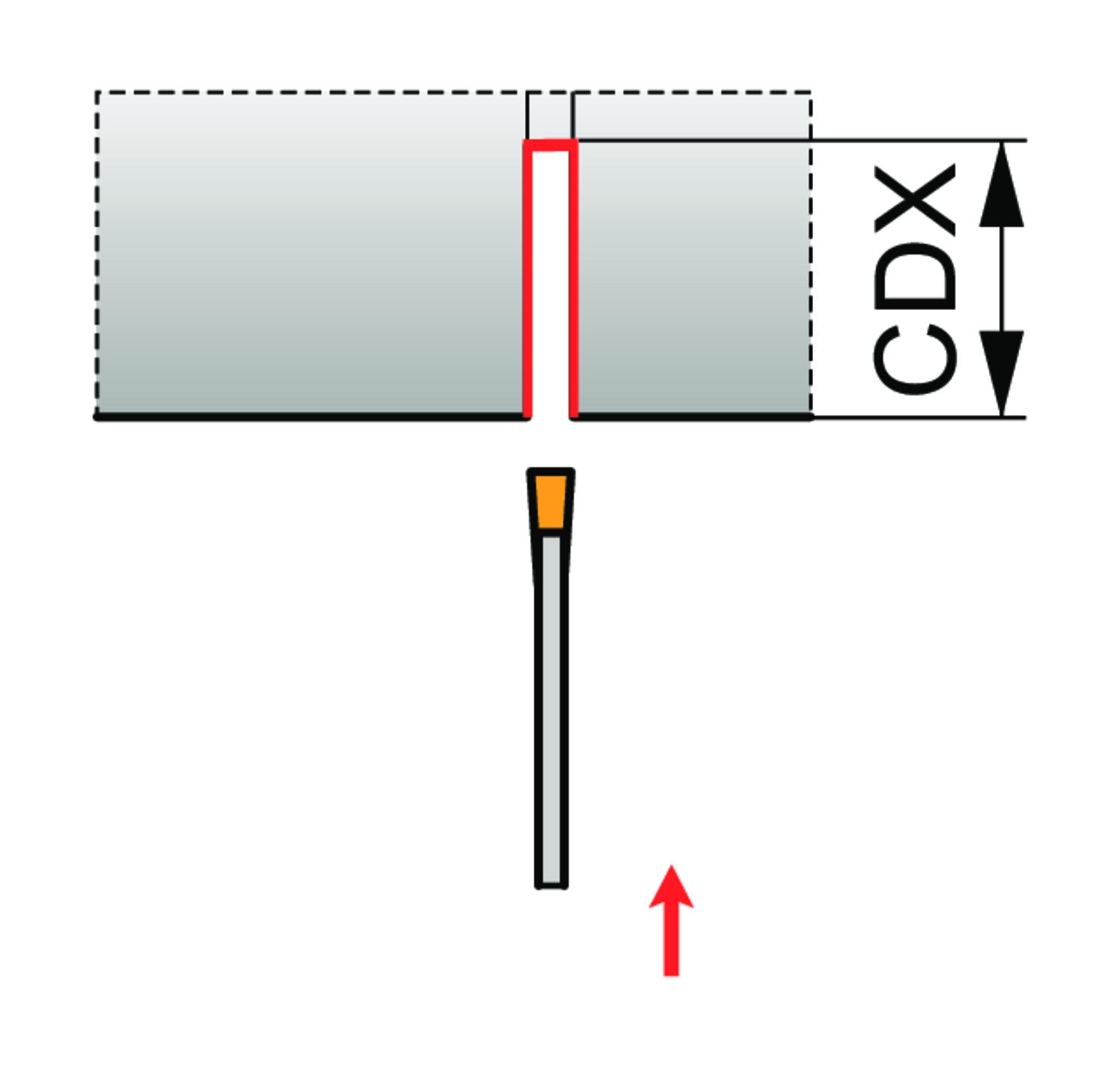

Cutting depth maximum – millimeter (CDX): 16 mm
Net weight – grams: 71.6
Pocket Size: 1
ISO: GL1-S32MBL-16
