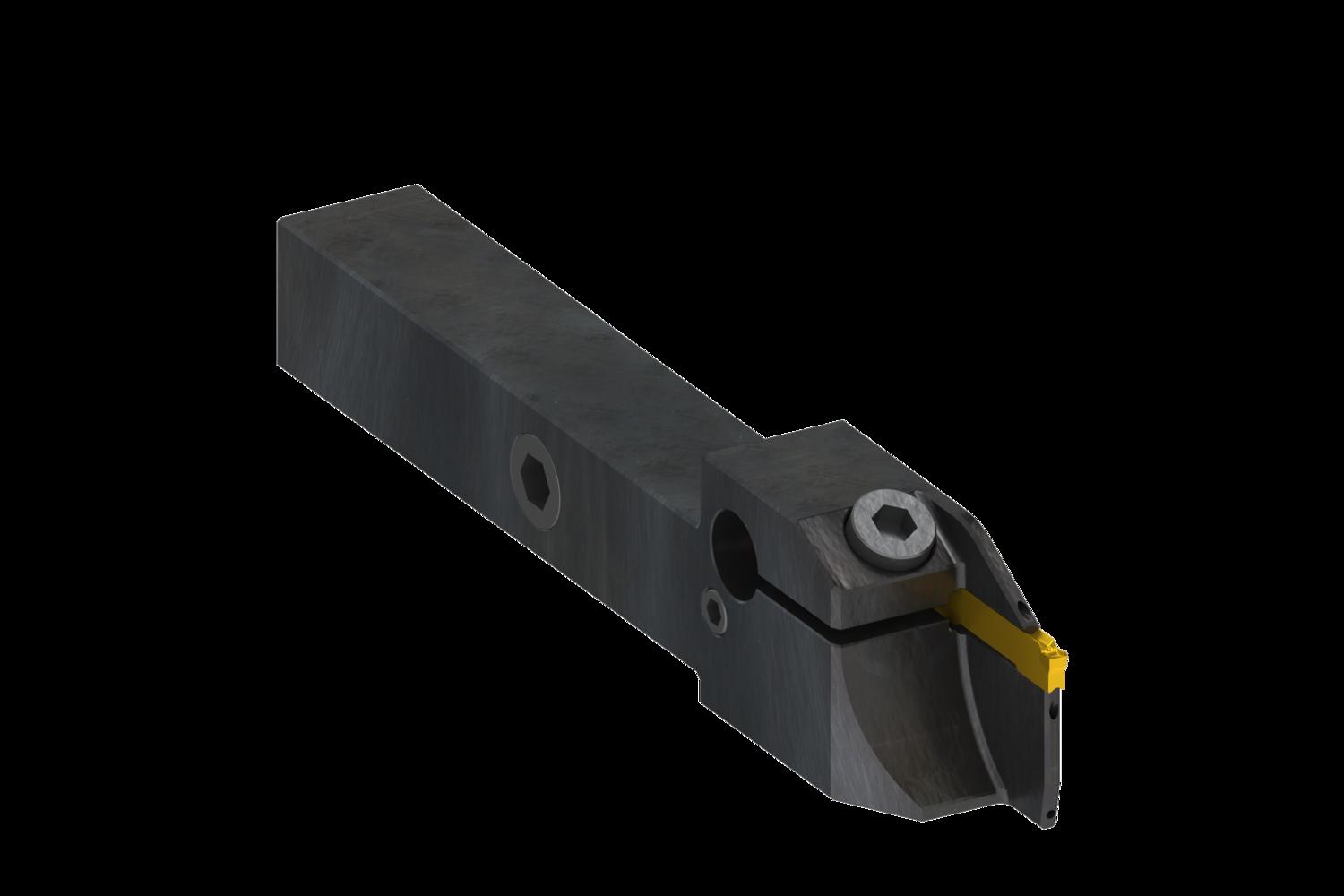

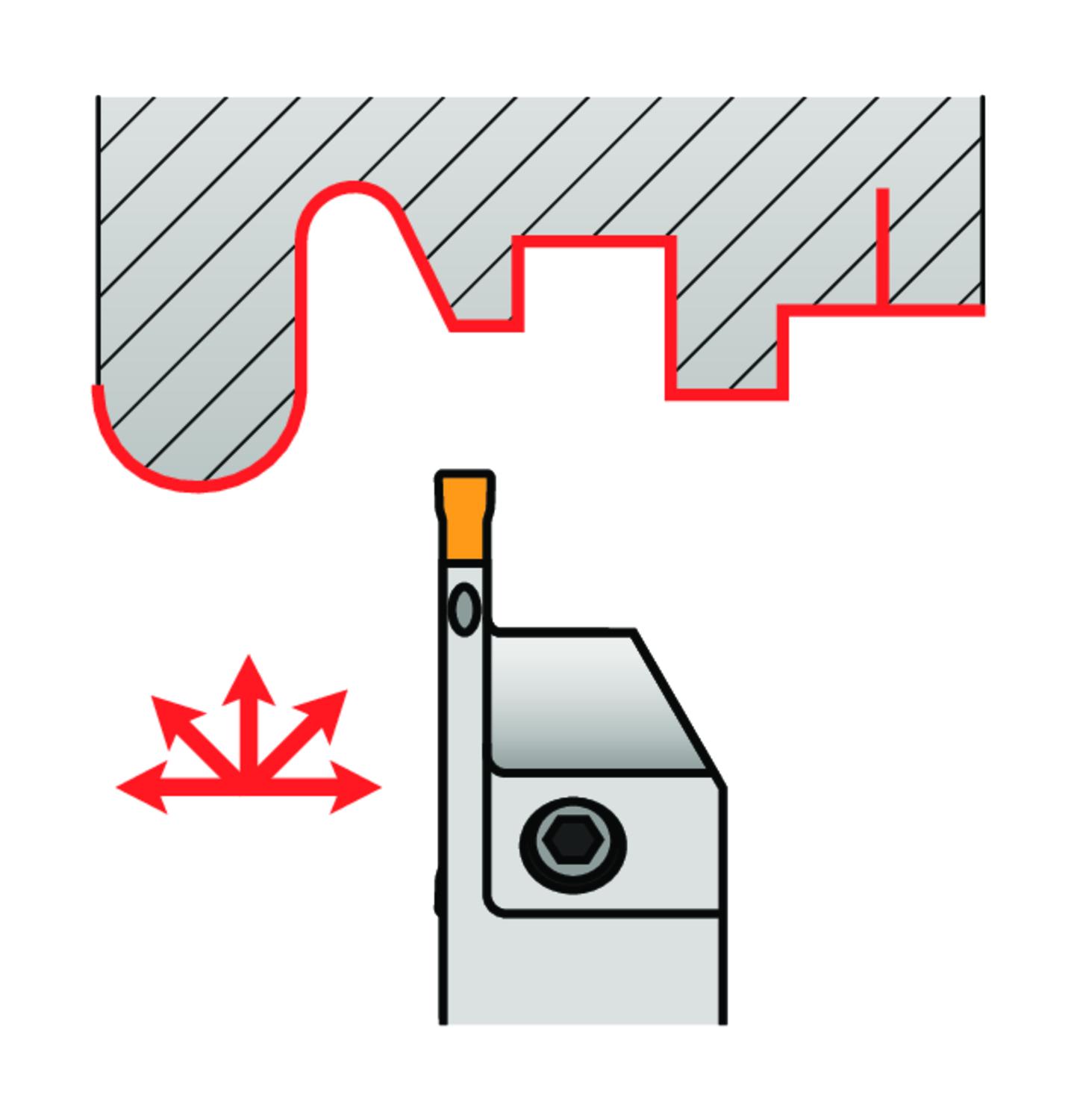

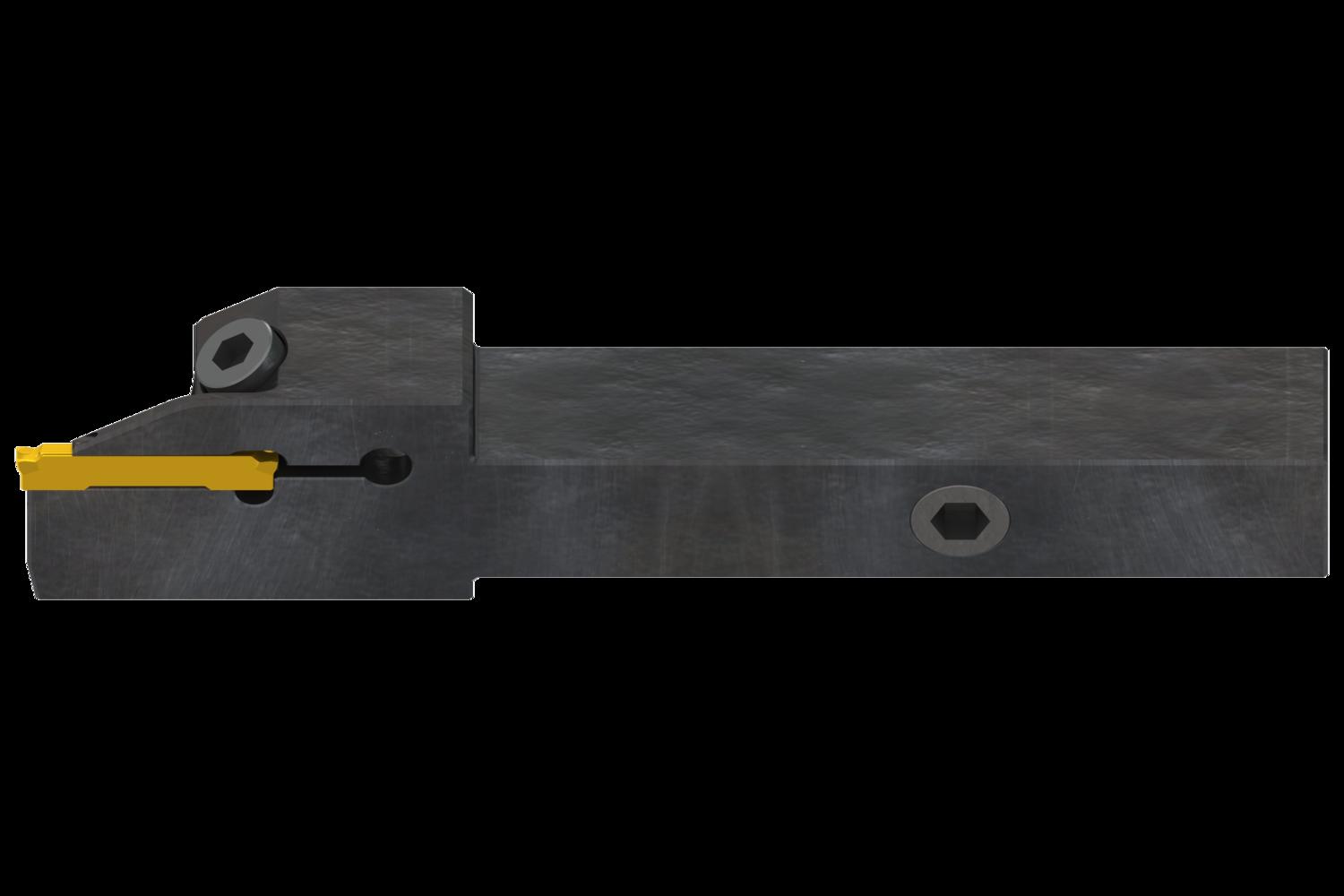

PRAMET GL2-A1616KFR-16-45 Turning holders for parting, grooving and copy turning

Description: Value
EAN number: 3603603947375
Product number (SAP): 86039524
Ordering code ANSI: GL2-A1616KFR-16-45
Gross weight – grams: 211.8
Functional height – millimeter (HF): 16 mm
Head bottom offset height – millimeter (HBH): 3 mm
Shank height – millimeter (H): 16 mm
Shank width – millimeter (B): 16 mm
Functional length – millimeter (LF): 125 mm
Cutting width – millimeter (CW): 2 mm
Cutting depth maximum – millimeter (CDX): 16 mm
Work piece parting diameter maximum – millimeter (CUTDIA): 45 mm
Net weight – grams: 211.8
Pocket Size: 2
