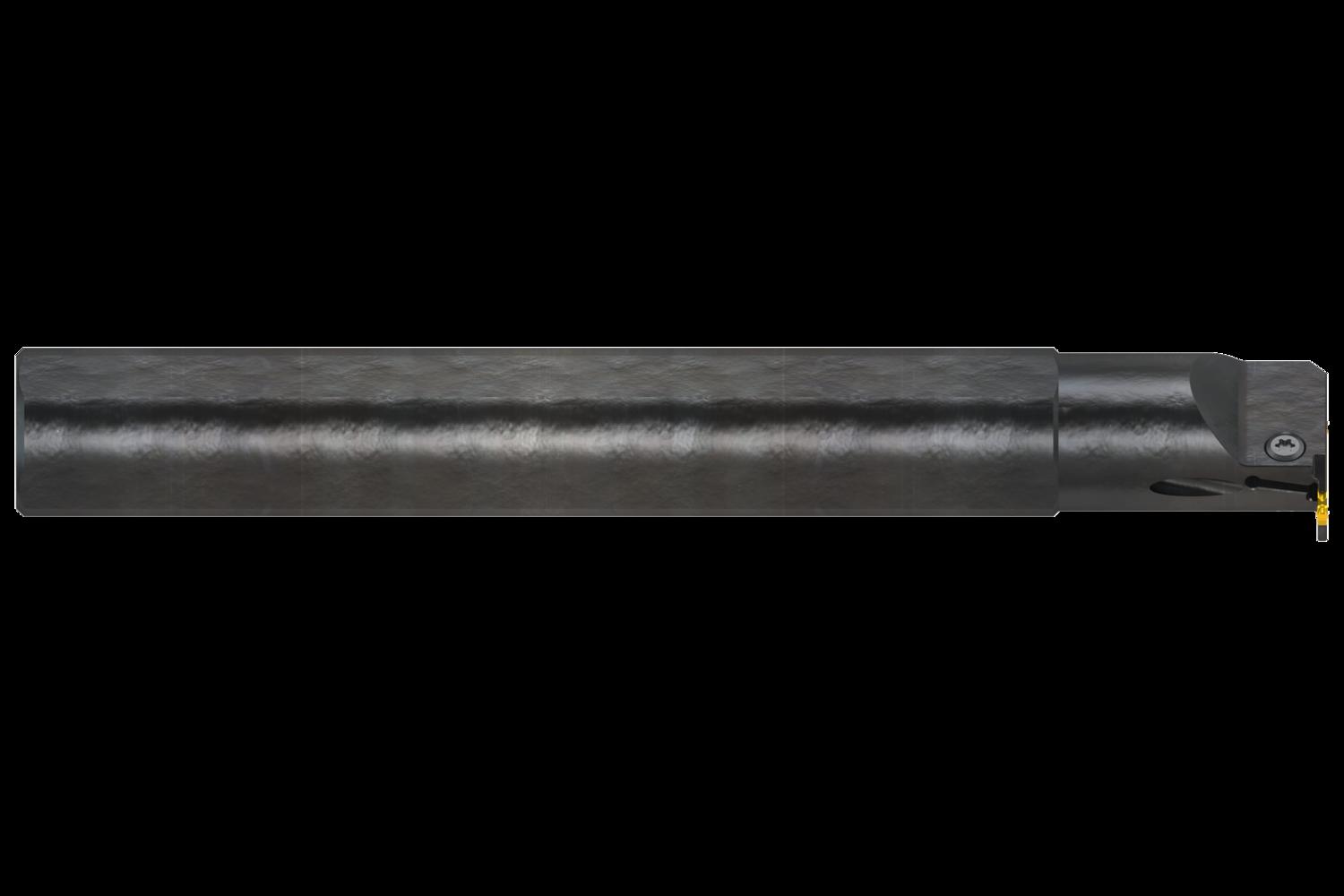

PRAMET GL2-A32SGL-06-40 Turning holders for parting, grooving and copy turning

Description

GL2-A32SGL-06-40 is internal left handed tool with internal coolant for GL inserts, designed with reinforced seating and blade for security. Suited for internal grooving, turning and profiling applications. Body treated for longer tool life

Additional information

Weight	1.3800 kg
barcode	3603604193146

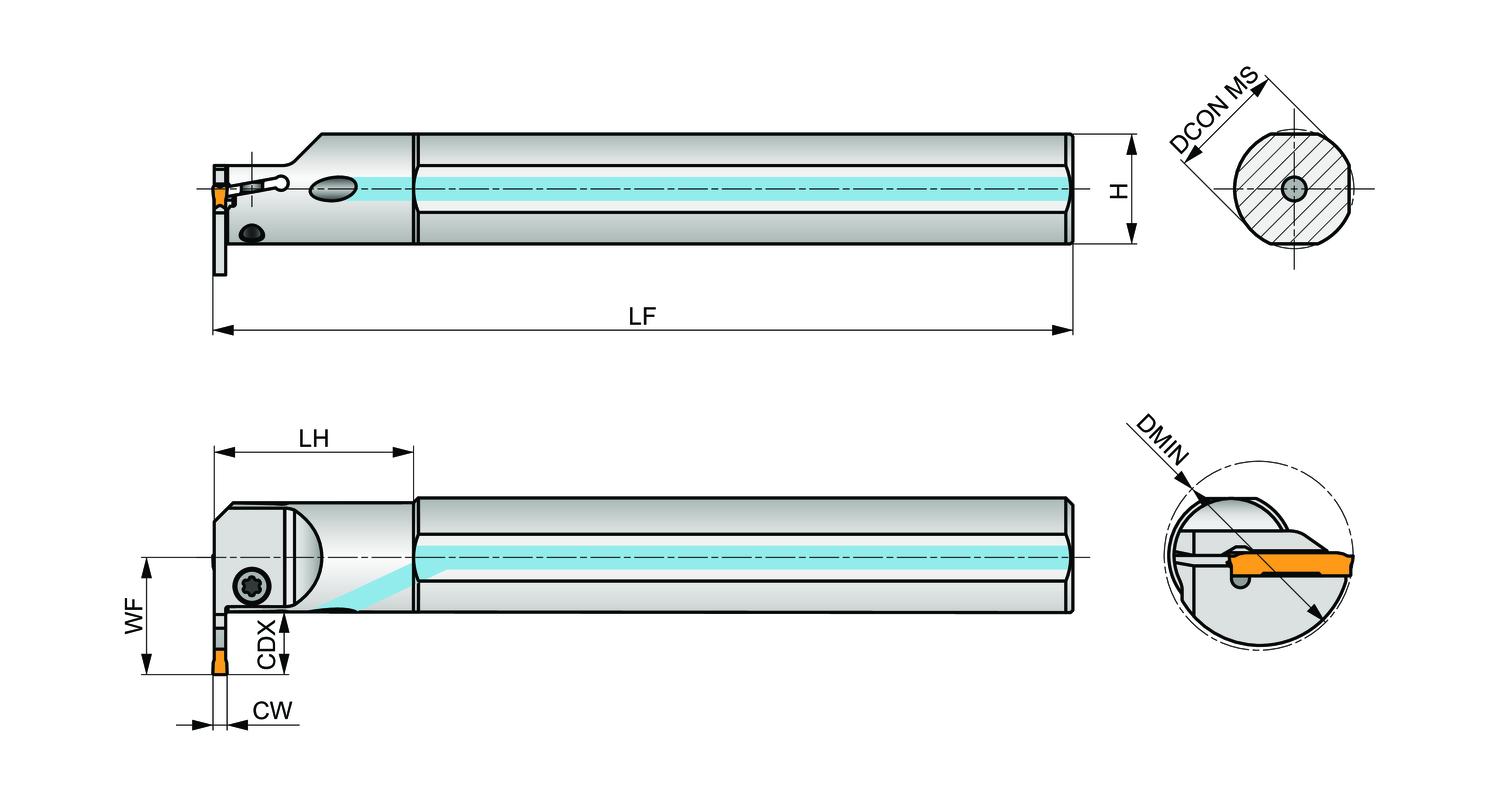

Additional Information	Description: Value Product name: GL2-A32SGL-06-40 Connection diameter – millimeter (DCON MS): 32 mm Shank height – millimeter (H): 30 mm Functional width – millimeter (WF): 22 mm Functional length – millimeter (LF): 250 mm Head length – millimeter (LH): 51.2 mm Cutting width – millimeter (CW): 2 mm Cutting depth maximum – millimeter (CDX): 6 mm Minimum bore diameter – millimeter (DMIN): 40 mm Net weight – grams: 1380 Pocket Size: 2
