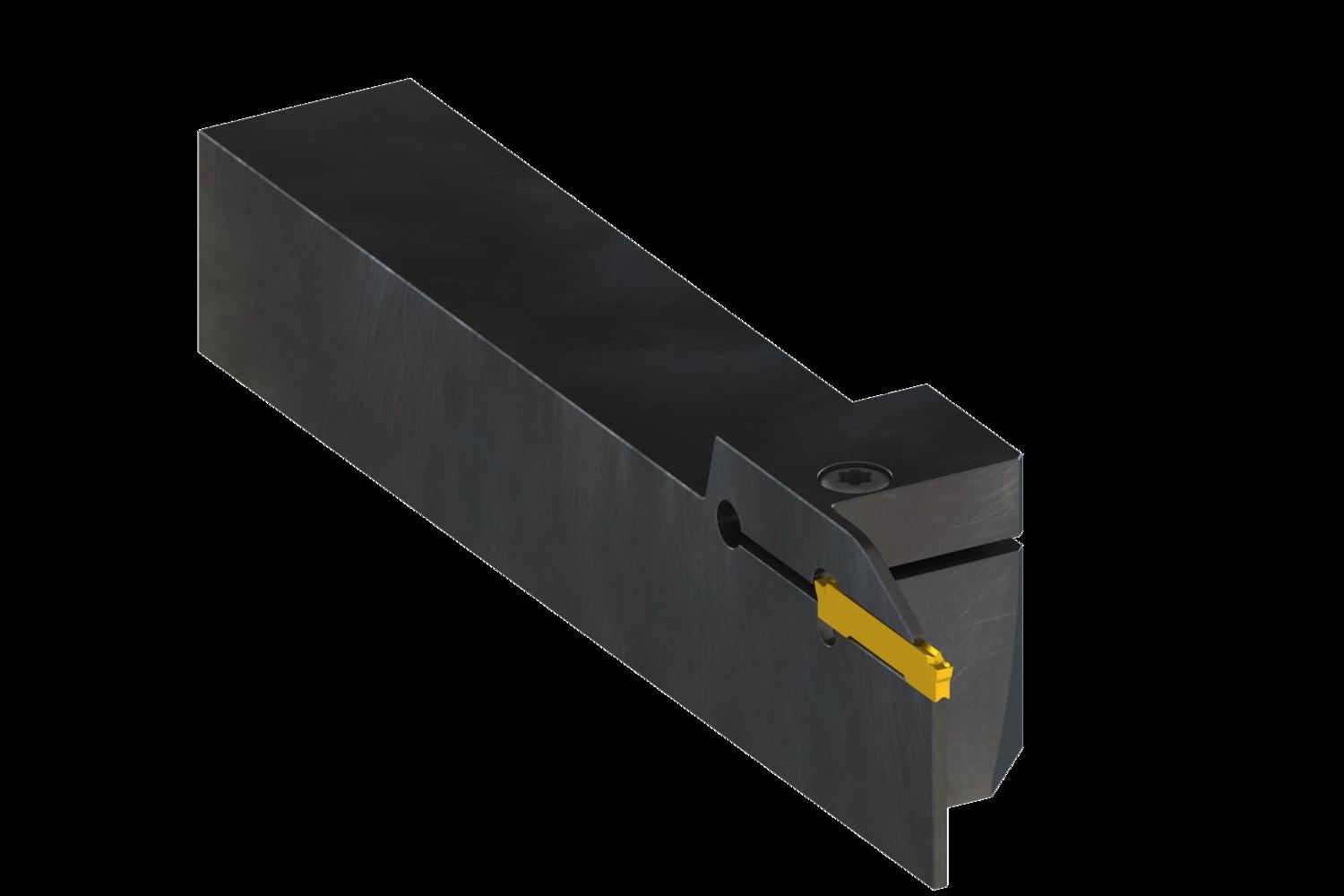

PRAMET GL2-S2525MFL-24-80 Turning holders for parting, grooving and copy turning

Description: Value
EAN number: 3603603816251
Product number (SAP): 86037379
Ordering code ANSI: GL2-S2525MFL-24-80
Gross weight – grams: 682.2
Functional height – millimeter (HF): 25 mm
Shank height – millimeter (H): 25 mm
Shank width – millimeter (B): 25 mm
Functional length – millimeter (LF): 150 mm
Cutting width – millimeter (CW): 2 mm
Cutting depth maximum – millimeter (CDX): 24 mm
Work piece parting diameter maximum – millimeter (CUTDIA): 80 mm
Net weight – grams: 643
Pocket Size: 2
ISO: GL2-S2525MFL-24-80
