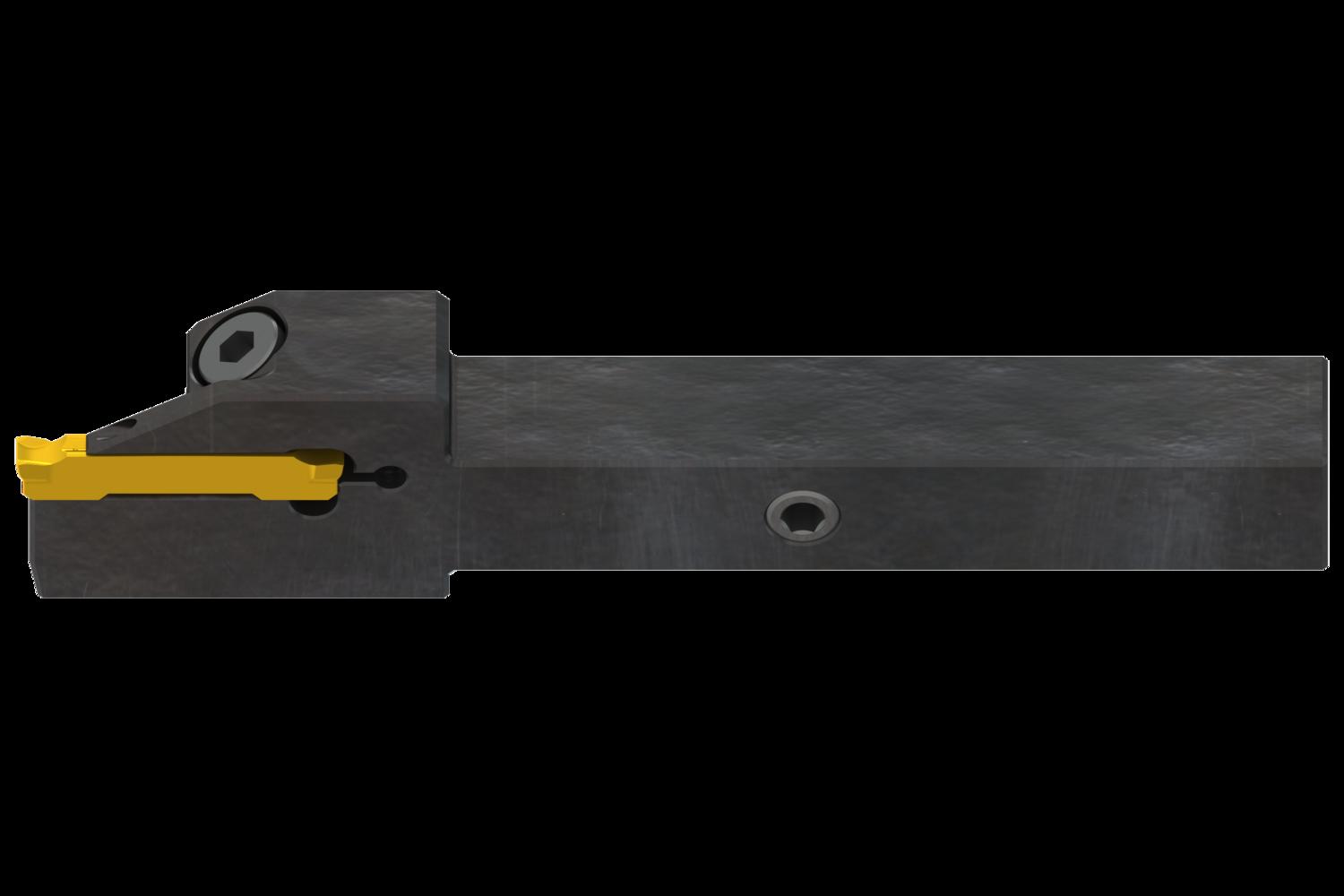

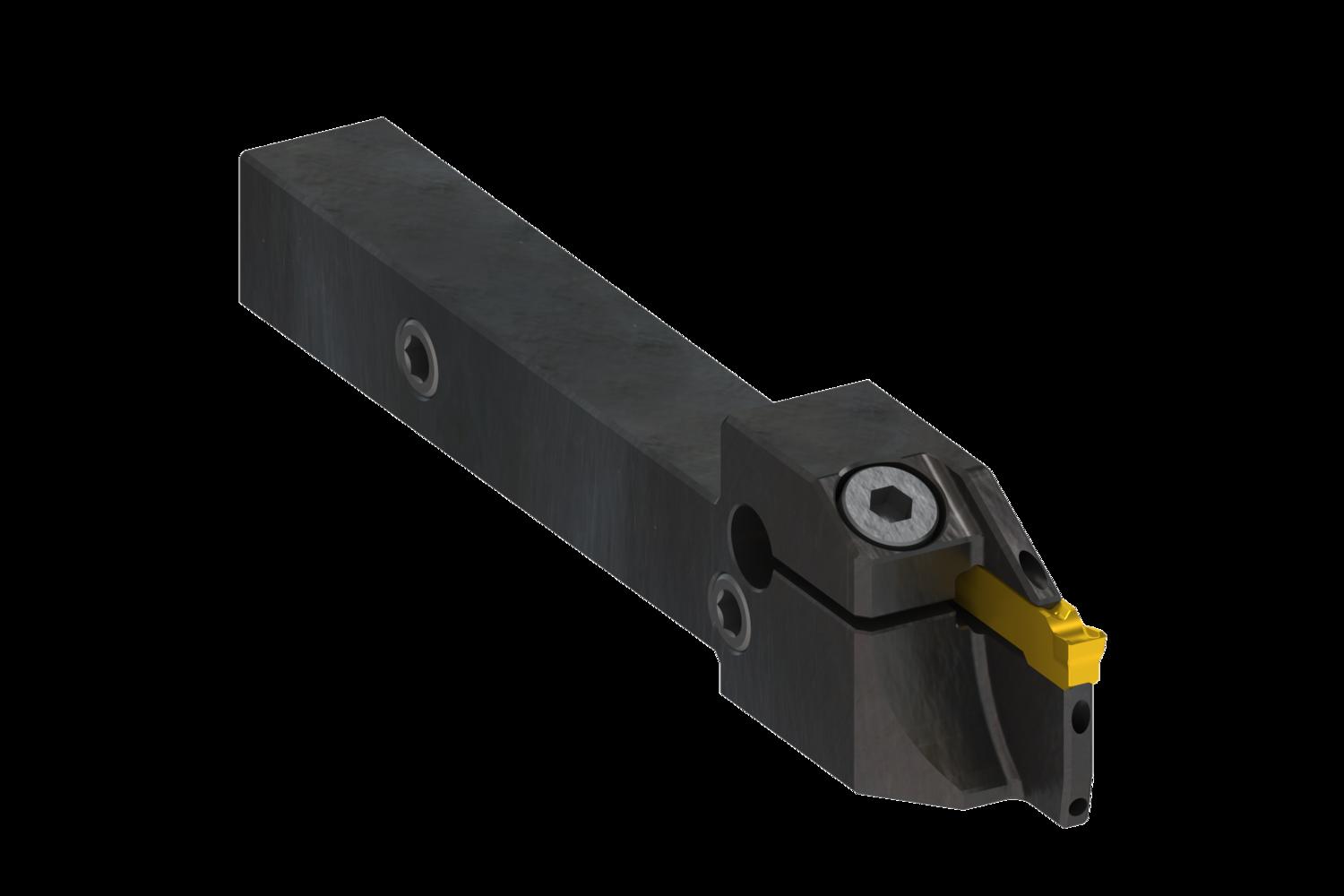

PRAMET GL3-A1212HFR-12-40 Turning holders for parting, grooving and copy turning

Description: Value
EAN number: 3603603947436
Product number (SAP): 86039530
Ordering code ANSI: GL3-A1212HFR-12-40
Gross weight – grams: 123.5

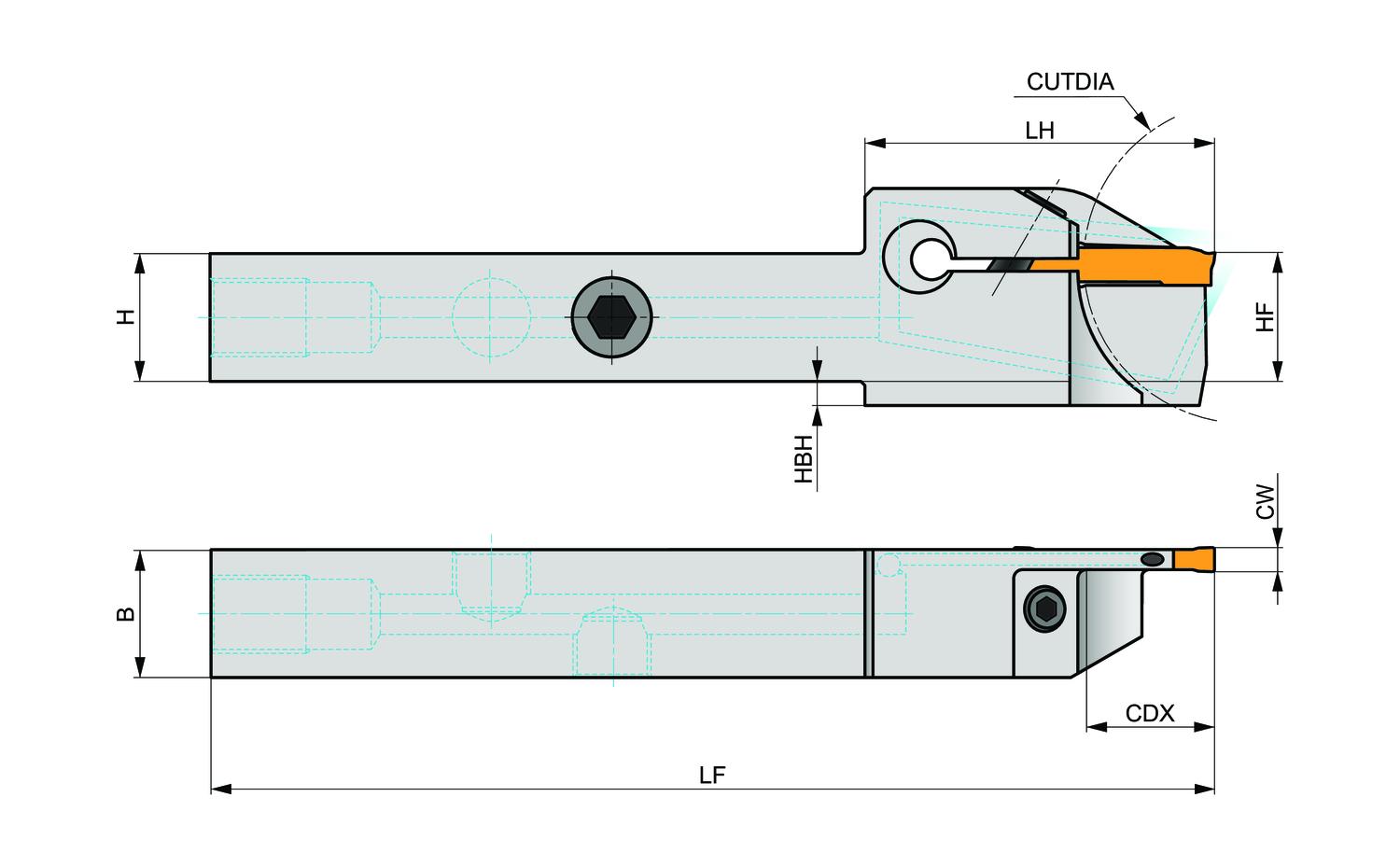

Functional height – millimeter (HF): 12 mm
Head bottom offset height – millimeter (HBH): 3 mm
Shank height – millimeter (H): 12 mm
Shank width – millimeter (B): 12 mm
Functional length – millimeter (LF): 100 mm
Cutting width – millimeter (CW): 3 mm
Cutting depth maximum – millimeter (CDX): 12 mm
Work piece parting diameter maximum – millimeter (CUTDIA): 40 mm
Net weight – grams: 123.5
Pocket Size: 3
