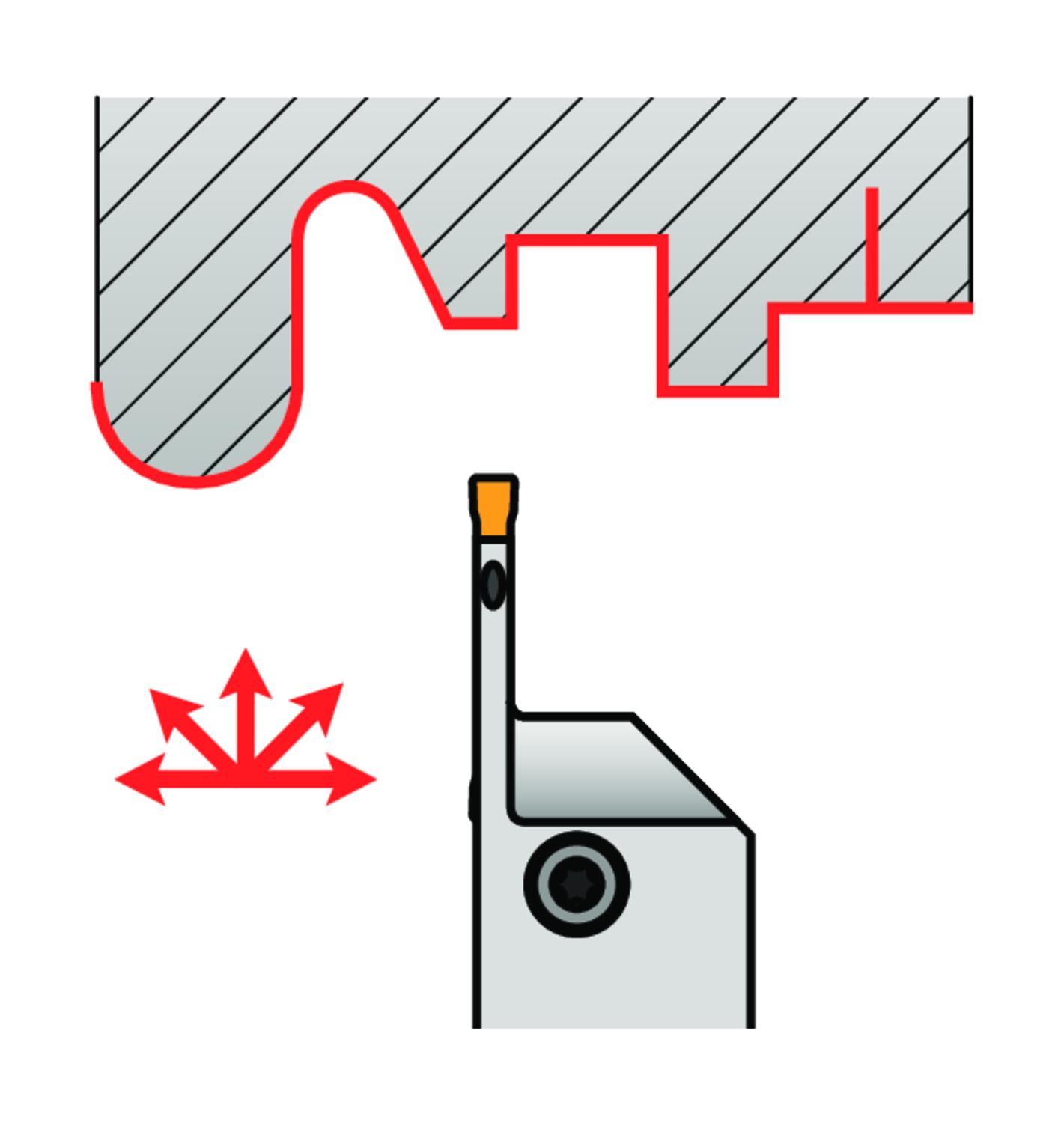

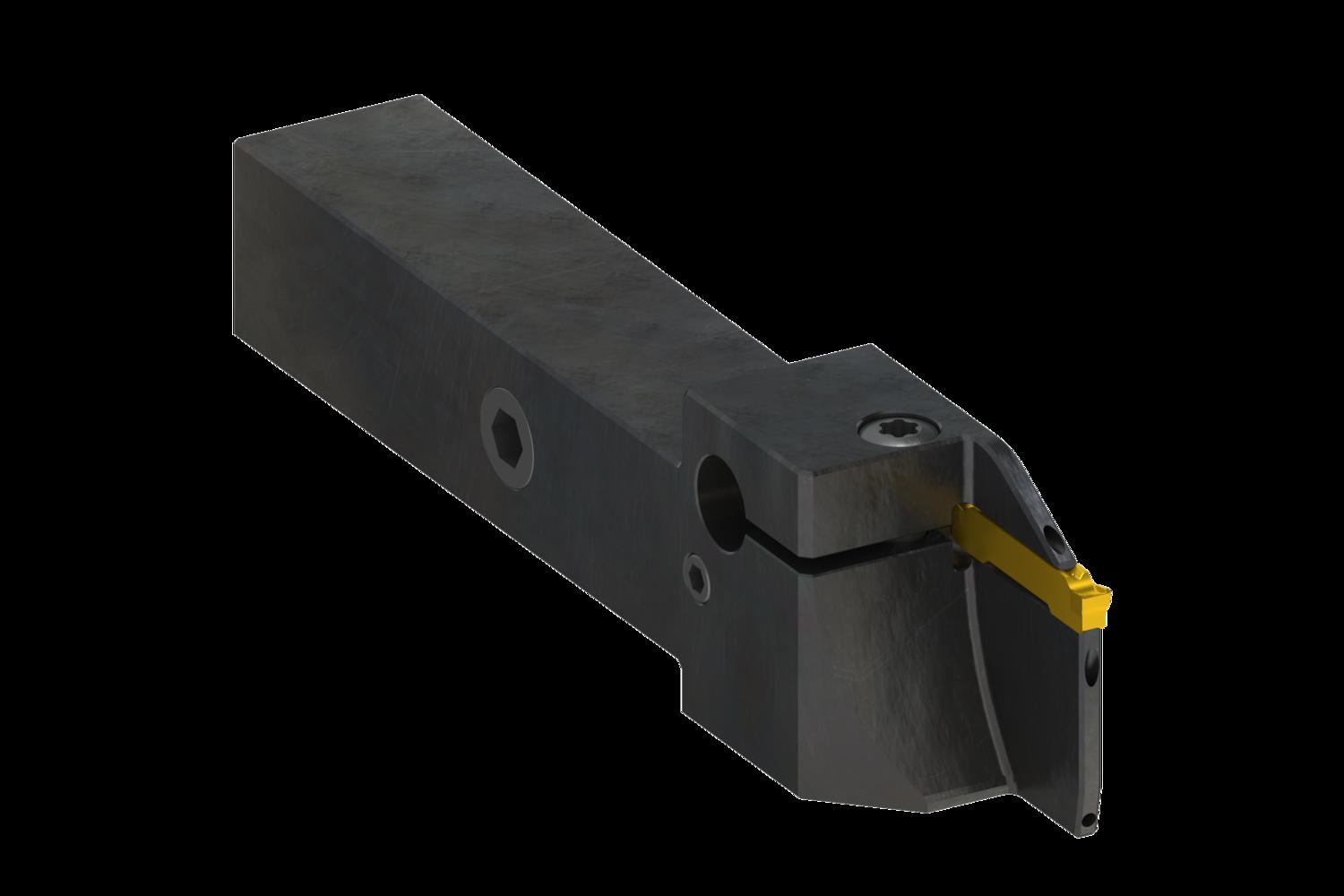

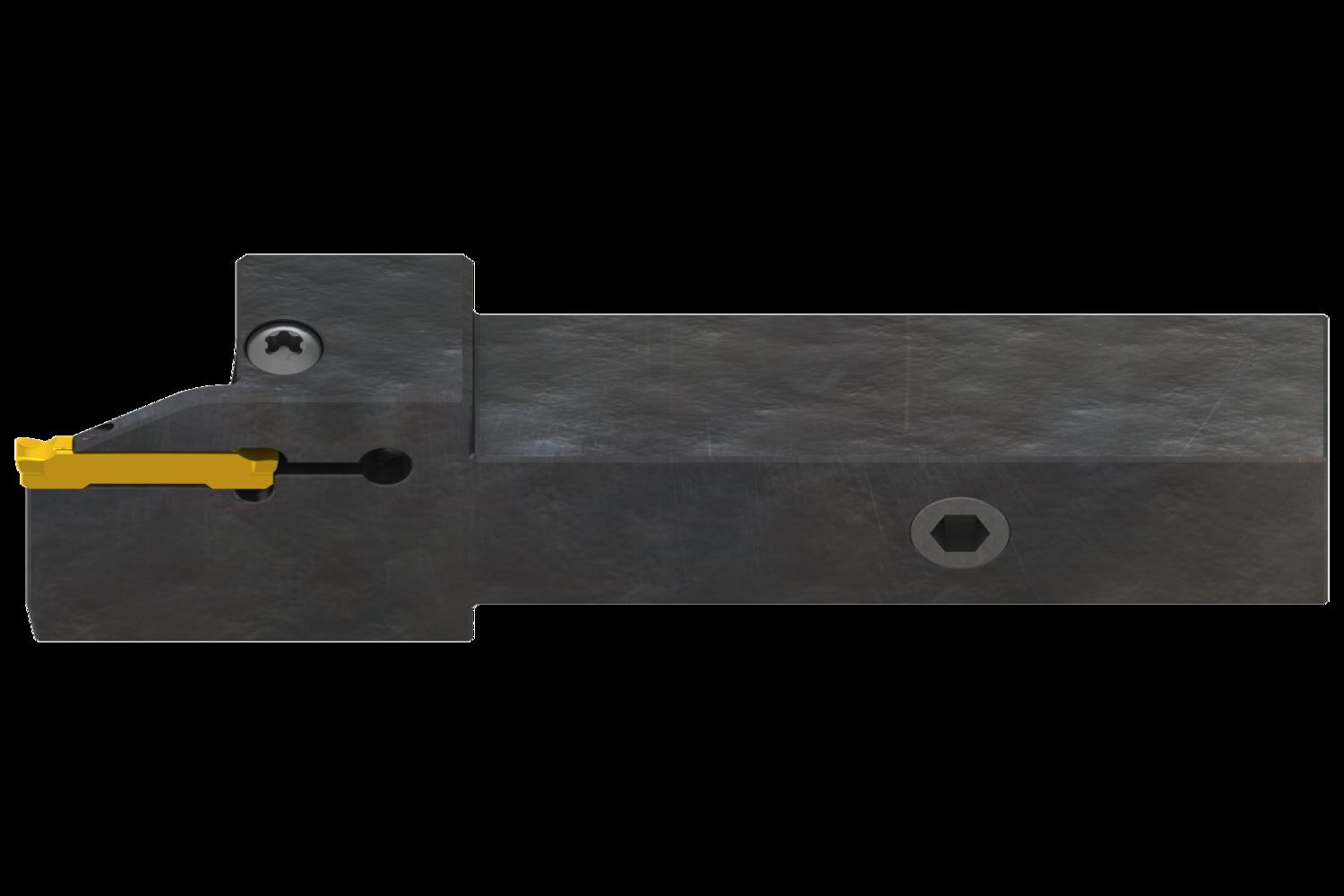

PRAMET GL3-A2020KFR-20-80 Turning holders for parting, grooving and copy turning

Description: Value
EAN number: 3603603947474
Product number (SAP): 86039534
Ordering code ANSI: GL3-A2020KFR-20-80
Gross weight – grams: 329.9

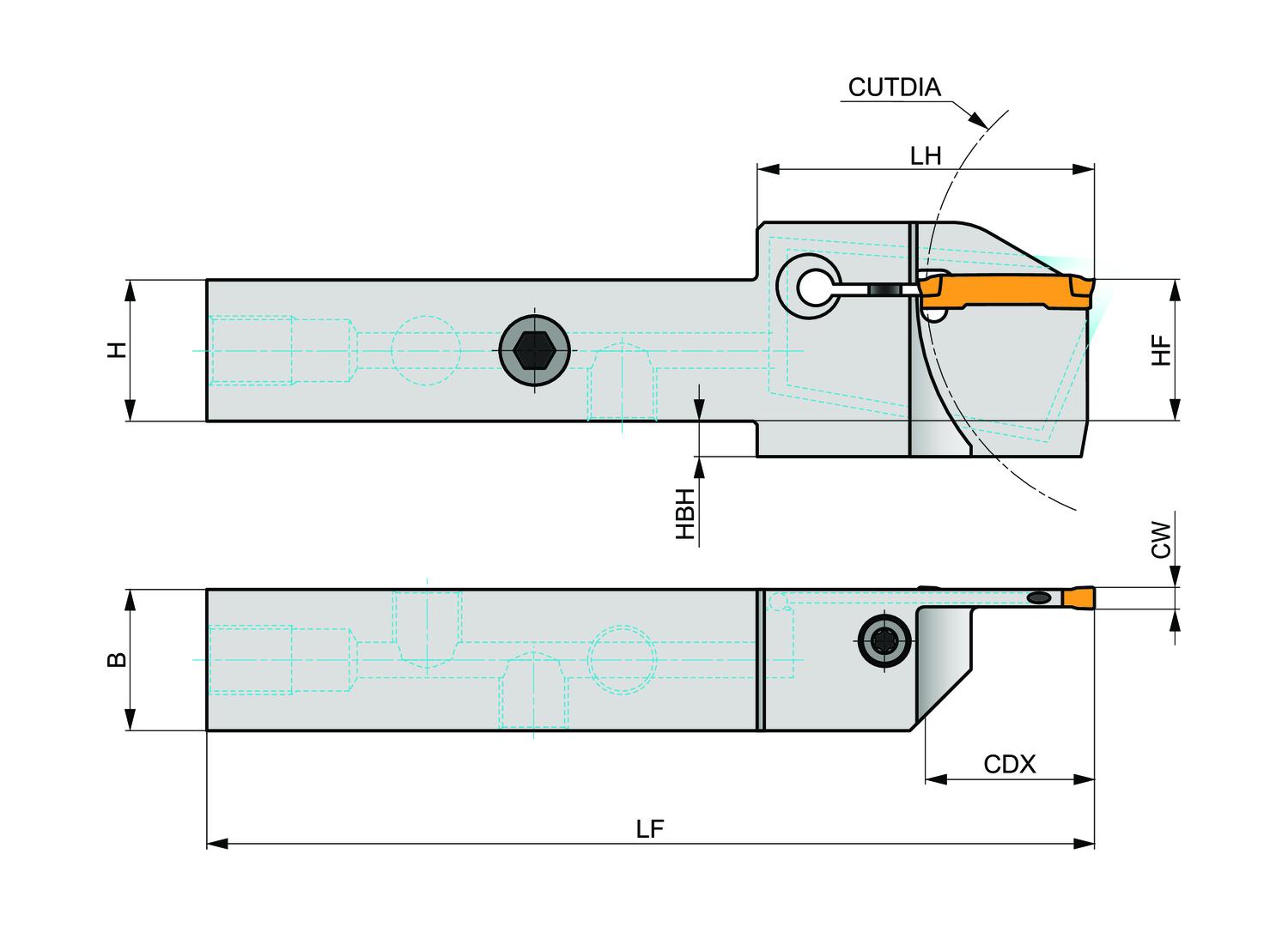

Functional height – millimeter (HF): 20 mm
Head bottom offset height – millimeter (HBH): 5 mm
Shank height – millimeter (H): 20 mm
Shank width – millimeter (B): 20 mm
Functional length – millimeter (LF): 125 mm
Cutting width – millimeter (CW): 3 mm
Cutting depth maximum – millimeter (CDX): 20 mm
Work piece parting diameter maximum – millimeter (CUTDIA): 80 mm
Net weight – grams: 329.9
Pocket Size: 3
