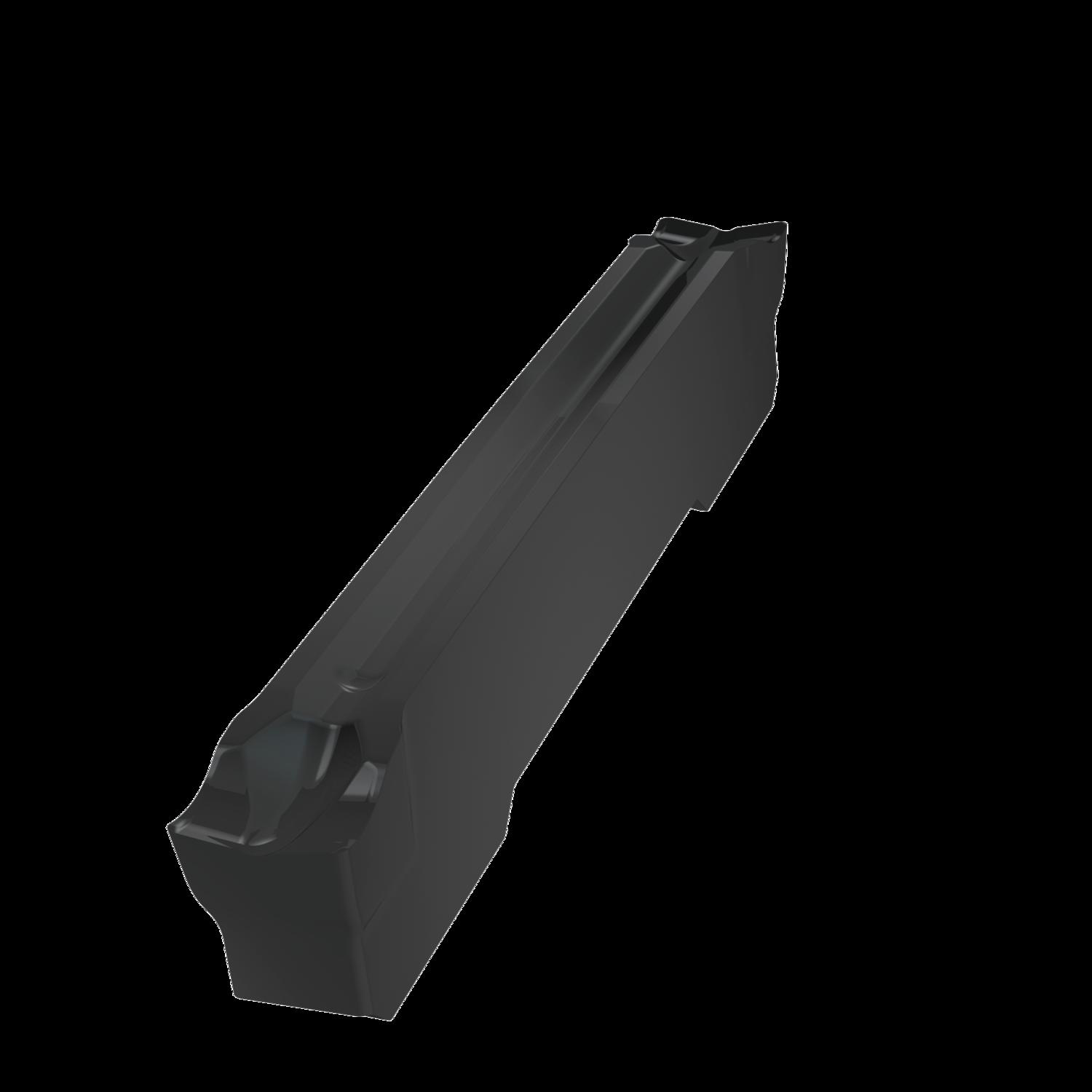

PRAMET GL3-D300M02-PM:T7325 Turning inserts for grooving

Product Code: GL3-D300M02-PM:T7325

$39.20$35.64 Ex. GST

Product Code: GL3-D300M02-PM:T7325 SKU GL3-D300M02-PM:T7325 Categories , ,
PRAMET GL3-D300M02-PM:T7325 Turning inserts for grooving

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Double ended parting and grooving insert, 25 mm long with a 3mm cutting width and 0.2mm corner radii, a cutting width tolerance of ±0.05. Grade T7325 MT-CVD coated functionally graded WC-Co carbide within ISO-grade range M10-M25 for machining of stainless-steel. PM geometry with highly positive rake, first choice for parting-off, and continuous to slightly interrupted cuts

Additional information

Weight 0.0381 kg
barcode
Additional Information

Description: Value
EAN number: 3603603675483
Product number (SAP): 80032086
Ordering code ANSI: GL3-D300M02-PM:T7325
Gross weight – grams: 6.15
Cutting width – millimeter (CW): 3 mm
Cutting width lower tolerance – millimeter (CWTOLL): -0.05 mm
Cutting width upper tolerance – millimeter (CWTOLU): 0.05 mm
Insert length – millimeter (INSL): 25 mm
Grade: T7325
Corner radius – millimeter (RE): 0.2 mm
Insert Design: GL. D
Chipbreaker manufacturer's designation (CBMD): PM
Primary Tool Lead Angle: Neutral
ISO: GL3-D300M02-PM:T7325
Pocket Size: 3

Brand

PRAMET
