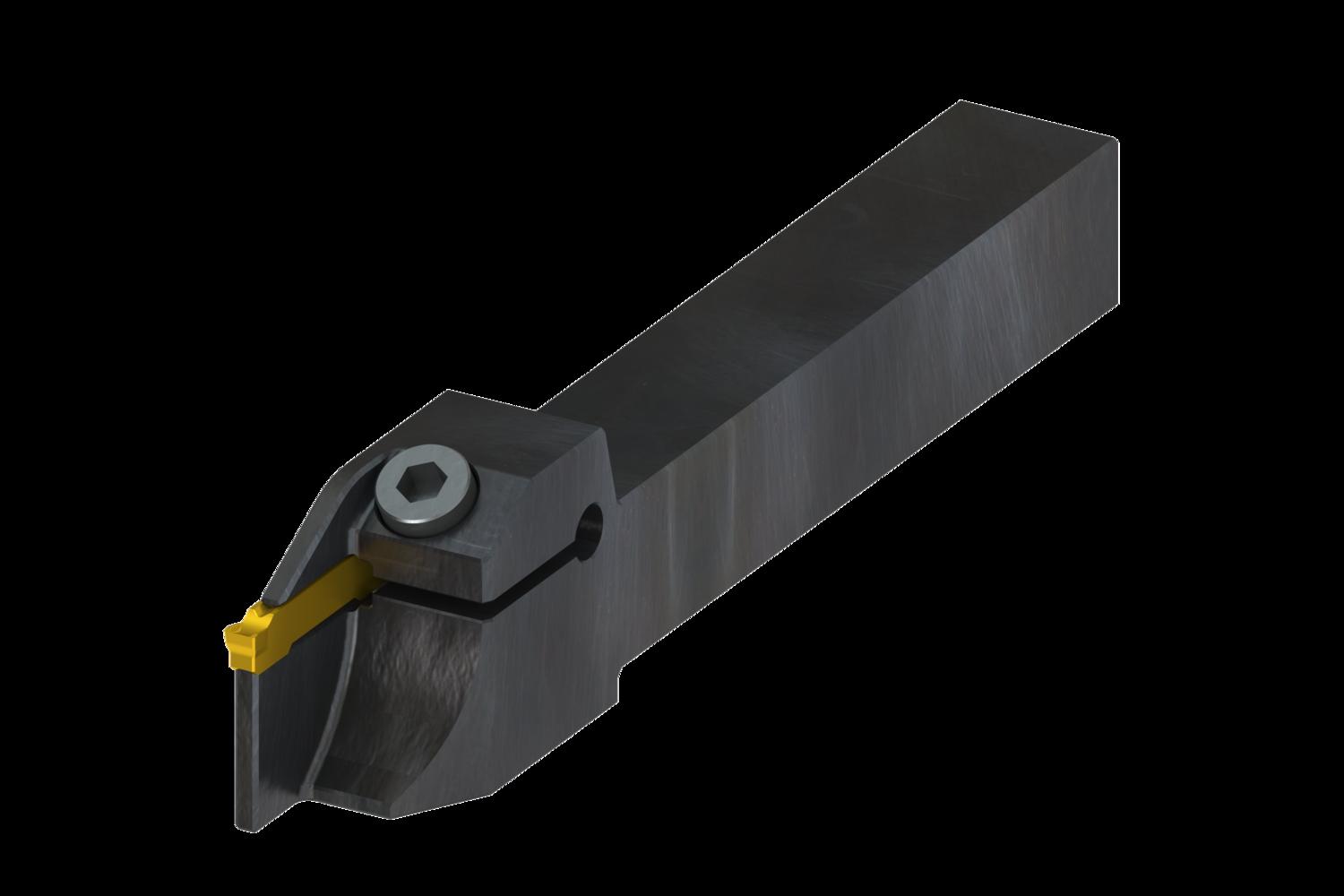

PRAMET GL3-S1616KFL-16-45 Turning holders for parting, grooving and copy turning

Description: Value
EAN number: 3603603675872
Product number (SAP): 86035507
Ordering code ANSI: GL3-S1616KFL-16-45
Gross weight – grams: 273.5
Functional height – millimeter (HF): 16 mm
Head bottom offset height – millimeter (HBH): 3 mm
Shank height – millimeter (H): 16 mm
Shank width – millimeter (B): 16 mm
Functional length – millimeter (LF): 125 mm
Cutting width – millimeter (CW): 3 mm
Cutting depth maximum – millimeter (CDX): 16 mm
Work piece parting diameter maximum – millimeter (CUTDIA): 45 mm
Net weight – grams: 231
Pocket Size: 3
ISO: GL3-S1616KFL-16-45
