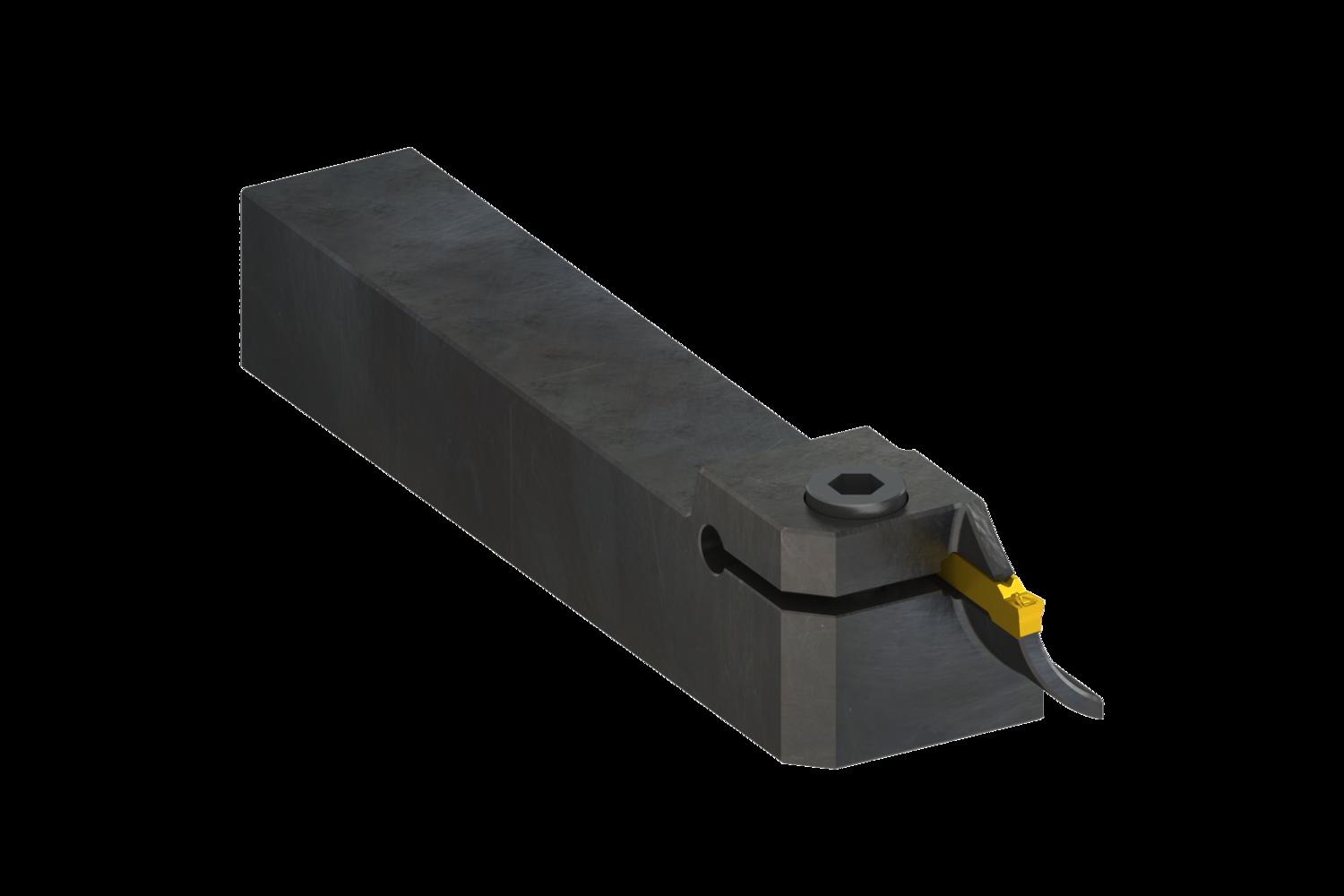

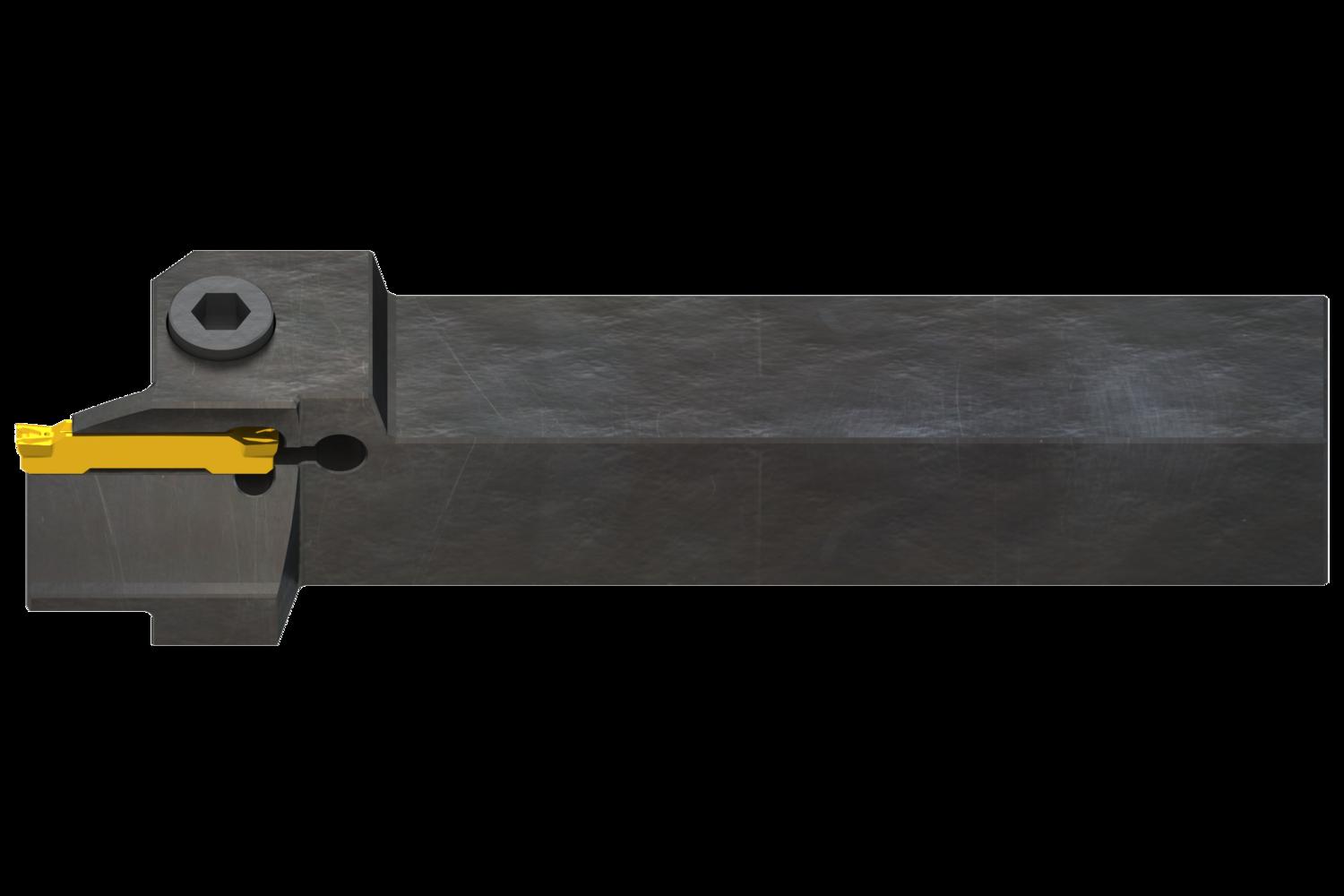

PRAMET GL3-S2020KFR-12-L035027 Turning holders for parting, grooving and copy turning

Description: Value

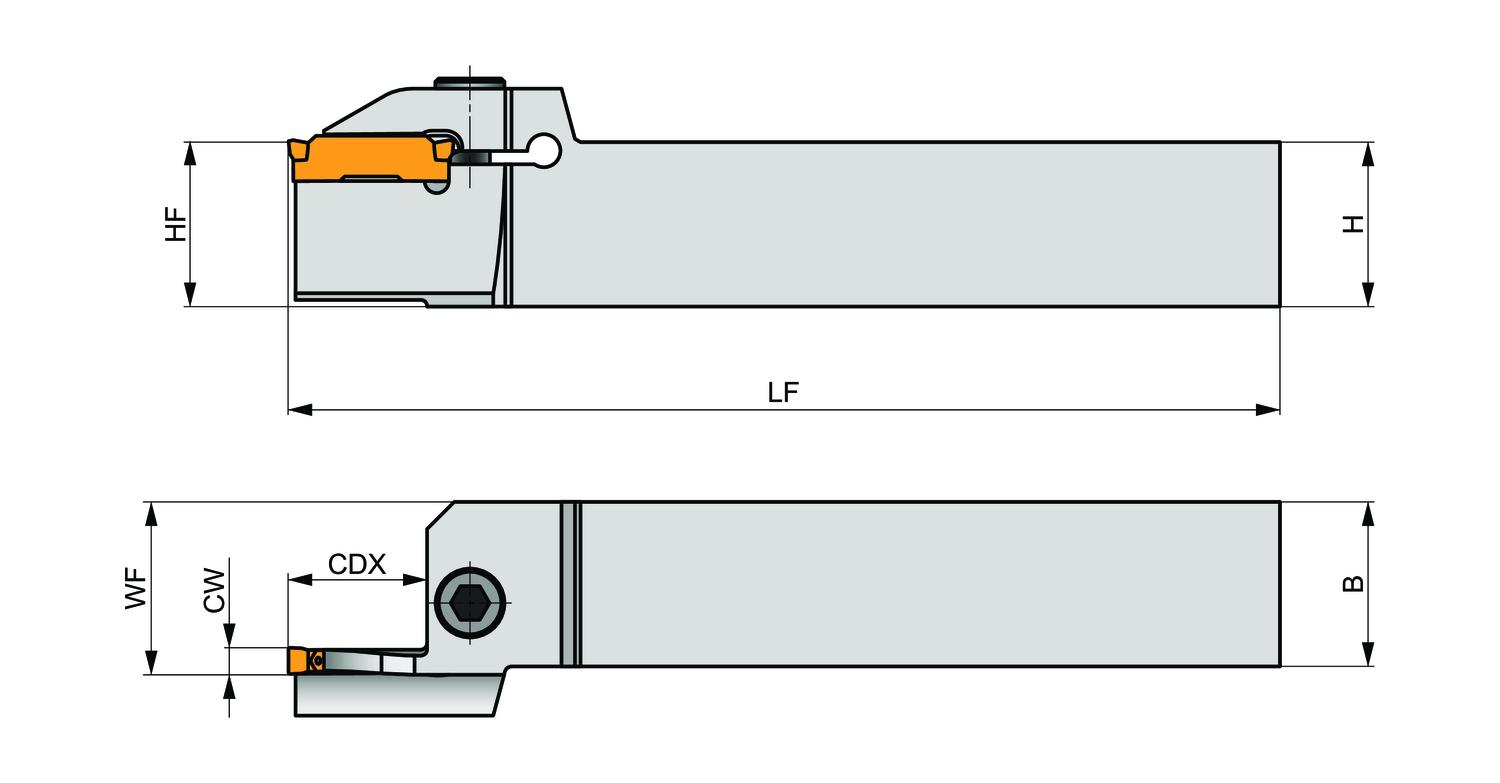

Functional height – millimeter (HF): 20 mm
Shank height – millimeter (H): 20 mm
Shank width – millimeter (B): 20 mm
Functional width – millimeter (WF): 20.5 mm
Functional length – millimeter (LF): 125 mm
Cutting width – millimeter (CW): 3 mm

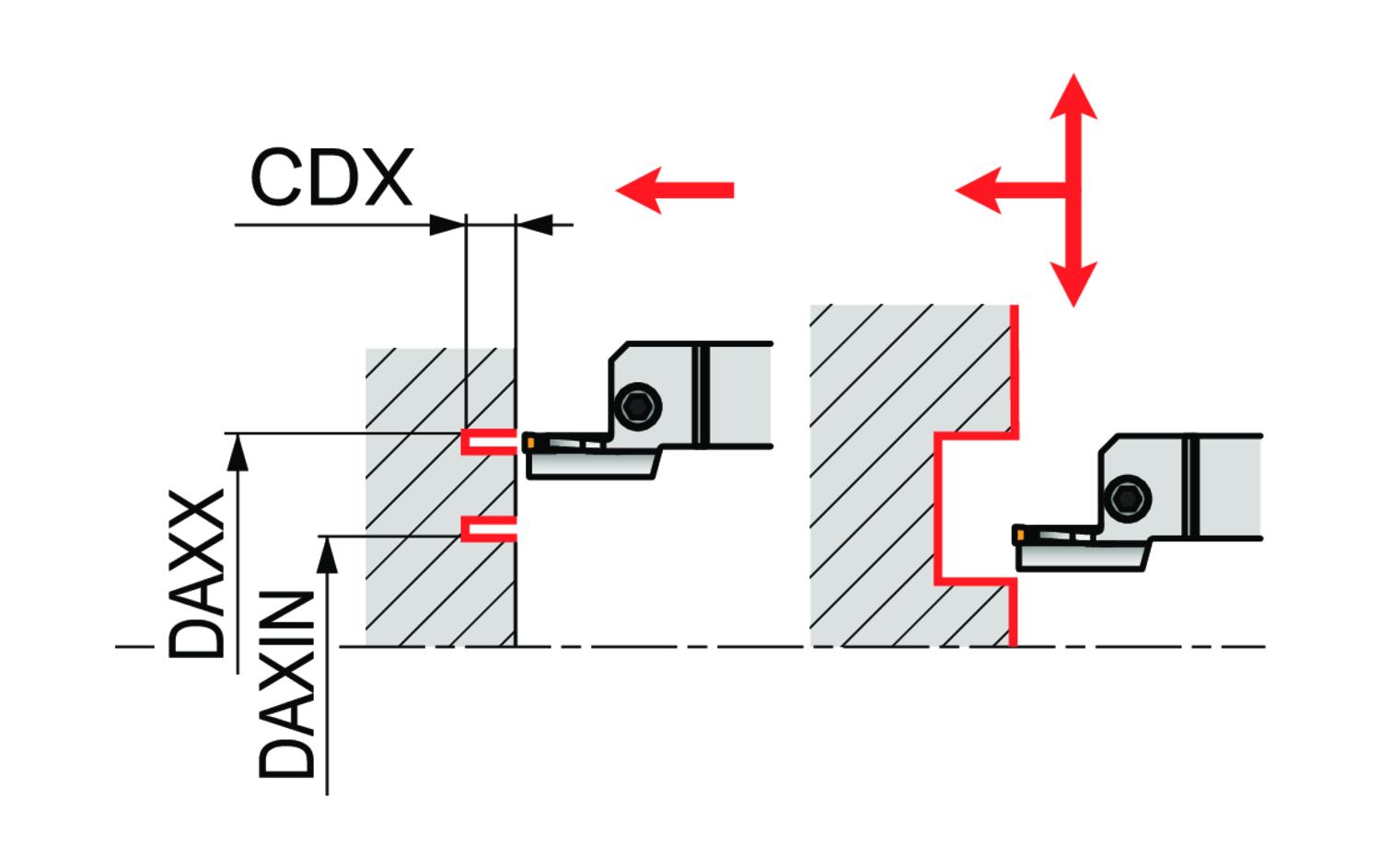

Cutting depth maximum – millimeter (CDX): 12 mm
Maximum axial groove outside diameter – millimeter (DAXX): 35 mm
Minimum axial groove inside diameter – millimeter (DAXIN): 27 mm
Pocket Size: 3
