PRAMET GL3-S2525MGR-15-R044033 Turning holders for parting, grooving and copy turning

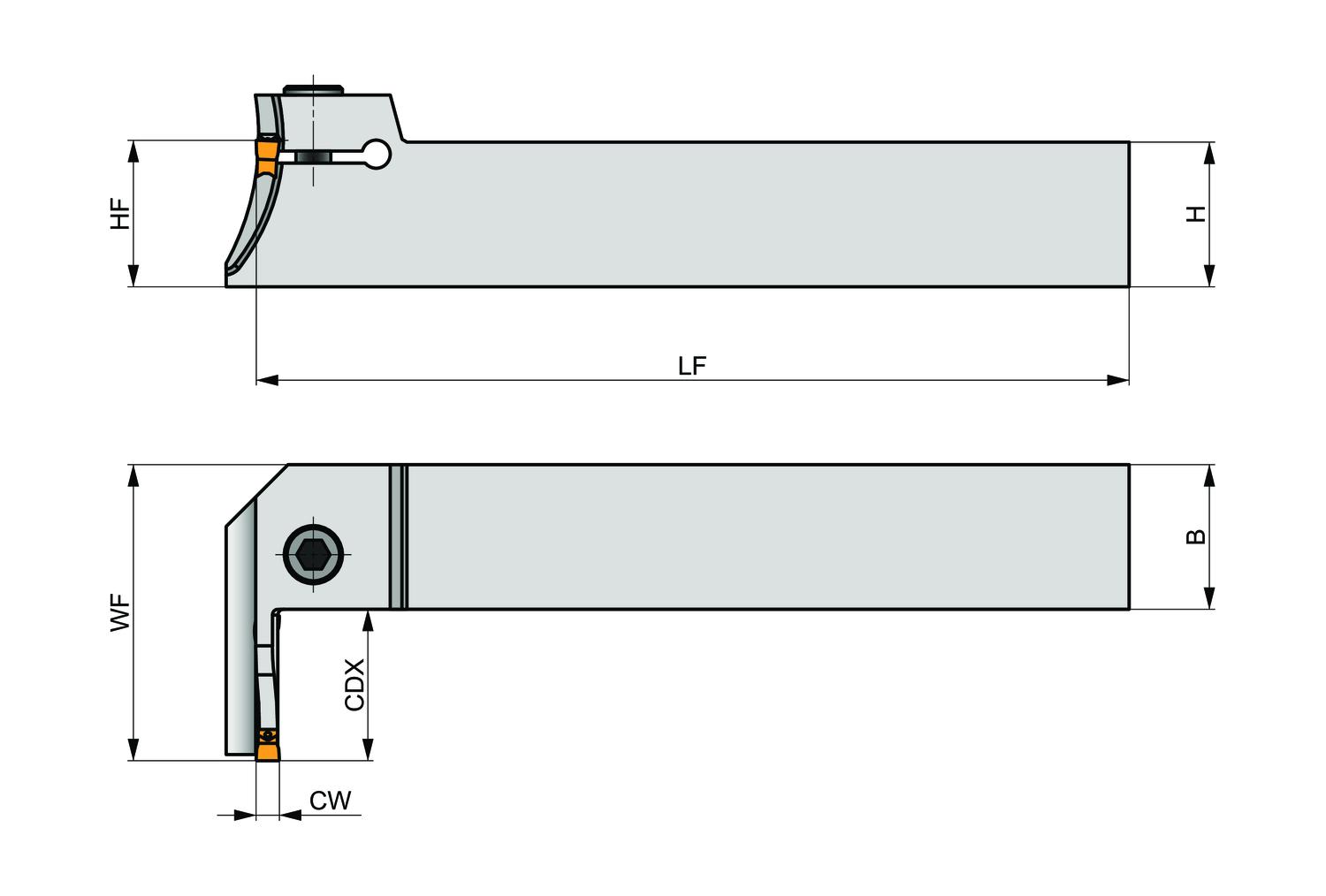

Description: Value
Functional height – millimeter (HF): 25 mm
Shank height – millimeter (H): 25 mm
Shank width – millimeter (B): 25 mm
Functional width – millimeter (WF): 40.9 mm
Functional length – millimeter (LF): 150 mm
Cutting width – millimeter (CW): 3 mm
Cutting depth maximum – millimeter (CDX): 15 mm
Maximum axial groove outside diameter – millimeter (DAXX): 44 mm
Minimum axial groove inside diameter – millimeter (DAXIN): 33 mm
Pocket Size: 3
