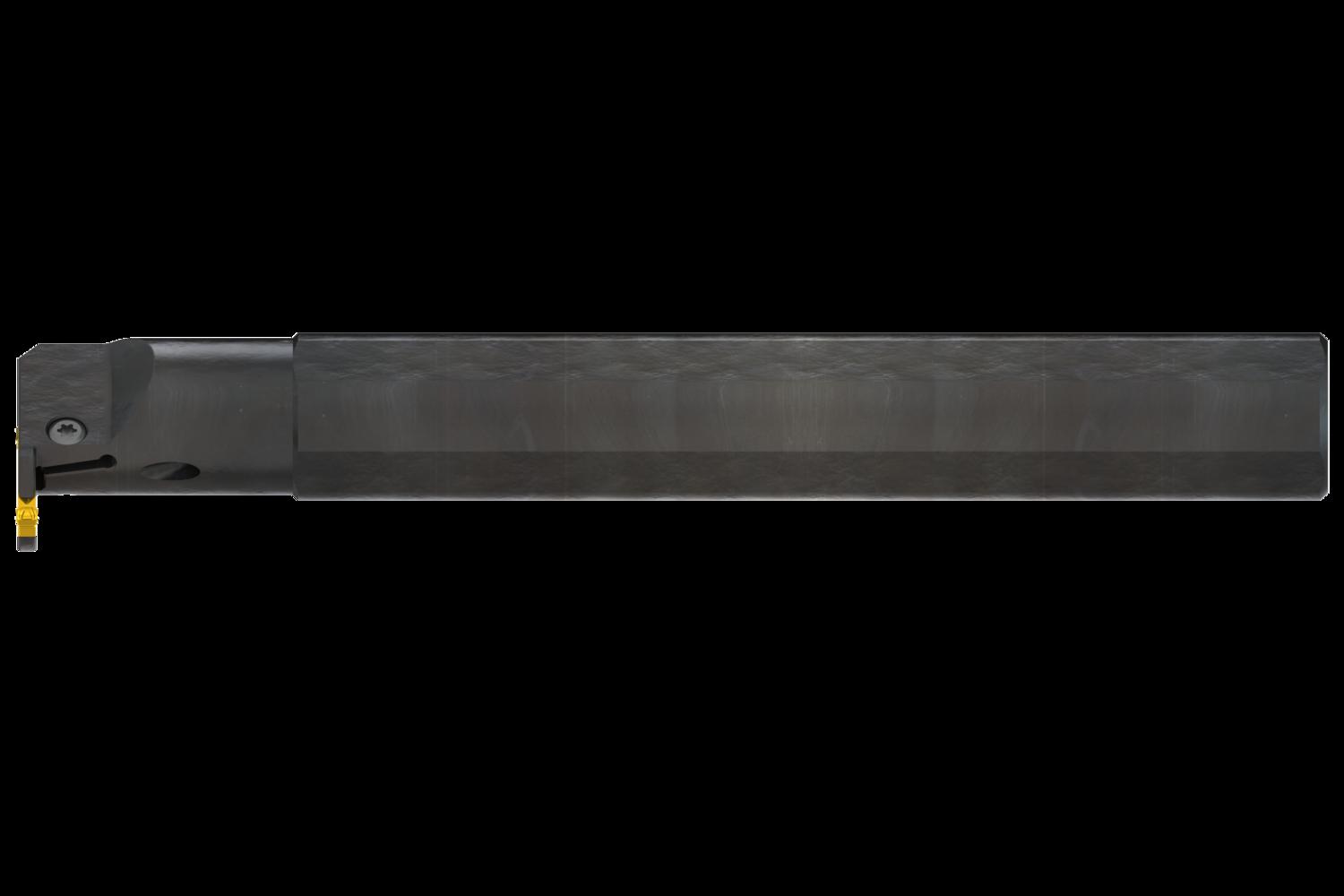

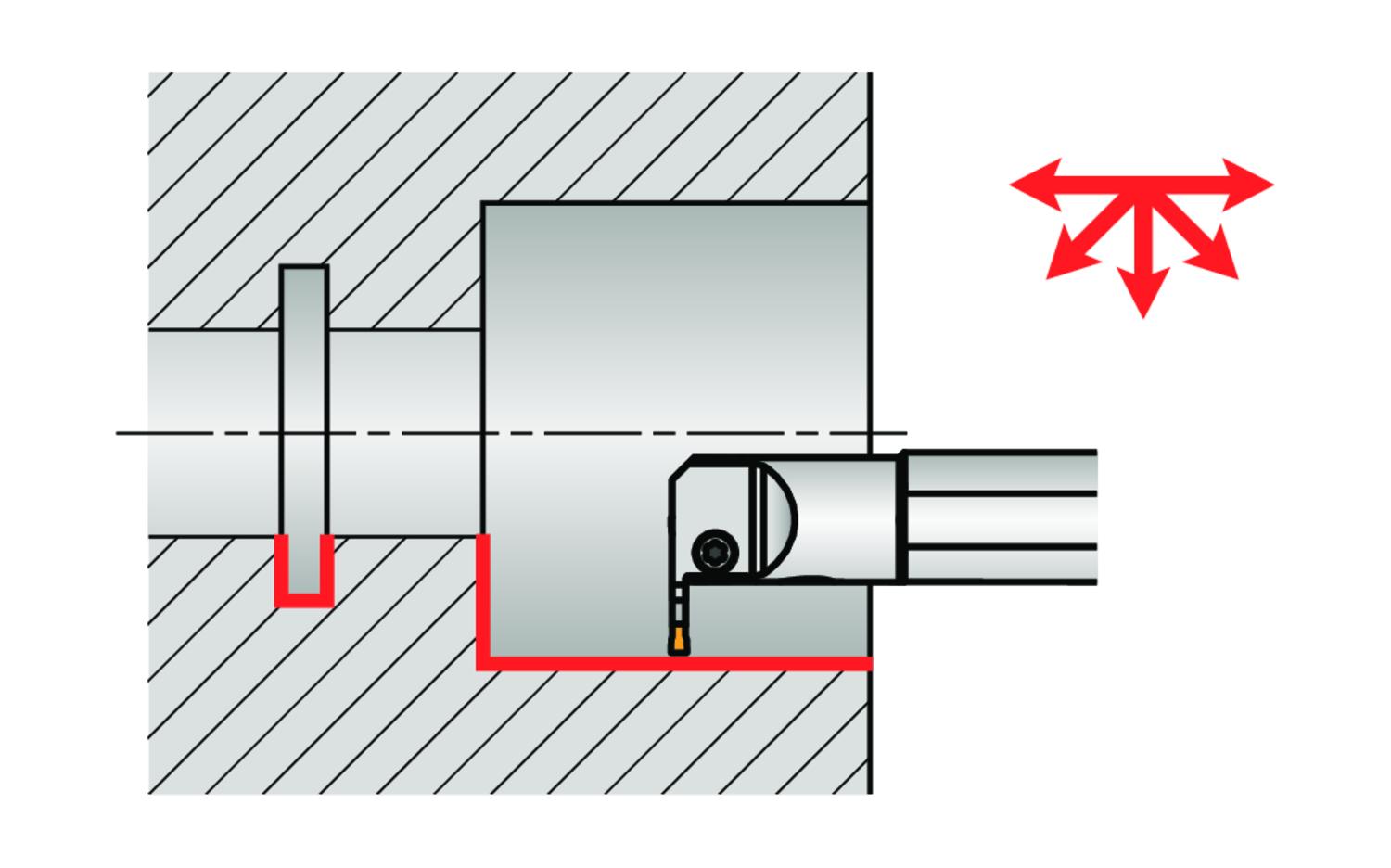

PRAMET GL4-A32SGR-12-45 Turning holders for parting, grooving and copy turning

Description: Value
Product name: GL4-A32SGR-12-45

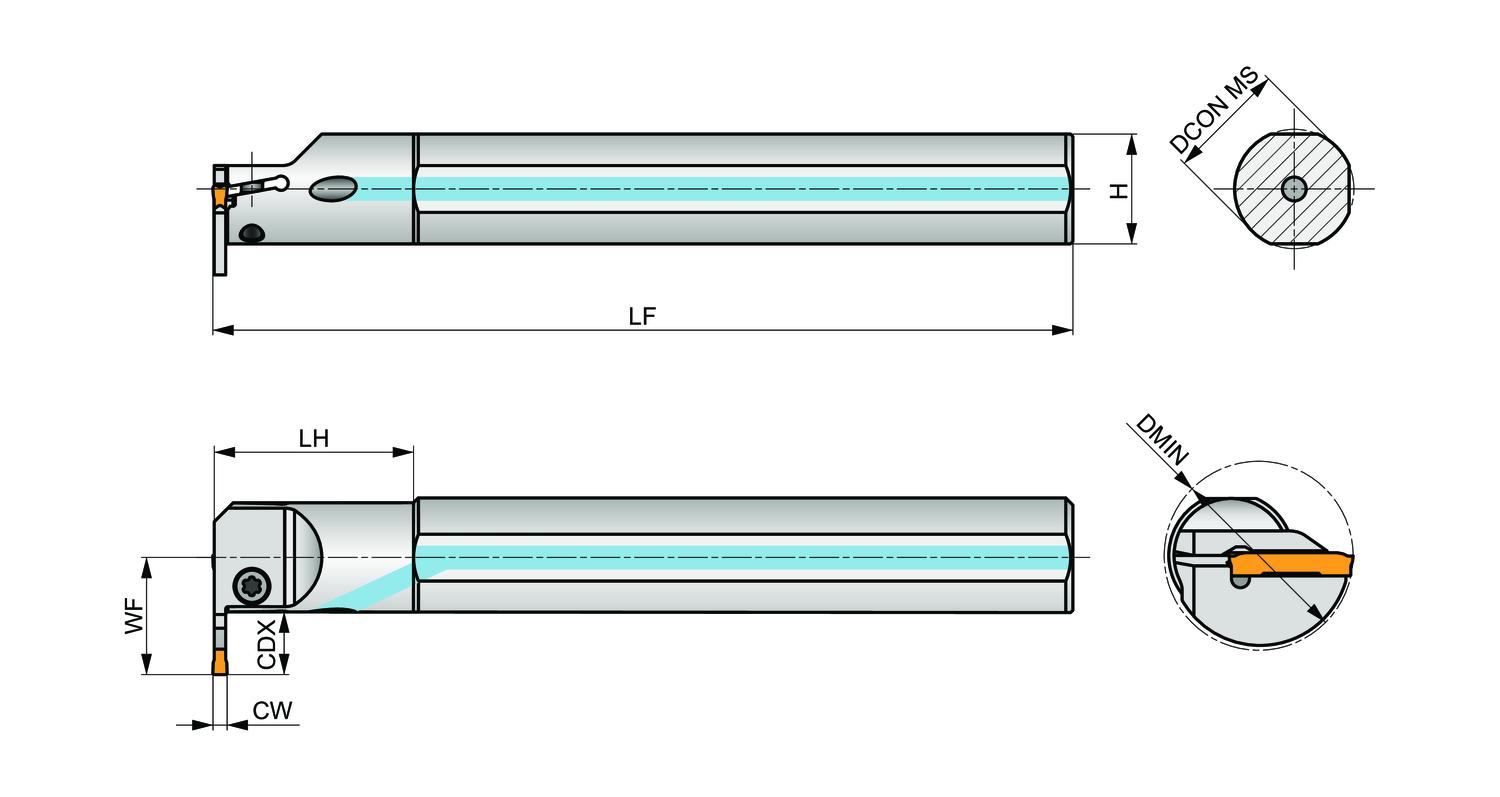

Connection diameter – millimeter (DCON MS): 32 mm
Shank height – millimeter (H): 30 mm
Functional width – millimeter (WF): 28.1 mm
Functional length – millimeter (LF): 250 mm
Head length – millimeter (LH): 53 mm
Cutting width – millimeter (CW): 4 mm
Cutting depth maximum – millimeter (CDX): 12 mm
Minimum bore diameter – millimeter (DMIN): 45 mm
Net weight – grams: 1390
Pocket Size: 4
