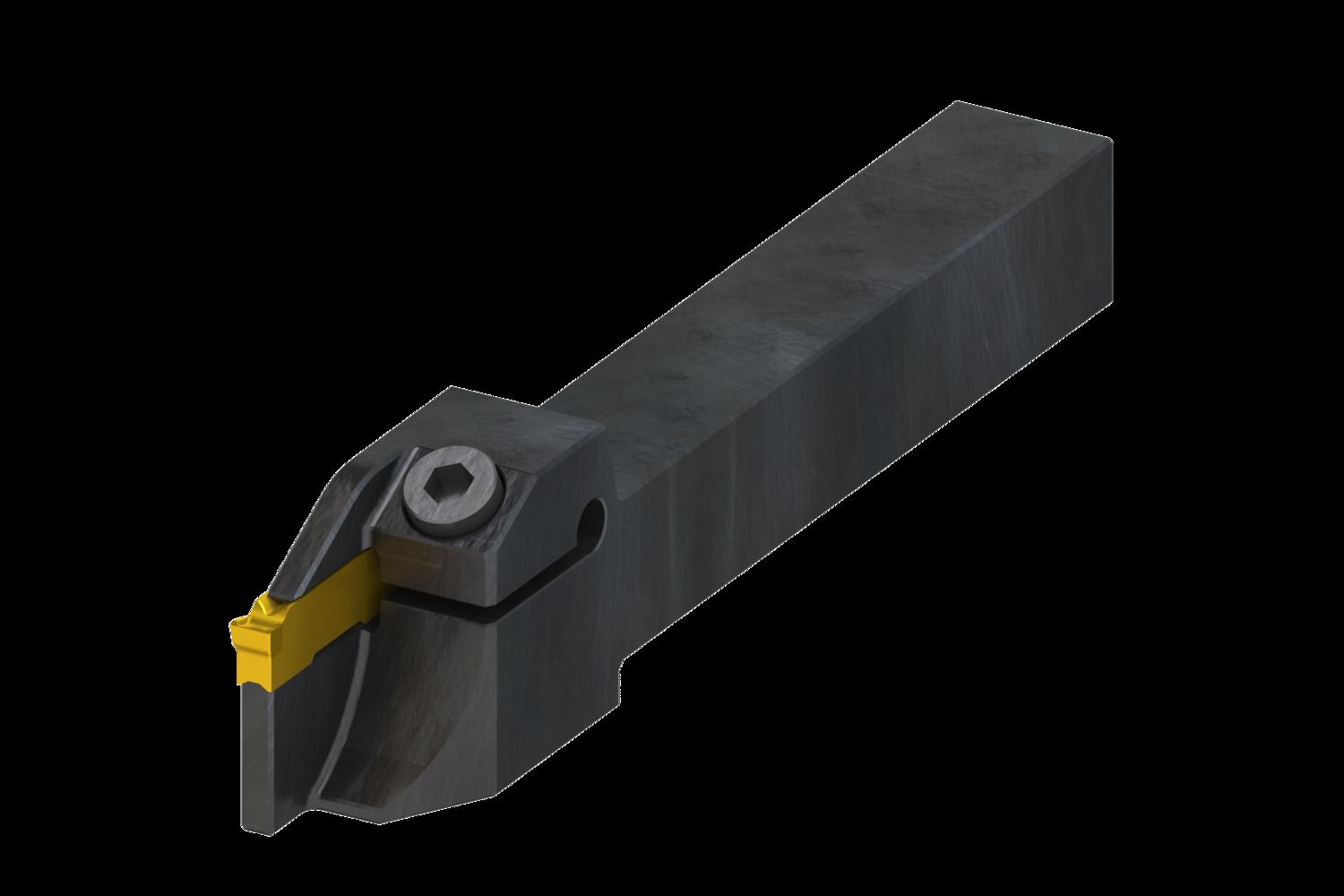

PRAMET GL4-S1616KFL-16-45 Turning holders for parting, grooving and copy turning

Description: Value
EAN number: 3603603816510
Product number (SAP): 86037405
Ordering code ANSI: GL4-S1616KFL-16-45
Gross weight – grams: 278.5
Functional height – millimeter (HF): 16 mm
Head bottom offset height – millimeter (HBH): 4 mm
Shank height – millimeter (H): 16 mm
Shank width – millimeter (B): 16 mm
Functional length – millimeter (LF): 125 mm
Cutting width – millimeter (CW): 4 mm
Cutting depth maximum – millimeter (CDX): 16 mm
Work piece parting diameter maximum – millimeter (CUTDIA): 45 mm
Net weight – grams: 243
Pocket Size: 4
ISO: GL4-S1616KFL-16-45
