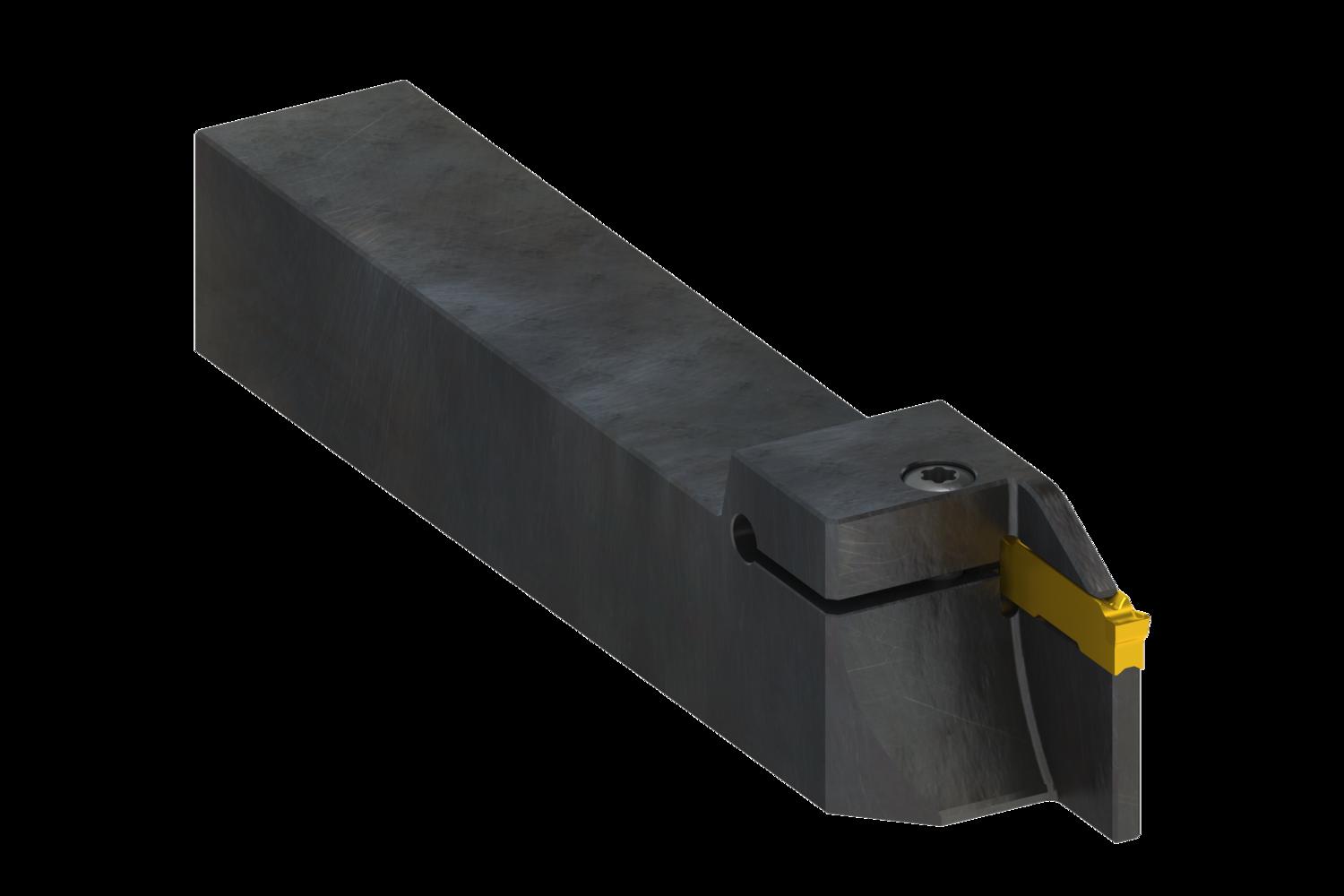

PRAMET GL4-S2525MFR-20-80 Turning holders for parting, grooving and copy turning

Product Code: GL4-S2525MFR-20-80

$268.52$244.11 Ex. GST

Product Code: GL4-S2525MFR-20-80 SKU GL4-S2525MFR-20-80 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Top clamp grooving tool for holding a 25mm long double ended insert with 4mm cutting width (designation GL4-D… ), right handed with insert parallel to the shank for a maximum parting diameter of 80mm, shank height 25mm, width 25mm and tool length 150mm for multi-directional copy turning, shallow and deep radial grooving, radial groove turning, parting-off and tube parting-off

Additional information

Weight 0.2607 kg
barcode
Additional Information

Description: Value
EAN number: 3603603676008
Product number (SAP): 86035520
Ordering code ANSI: GL4-S2525MFR-20-80
Gross weight – grams: 702.5
Functional height – millimeter (HF): 25 mm
Shank height – millimeter (H): 25 mm
Shank width – millimeter (B): 25 mm
Functional length – millimeter (LF): 150 mm
Cutting width – millimeter (CW): 4 mm
Cutting depth maximum – millimeter (CDX): 20 mm
Work piece parting diameter maximum – millimeter (CUTDIA): 80 mm
Net weight – grams: 680
Pocket Size: 4
ISO: GL4-S2525MFR-20-80

Brand

PRAMET
