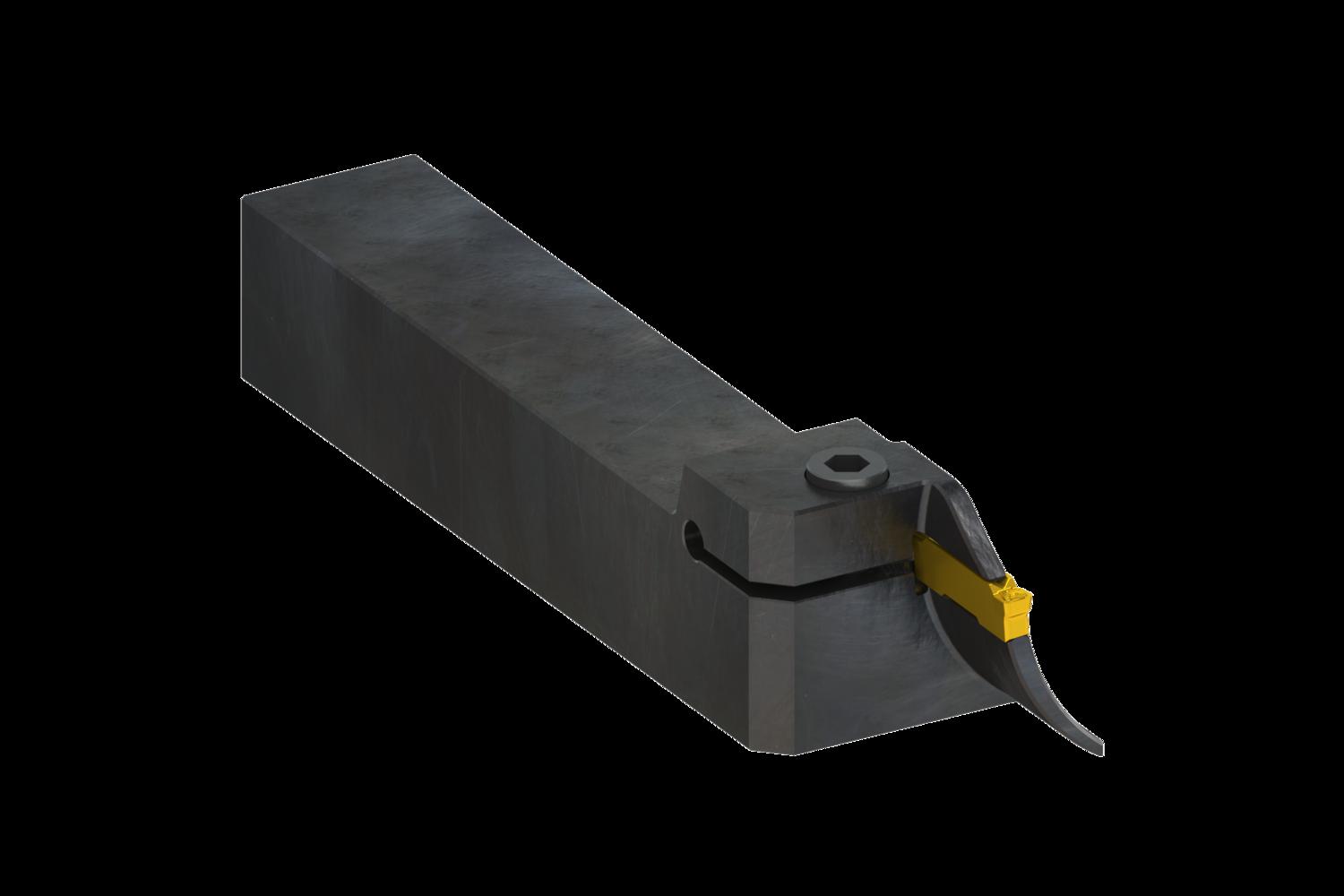

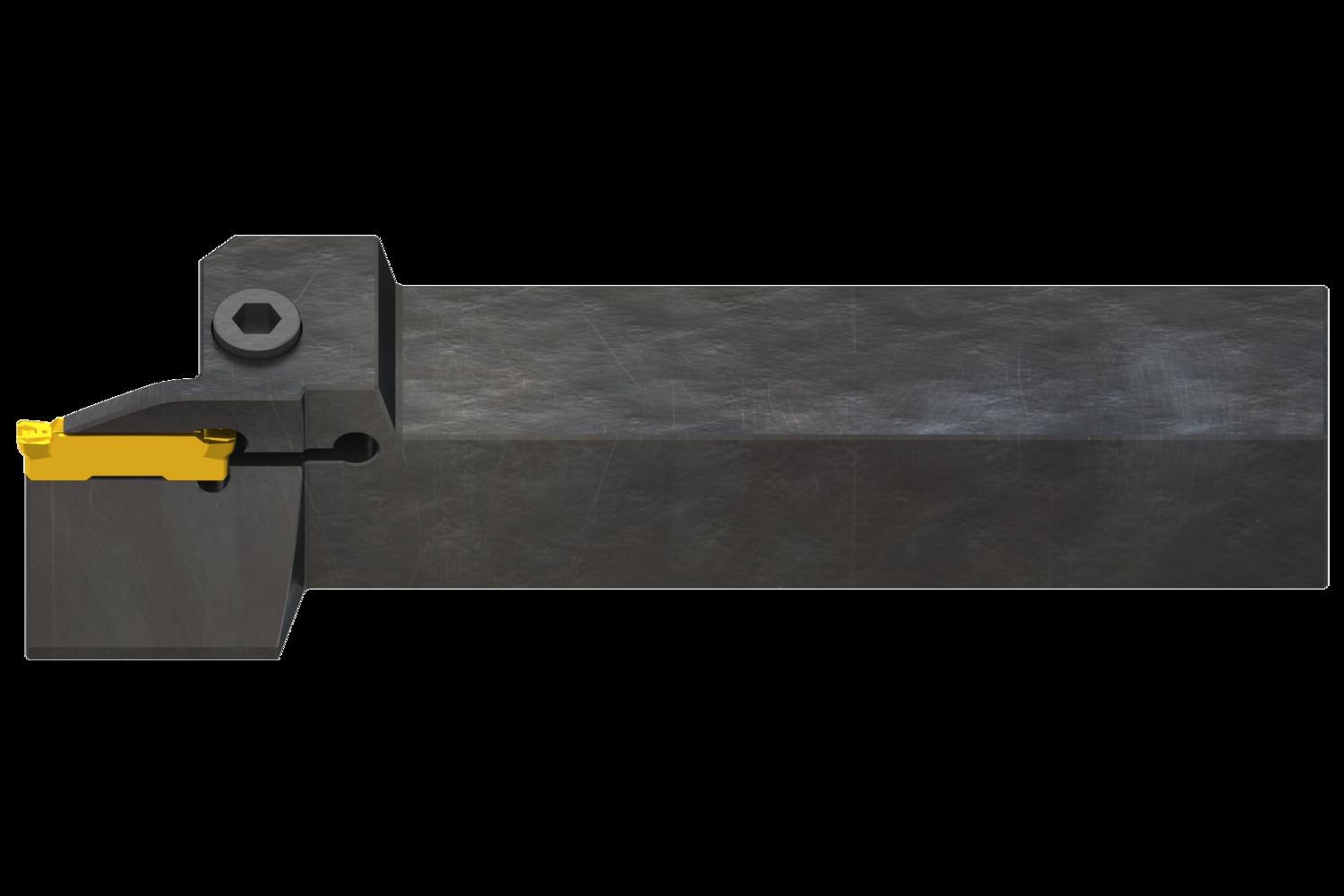

PRAMET GL4-S2525MFR-20-L065050 Turning holders for parting, grooving and copy turning

Description: Value

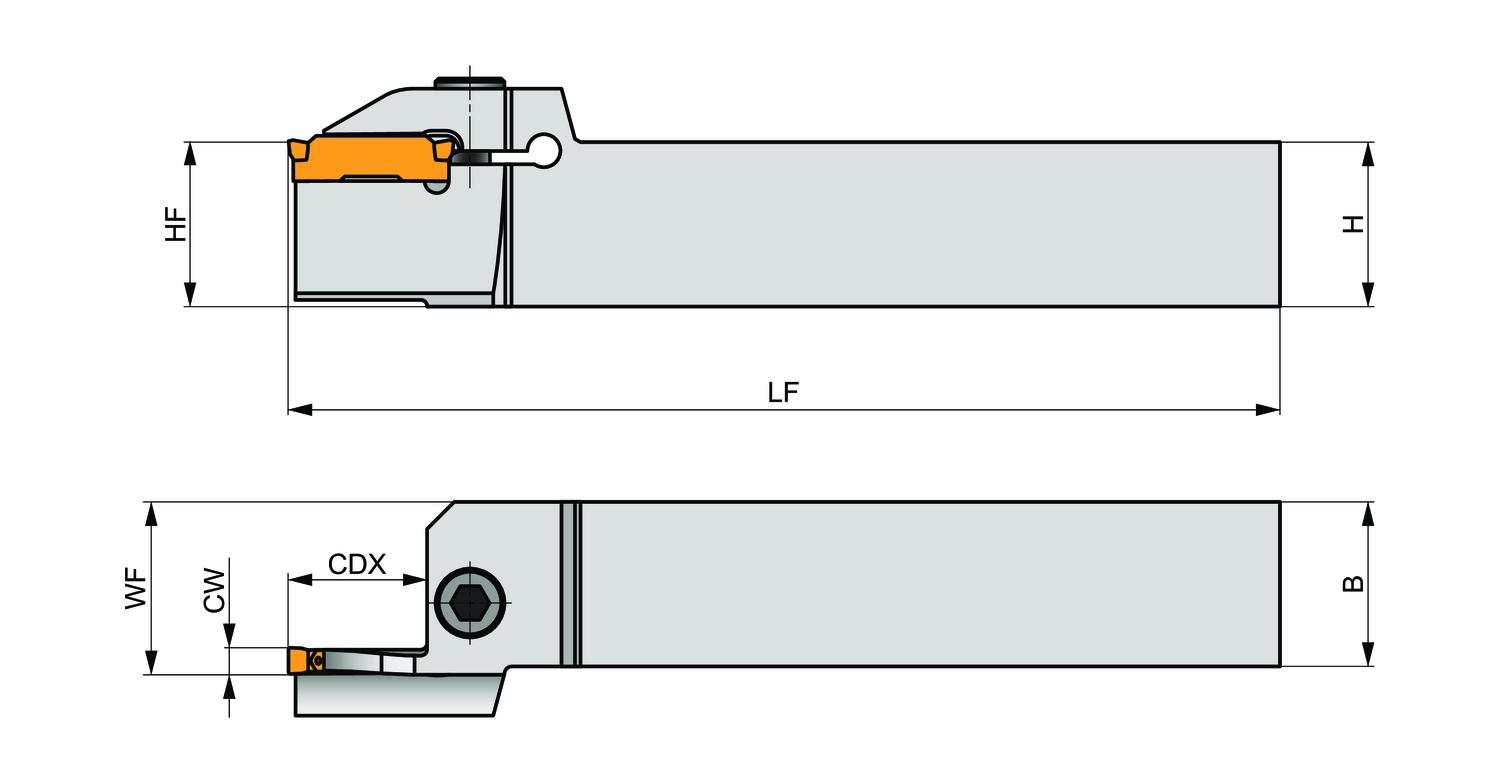

Functional height – millimeter (HF): 25 mm
Shank height – millimeter (H): 25 mm
Shank width – millimeter (B): 25 mm
Functional width – millimeter (WF): 26 mm
Functional length – millimeter (LF): 150 mm
Cutting width – millimeter (CW): 4 mm

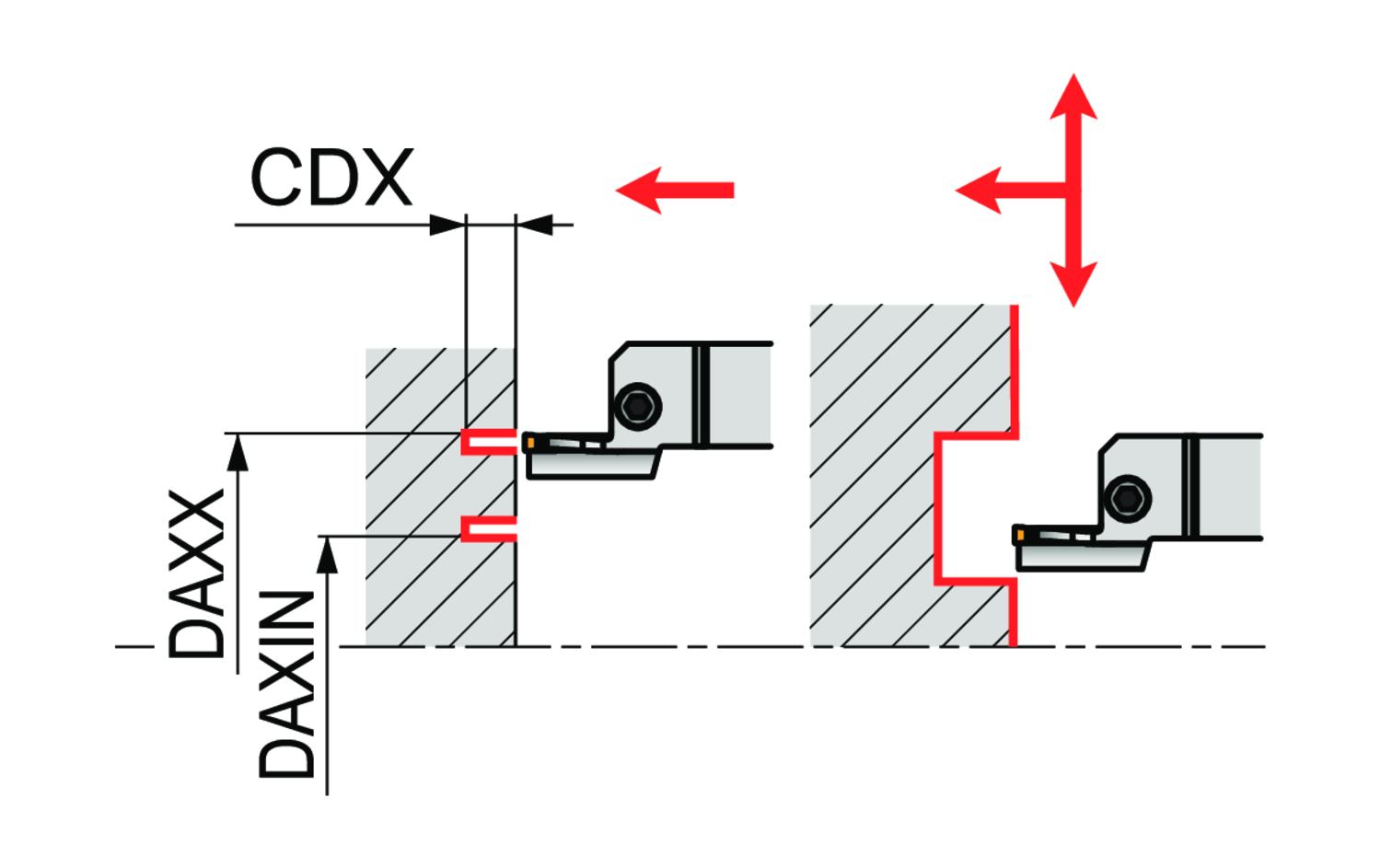

Cutting depth maximum – millimeter (CDX): 20 mm
Maximum axial groove outside diameter – millimeter (DAXX): 65 mm
Minimum axial groove inside diameter – millimeter (DAXIN): 50 mm
Pocket Size: 4
