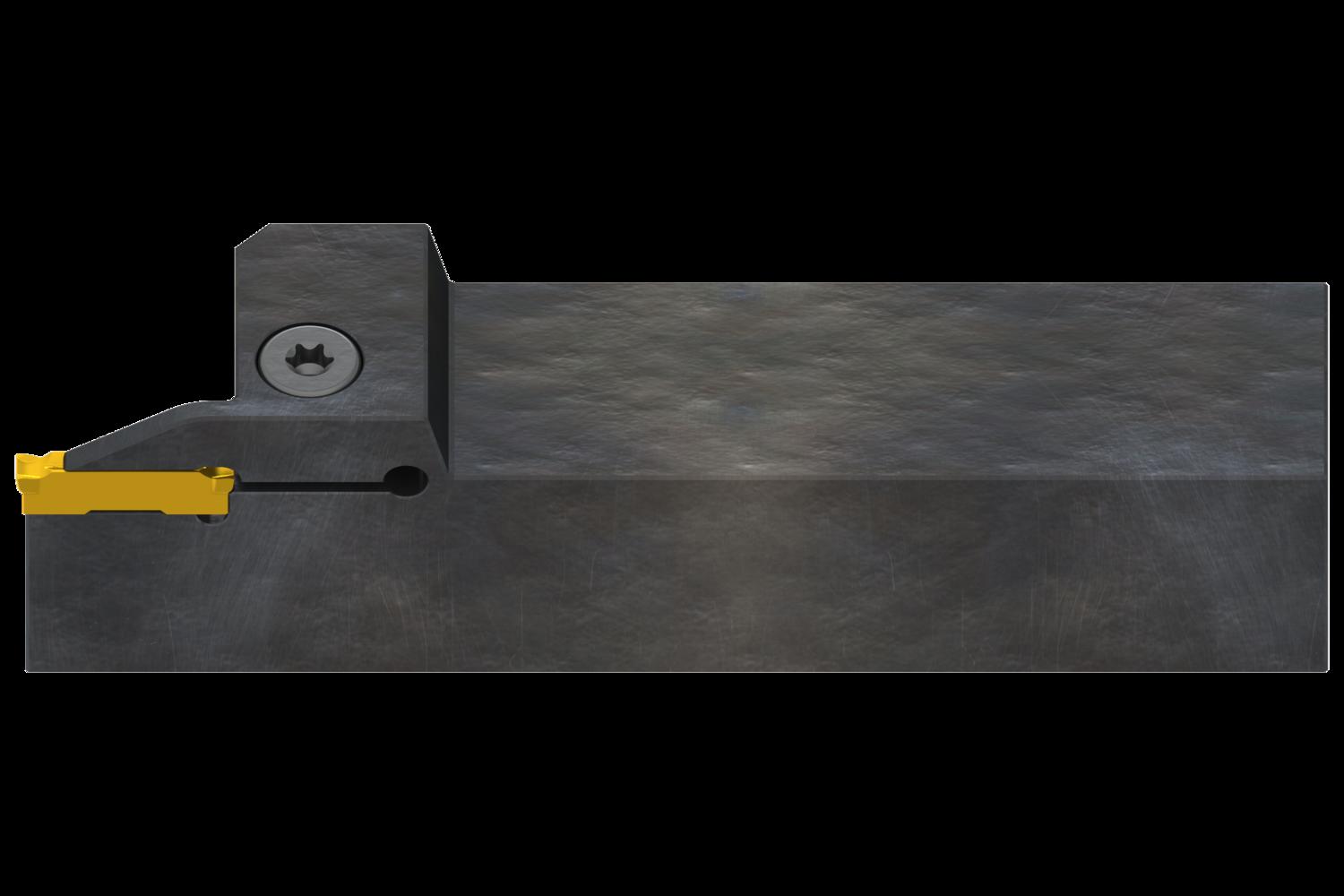

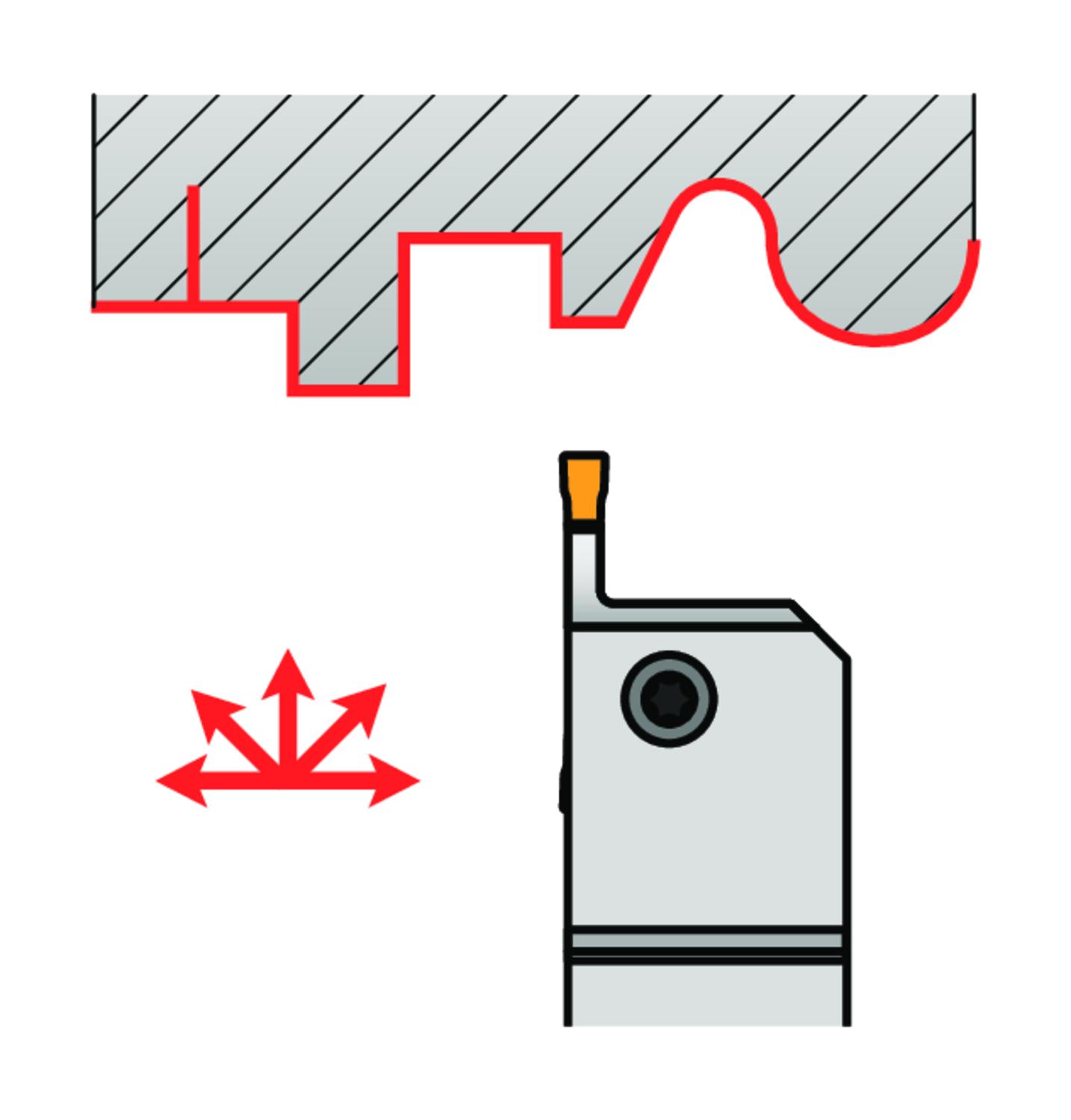

PRAMET GL4-S3232MFR-24 Turning holders for parting, grooving and copy turning

Description: Value
EAN number: 3603603947214
Product number (SAP): 86039508
Ordering code ANSI: GL4-S3232MFR-24
Gross weight – grams: 1099

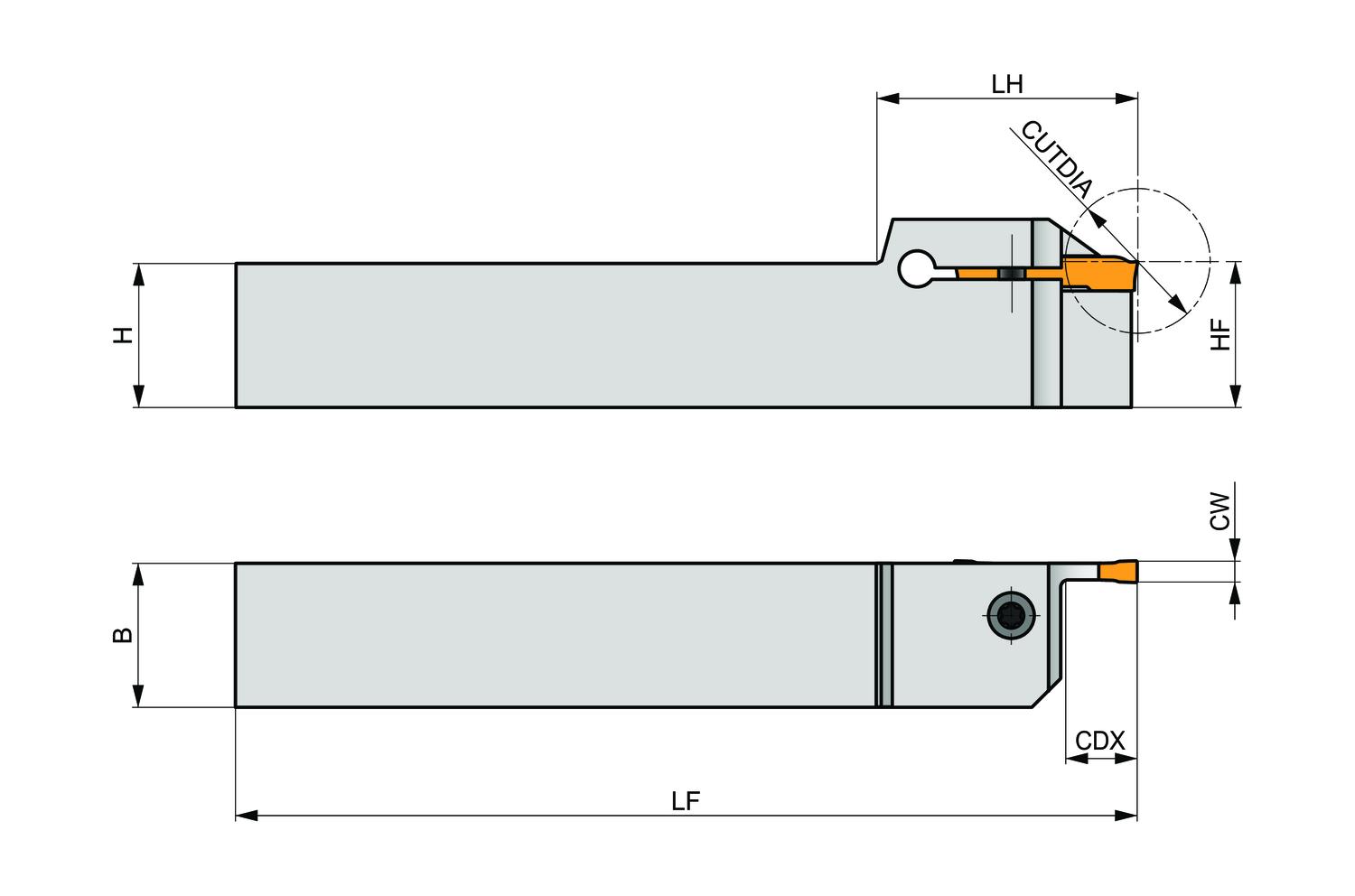

Functional height – millimeter (HF): 32 mm
Shank height – millimeter (H): 32 mm
Shank width – millimeter (B): 32 mm
Functional length – millimeter (LF): 150 mm
Cutting width – millimeter (CW): 4 mm
Cutting depth maximum – millimeter (CDX): 24 mm
Work piece parting diameter maximum – millimeter (CUTDIA): 48 mm
Net weight – grams: 1035.2
Pocket Size: 4
ISO: GL4-S3232MFR-24
